Solr Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed Solr instance using the solr-alerts Helm chart. This chart also bundles a Grafana dashboard that it imports automatically through a post-install Job — no separate dashboard chart is required.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the alert-solr namespace:

  $ kubectl create ns alert-solr
  namespace/alert-solr created


• Solr requires a reference to a KubeDB ZooKeeper cluster for coordination — deploy one first (see below).

• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• You will also need a Grafana API key / token with Editor permission so the chart’s dashboard-import Job can push the dashboard. See Step 1 below.

Note: YAML files used in this tutorial are stored in docs/examples/solr folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBSolrPhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_solr_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBSolrPhaseNotReady/KubeDBSolrPhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

• KubeDB deploys Solr with a metrics-exporter sidecar (container exporter) that exposes Solr’s own metrics (solr_metrics_*, solr_collections_*).
• ServiceMonitor (named {solr-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the exporter every 10 seconds.
• PrometheusRule is created by the solr-alerts chart and contains alert definitions grouped by concern: database health and provisioner.
• Dashboard-import Job — when grafana.enabled is true, the chart also creates a one-shot Job that POSTs a bundled dashboard JSON straight to your Grafana instance’s /api/dashboards/import endpoint.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy the ZooKeeper Coordinator

Solr coordinates via a KubeDB ZooKeeper cluster, so deploy that first.

apiVersion: kubedb.com/v1alpha2
kind: ZooKeeper
metadata:
  name: zoo
  namespace: alert-solr
spec:
  version: 3.8.3
  replicas: 3
  deletionPolicy: WipeOut
  adminServerPort: 8080
  storage:
    resources:
      requests:
        storage: "100Mi"
    storageClassName: local-path
    accessModes:
      - ReadWriteOnce

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/solr/monitoring/zookeeper-alert-demo.yaml
zookeeper.kubedb.com/zoo created

$ kubectl get zookeeper -n alert-solr zoo
NAME   VERSION   STATUS   AGE
zoo    3.8.3     Ready    3m

Deploy Solr with Monitoring Enabled

apiVersion: kubedb.com/v1alpha2
kind: Solr
metadata:
  name: solr-alert
  namespace: alert-solr
spec:
  version: 9.8.0
  replicas: 3
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s
  solrModules:
  - s3-repository
  - gcs-repository
  - prometheus-exporter
  zookeeperRef:
    name: zoo
    namespace: alert-solr
  storage:
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
    storageClassName: local-path
  deletionPolicy: WipeOut

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/solr/monitoring/solr-alert-demo.yaml
solr.kubedb.com/solr-alert created

Wait for the database to go into Ready state.

$ kubectl get solr -n alert-solr solr-alert
NAME         VERSION   STATUS   AGE
solr-alert   9.8.0     Ready    5m

KubeDB brings up 3 pods, one per Solr node:

$ kubectl get pods -n alert-solr
NAME           READY   STATUS    RESTARTS   AGE
solr-alert-0   1/1     Running   0          5m
solr-alert-1   1/1     Running   0          5m
solr-alert-2   1/1     Running   0          5m

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-solr --selector="app.kubernetes.io/instance=solr-alert"
NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
solr-alert         ClusterIP   10.43.219.25    <none>        8983/TCP   5m
solr-alert-pods    ClusterIP   None            <none>        8983/TCP   5m
solr-alert-stats   ClusterIP   10.43.163.252   <none>        9854/TCP   5m

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-solr
NAME               AGE
solr-alert-stats   5m

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n alert-solr solr-alert-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Create a Grafana API Key

The chart’s dashboard-import Job authenticates to Grafana with a bearer token, so create one first.

• Grafana 9+: Administration → Service accounts → Add service account → role Editor → Add token. Copy the token.

• Grafana 8.x and earlier (no Service Accounts UI, e.g. the bundled kube-prometheus-stack Grafana 7.5.5): use the legacy API Keys endpoint instead:

  # Port-forward Grafana
  $ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80&

  # Retrieve the admin password
  $ kubectl get secret -n monitoring prometheus-grafana \
      -o jsonpath='{.data.admin-password}' | base64 -d && echo

  # Create an API key with Editor role
  $ curl -s -X POST -H "Content-Type: application/json" \
      -u admin:<grafana_password> \
      http://localhost:3000/api/auth/keys \
      -d '{"name":"solr-alerts-demo","role":"Editor"}'
  # Note the returned "key"

  # Stop the port-forward
  $ kill %1


Either way, you end up with a bearer token to use as grafana.apikey below.

Step 2 — Install solr-alerts

Why the Helm release name matters

The chart derives the PrometheusRule name and scopes every PromQL expression from the Helm release name — so the release name must match the Solr object’s name (solr-alert).

Install

$ helm upgrade -i solr-alert appscode/solr-alerts \
    -n alert-solr \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set grafana.enabled=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<token-from-above>" \
    --set grafana.jobName=solr-alert-stats \
    --set form.alert.appSuffix=sl-grafana-demo

To install alerts only, without the dashboard, omit the grafana.* flags (or set --set grafana.enabled=false).

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-solr
NAME                AGE
solr-alert     30s

$ kubectl get prometheusrule -n alert-solr solr-alert \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Verify the dashboard-import Job

$ kubectl get job -n alert-solr
NAME                  STATUS     COMPLETIONS   AGE
solr-alert-post-job   Complete   1/1           17s

$ kubectl logs -n alert-solr job/solr-alert-post-job
{"pluginId":"","title":"kubedb.com / Solr / alert-solr / solr-alert","imported":true, ...}

A "imported":true response confirms the dashboard kubedb.com / Solr / alert-solr / solr-alert now exists in Grafana.

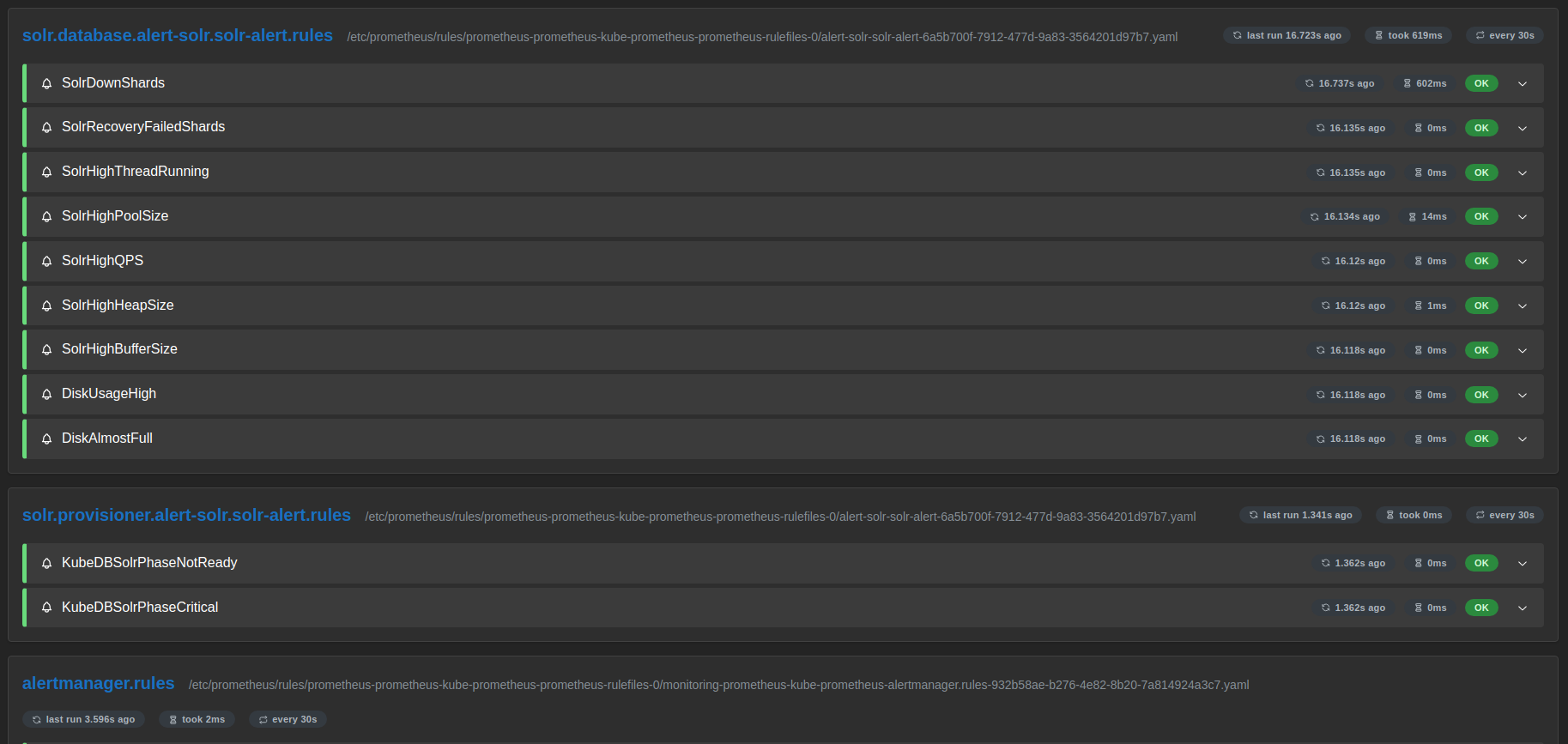

Confirm Prometheus loaded the rules

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules and locate the solr.database and solr.provisioner groups.

Both groups should show OK. solr-alerts v2026.7.14 has no opsManager/stash/kubeStash groups — only database and provisioner. Note there is no plain SolrDown alert; the closest equivalent is SolrDownShards (shard-level) and the provisioner group’s KubeDBSolrPhaseNotReady.

Verify End-to-End

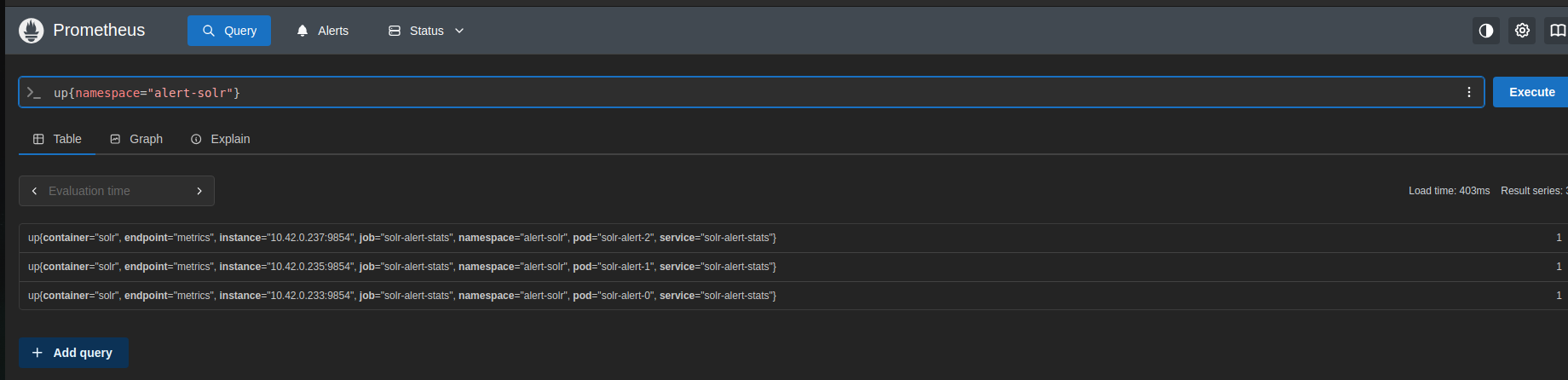

1. Check the Prometheus target is UP

Open http://localhost:9090/query?g0.expr=up%7Bnamespace%3D%22alert-solr%22%7D&g0.tab=1.

All three pods — solr-alert-0, solr-alert-1, solr-alert-2 — report up == 1, confirming Prometheus is scraping every Solr node in the alert-solr namespace.

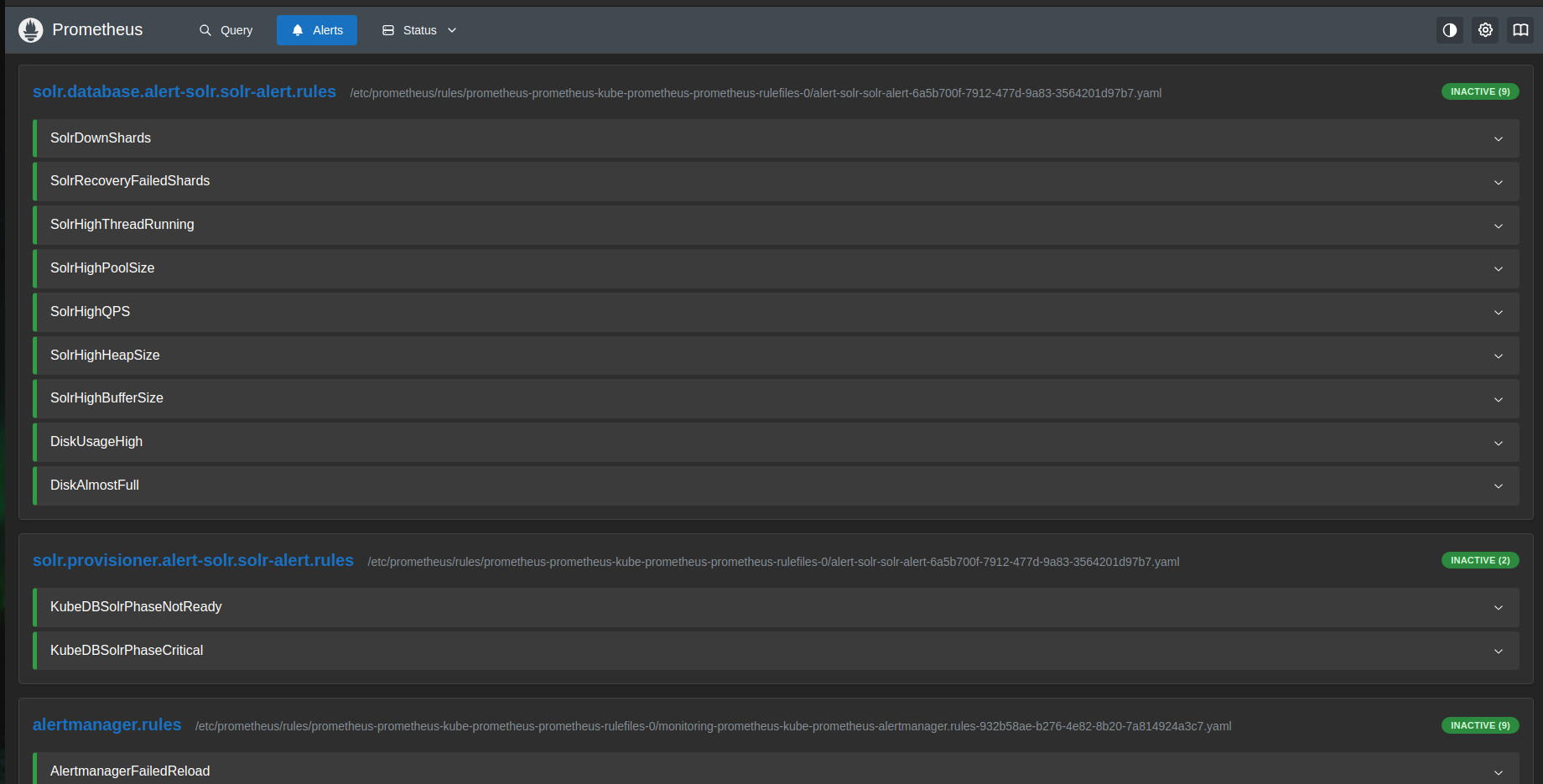

2. Confirm the Solr alerts are inactive

Open http://localhost:9090/alerts.

All 9 rules in the solr.database group and both rules in the solr.provisioner group show INACTIVE, confirming the cluster is healthy and no thresholds are breached.

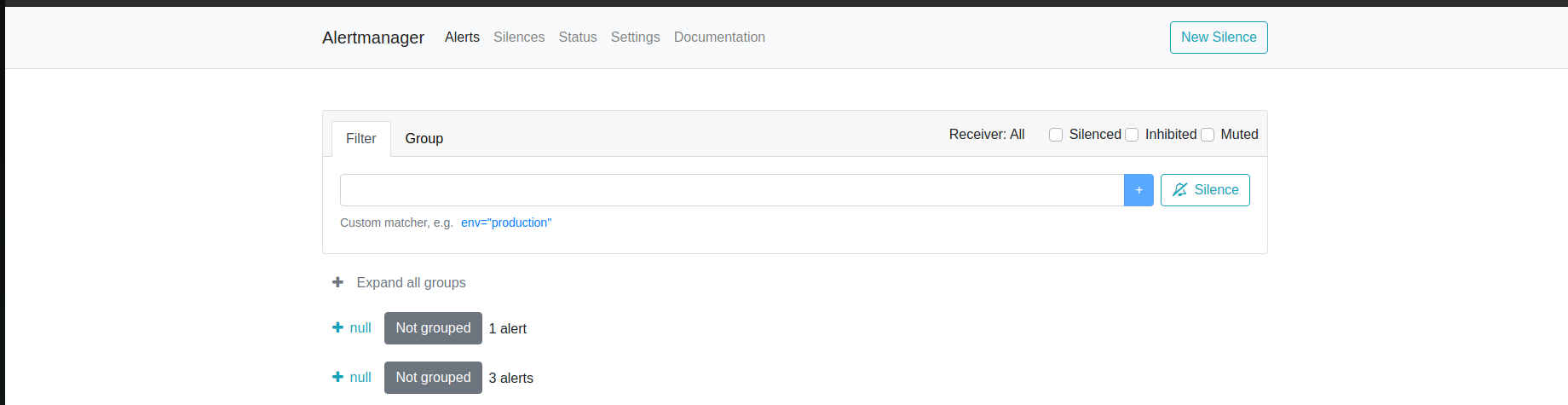

3. Check AlertManager

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093.

Simulating a Firing Alert

This section deliberately triggers KubeDBSolrPhaseNotReady by repeatedly crashing the main Solr JVM process on one node. A single kill restarts fast enough that the container becomes Ready again before KubeDB’s health check can observe the outage, so the crash needs to be sustained over a longer window than the for duration of the alert.

1. Crash the Solr process repeatedly

$ end=$(( $(date +%s) + 150 ))
  while [ $(date +%s) -lt $end ]; do
    kubectl exec -n alert-solr solr-alert-0 -c solr -- sh -c 'pid=$(pgrep -f "org.apache.solr" | head -1); [ -n "$pid" ] && kill -9 "$pid"' >/dev/null 2>&1
    sleep 5
  done

Watch the CR phase move to NotReady:

$ kubectl get solr -n alert-solr solr-alert -o jsonpath='{.status.phase}'
NotReady

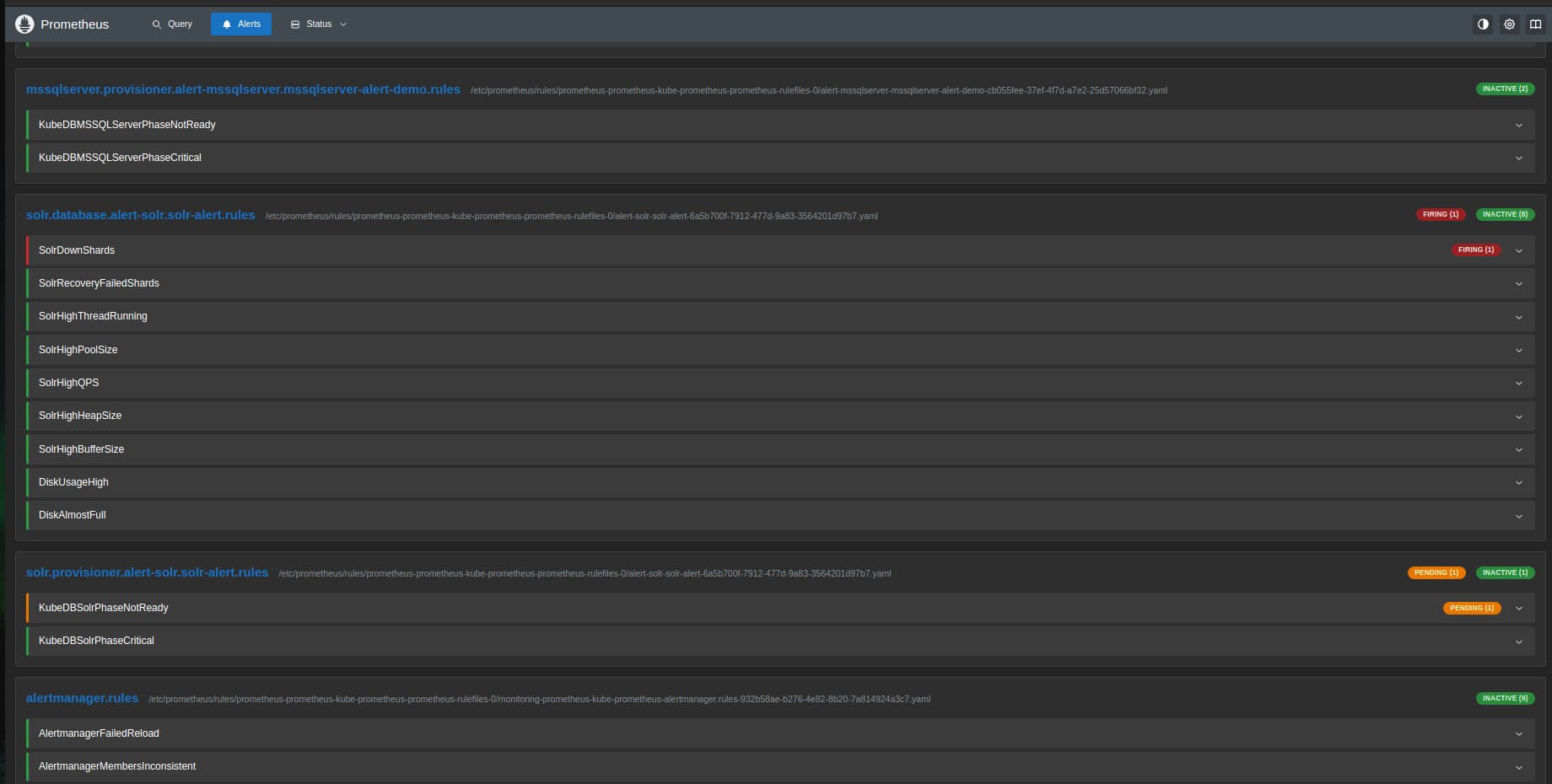

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts.

SolrDownShards (database group, for: 30s) reaches FIRING first, since the crashed node’s shard replica goes unreachable almost immediately. The provisioner-group KubeDBSolrPhaseNotReady (for: 1m) takes longer — in this screenshot it’s still PENDING, and transitions to FIRING once the KubeDB operator holds the resource at NotReady past the full one-minute window (confirmed via kubectl get solr ... -o jsonpath='{.status.phase}' above, and in the AlertManager screenshot next).

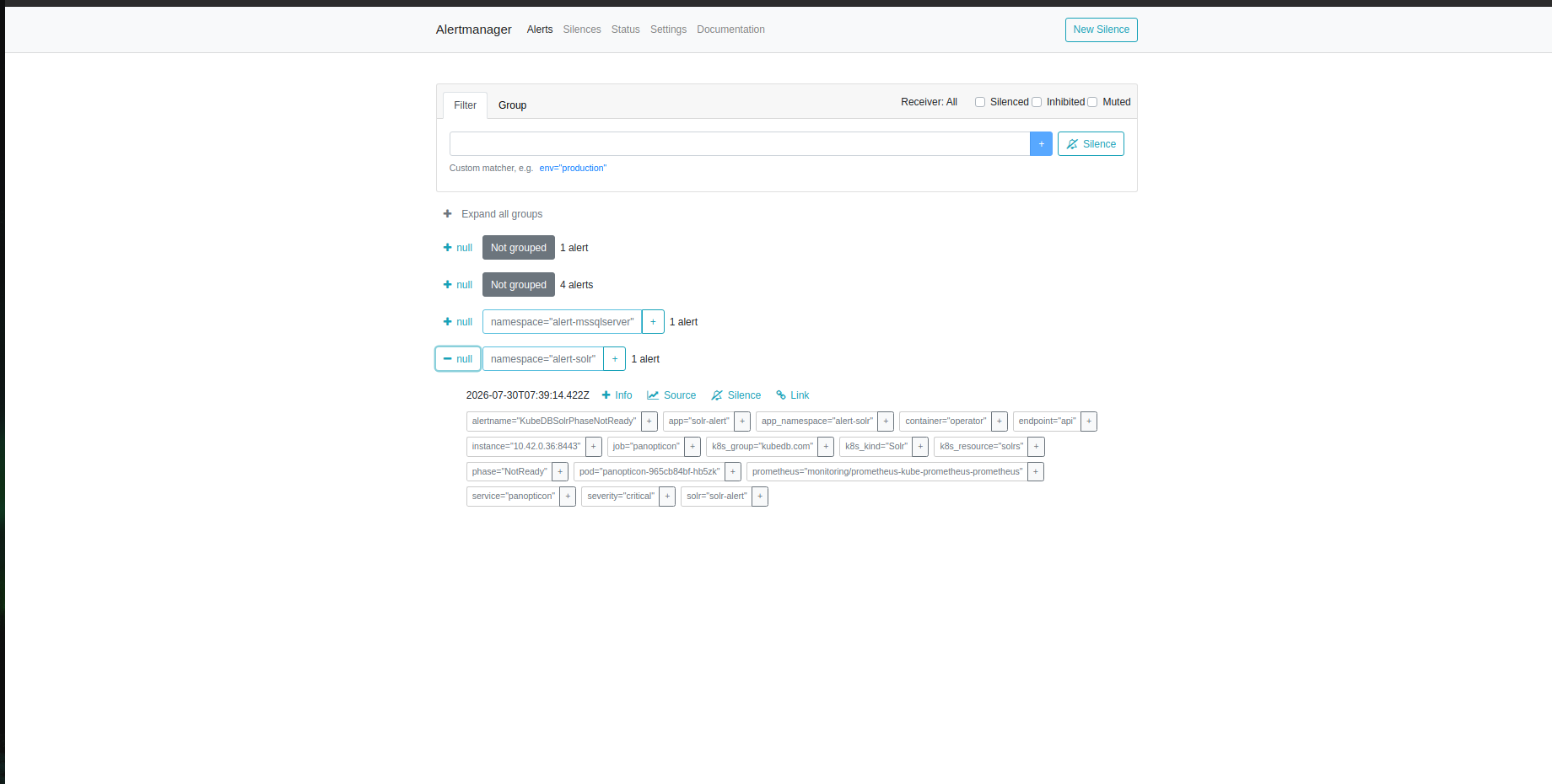

3. Check the AlertManager dashboard

Open http://localhost:9093.

AlertManager shows the KubeDBSolrPhaseNotReady alert, confirming it did reach FIRING shortly after the previous screenshot. The alert card displays labels including:

• alertname: KubeDBSolrPhaseNotReady
• severity: critical
• app: solr-alert, app_namespace: alert-solr
• phase: NotReady
• k8s_kind: Solr

Note that the instance/pod/job labels point at the KubeDB operator’s panopticon component (job="panopticon"), not at the Solr pod itself — because this alert is derived from the operator’s own status metric rather than from the Solr exporter.

AlertManager routes this alert to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alert is visible here but silently dropped.

4. Restore Solr

Stop the loop from step 1.

$ kubectl get solr -n alert-solr solr-alert -w
NAME         VERSION   STATUS   AGE
solr-alert   9.8.0     Ready    24m

If Solr does not recover on its own within a minute or two, force a clean restart: kubectl delete pod -n alert-solr solr-alert-0.

Alert Reference

All alerts are scoped to the solr-alert instance in the alert-solr namespace via job="solr-alert-stats" / namespace="alert-solr" (database group), or app="solr-alert" / namespace="alert-solr" (provisioner group).

Database Group

Fired based on live metrics from the Solr exporter sidecar and node/kubelet metrics.

Provisioner Group

Monitors the KubeDB operator’s view of the Solr resource phase (sourced from Panopticon, not the Solr metrics endpoint).

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          solrHighQPS:
            enabled: true
            duration: "2m"
            severity: warning

$ helm upgrade solr-alert appscode/solr-alerts \
    -n alert-solr \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the solr-alerts release (PrometheusRule + dashboard-import Job)
$ helm uninstall solr-alert -n alert-solr

# Remove the imported Grafana dashboard (it is not removed by helm uninstall)
$ curl -s -X DELETE -H "Authorization: Bearer <grafana-token>" \
    http://localhost:3000/api/dashboards/uid/<uid>

$ kubectl delete solr -n alert-solr solr-alert
$ kubectl delete zookeeper -n alert-solr zoo
$ kubectl delete ns alert-solr

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring
