SingleStore Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed SingleStore cluster using the singlestore-alerts Helm chart. This chart also bundles a Grafana dashboard that it imports automatically through a post-install Job — no separate dashboard chart is required.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the alert-singlestore namespace:

  $ kubectl create ns alert-singlestore
  namespace/alert-singlestore created


• SingleStore requires a license. Create a secret with your license before deploying:

  $ kubectl create secret generic -n alert-singlestore license-secret \
      --from-literal=username=license \
      --from-literal=password='your-license-key-here'
  secret/license-secret created


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• You will also need a Grafana API key / token with Editor permission so the chart’s dashboard-import Job can push the dashboard. See Step 1 below.

Note: YAML files used in this tutorial are stored in docs/examples/singlestore folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBSinglestorePhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_singlestore_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBSinglestorePhaseNotReady/KubeDBSinglestorePhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

• KubeDB deploys SingleStore without a separate exporter image — metrics are obtained via the memsql-admin binary built into the SingleStore container itself, which KubeDB’s operator configures automatically when spec.monitor is set.
• ServiceMonitor (named {singlestore-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape metrics every 10 seconds.
• PrometheusRule is created by the singlestore-alerts chart and contains alert definitions grouped by concern: database health, provisioner, and KubeStash backup/restore.
• Dashboard-import Job — when grafana.enabled is true, the chart also creates a one-shot Job that POSTs a bundled dashboard JSON straight to your Grafana instance’s /api/dashboards/import endpoint.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy SingleStore with Monitoring Enabled

SingleStore is always deployed as a cluster of aggregator and leaf nodes. Below is the topology used in this tutorial — one aggregator, two leaves.

apiVersion: kubedb.com/v1alpha2
kind: Singlestore
metadata:
  name: singlestore-alert-demo
  namespace: alert-singlestore
spec:
  version: "8.9.3"
  storageType: Durable
  topology:
    aggregator:
      replicas: 1
      storage:
        storageClassName: "local-path"
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 5Gi
    leaf:
      replicas: 2
      storage:
        storageClassName: "local-path"
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 10Gi
  licenseSecret:
    name: license-secret
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.topology.aggregator / spec.topology.leaf define the aggregator and leaf node groups that make up the SingleStore cluster. The aggregator is a single point of coordination for the cluster — crashing it takes the whole cluster NotReady, while a single leaf going down only degrades the cluster (more leaves survive).
• spec.licenseSecret.name references the license secret created in Before You Begin.
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

Let’s create the SingleStore resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/singlestore/monitoring/singlestore-alert-demo.yaml
singlestore.kubedb.com/singlestore-alert-demo created

Wait for the cluster to go into Ready state.

$ kubectl get singlestore -n alert-singlestore singlestore-alert-demo
NAME                      VERSION   STATUS   AGE
singlestore-alert-demo    8.9.3     Ready    5m

KubeDB brings up one aggregator pod and two leaf pods:

$ kubectl get pods -n alert-singlestore
NAME                                  READY   STATUS    RESTARTS   AGE
singlestore-alert-demo-aggregator-0   2/2     Running   0          5m
singlestore-alert-demo-leaf-0         2/2     Running   0          5m
singlestore-alert-demo-leaf-1         2/2     Running   0          4m

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-singlestore --selector="app.kubernetes.io/instance=singlestore-alert-demo"
NAME                                TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
singlestore-alert-demo              ClusterIP   10.43.10.20    <none>        3306/TCP    5m
singlestore-alert-demo-pods         ClusterIP   None           <none>        3306/TCP    5m
singlestore-alert-demo-stats        ClusterIP   10.43.10.21    <none>        56790/TCP   5m

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-singlestore
NAME                          AGE
singlestore-alert-demo-stats  5m

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n alert-singlestore singlestore-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Create a Grafana API Key

The chart’s dashboard-import Job authenticates to Grafana with a bearer token, so create one first.

• Grafana 9+: Administration → Service accounts → Add service account → role Editor → Add token. Copy the token.

• Grafana 8.x and earlier (no Service Accounts UI, e.g. the bundled kube-prometheus-stack Grafana 7.5.5): use the legacy API Keys endpoint instead:

  # Port-forward Grafana
  $ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80&

  # Retrieve the admin password
  $ kubectl get secret -n monitoring prometheus-grafana \
      -o jsonpath='{.data.admin-password}' | base64 -d && echo

  # Create an API key with Editor role
  $ curl -s -X POST -H "Content-Type: application/json" \
      -u admin:<grafana_password> \
      http://localhost:3000/api/auth/keys \
      -d '{"name":"singlestore-alerts-demo","role":"Editor"}'
  # Note the returned "key"

  # Stop the port-forward
  $ kill %1


Either way, you end up with a bearer token to use as grafana.apikey below.

Step 2 — Install singlestore-alerts

The singlestore-alerts chart creates a PrometheusRule resource containing all SingleStore alert definitions.

Why the Helm release name matters

The chart derives the PrometheusRule name and scopes every PromQL expression (via job="{release-name}-stats" / app="{release-name}") from the Helm release name — so the release name must match the SingleStore object’s name (singlestore-alert-demo).

Install

$ helm upgrade -i singlestore-alert-demo appscode/singlestore-alerts \
    -n alert-singlestore \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set grafana.enabled=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<token-from-above>" \
    --set grafana.jobName=singlestore-alert-demo-stats \
    --set form.alert.appSuffix=ss-grafana-demo

To install alerts only, without the dashboard, omit the grafana.* flags (or set --set grafana.enabled=false).

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-singlestore
NAME                       AGE
singlestore-alert-demo     30s

$ kubectl get prometheusrule -n alert-singlestore singlestore-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Verify the dashboard-import Job

$ kubectl get job -n alert-singlestore
NAME                             STATUS     COMPLETIONS   AGE
singlestore-alert-demo-post-job  Complete   1/1           17s

$ kubectl logs -n alert-singlestore job/singlestore-alert-demo-post-job
{"pluginId":"","title":"kubedb.com / Singlestore / alert-singlestore / singlestore-alert-demo","imported":true, ...}

A "imported":true response confirms the dashboard kubedb.com / Singlestore / alert-singlestore / singlestore-alert-demo now exists in Grafana.

Confirm Prometheus loaded the rules

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

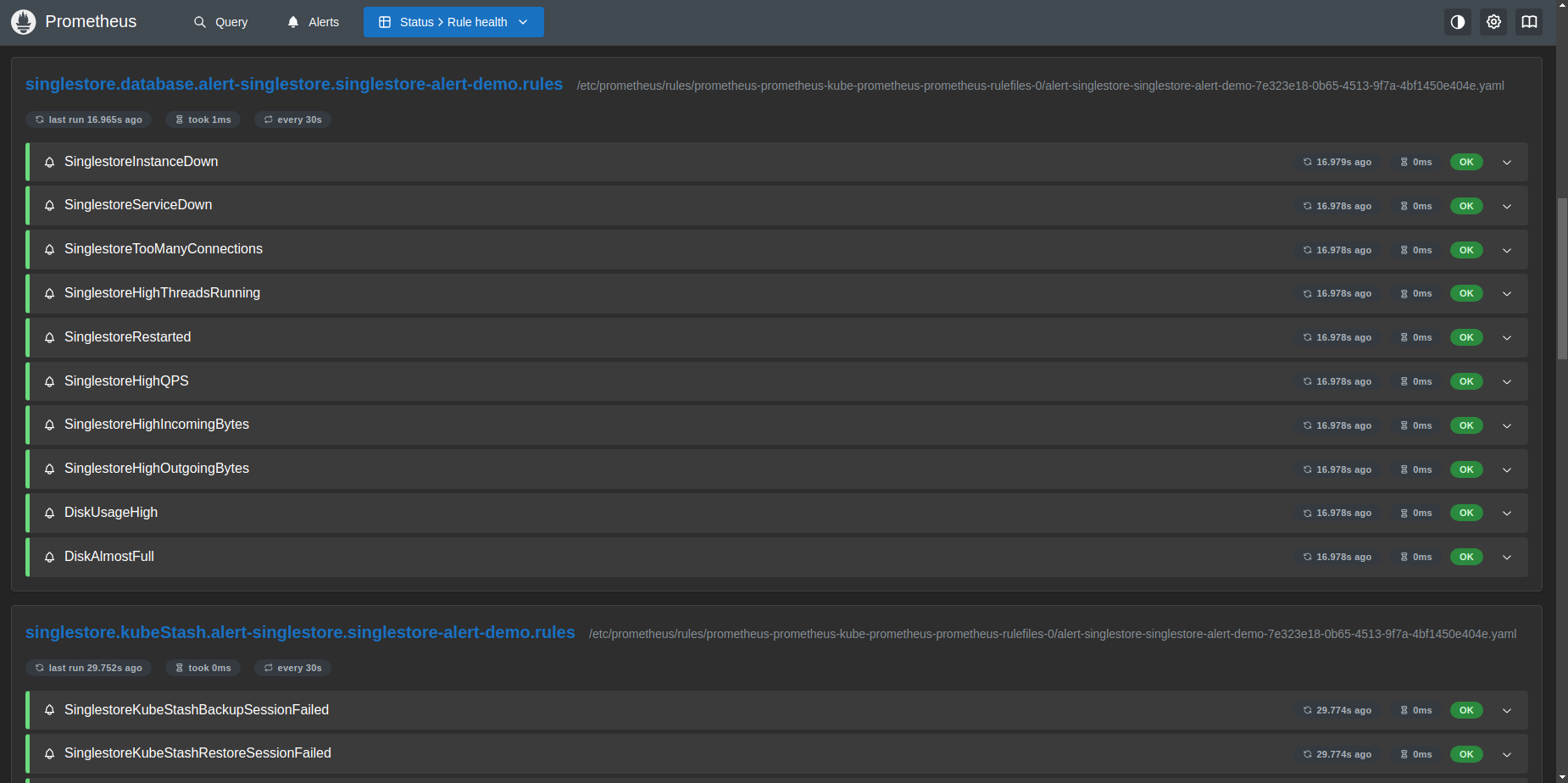

Open http://localhost:9090/rules and locate the singlestore.database, singlestore.provisioner, and singlestore.kubeStash groups.

All groups should show OK. Unlike several other *-alerts charts, singlestore-alerts v2026.7.14 has no opsManager group at all — its values.yaml only declares database, provisioner, and kubeStash.

Verify End-to-End

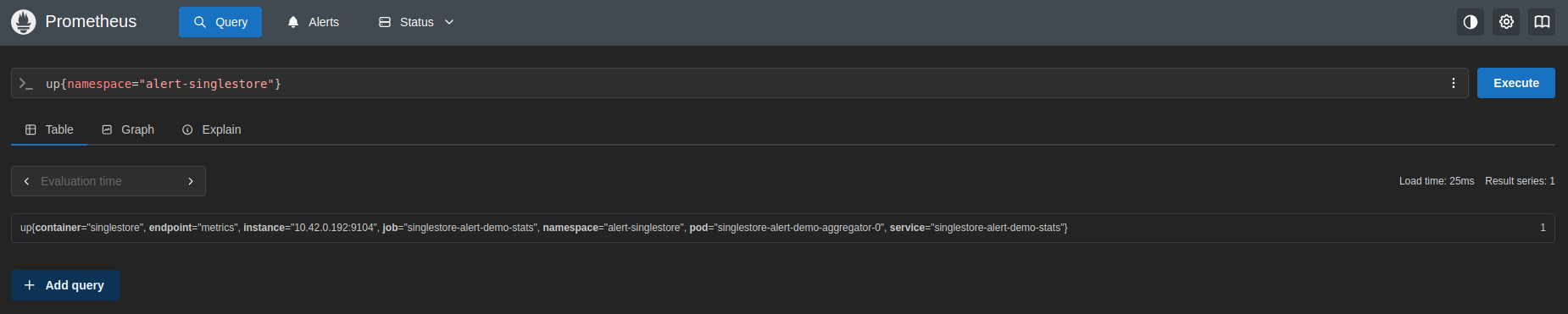

1. Check the Prometheus target is UP

Open http://localhost:9090/query?g0.expr=up%7Bnamespace%3D%22alert-singlestore%22%7D&g0.tab=1.

Only one series is returned, scoped to pod="singlestore-alert-demo-aggregator-0". This is not a query mistake — the singlestore-alert-demo-stats Service selects all three pods, but its Endpoints only ever resolve to the aggregator (kubectl get endpoints -n alert-singlestore singlestore-alert-demo-stats shows a single address). In this chart, only the aggregator node exposes the Prometheus metrics endpoint — the leaf pods don’t. Every database-group alert (SinglestoreInstanceDown, SinglestoreHighQPS, etc.) is therefore effectively scoped to the aggregator only, not the leaves, regardless of how many leaf replicas you run.

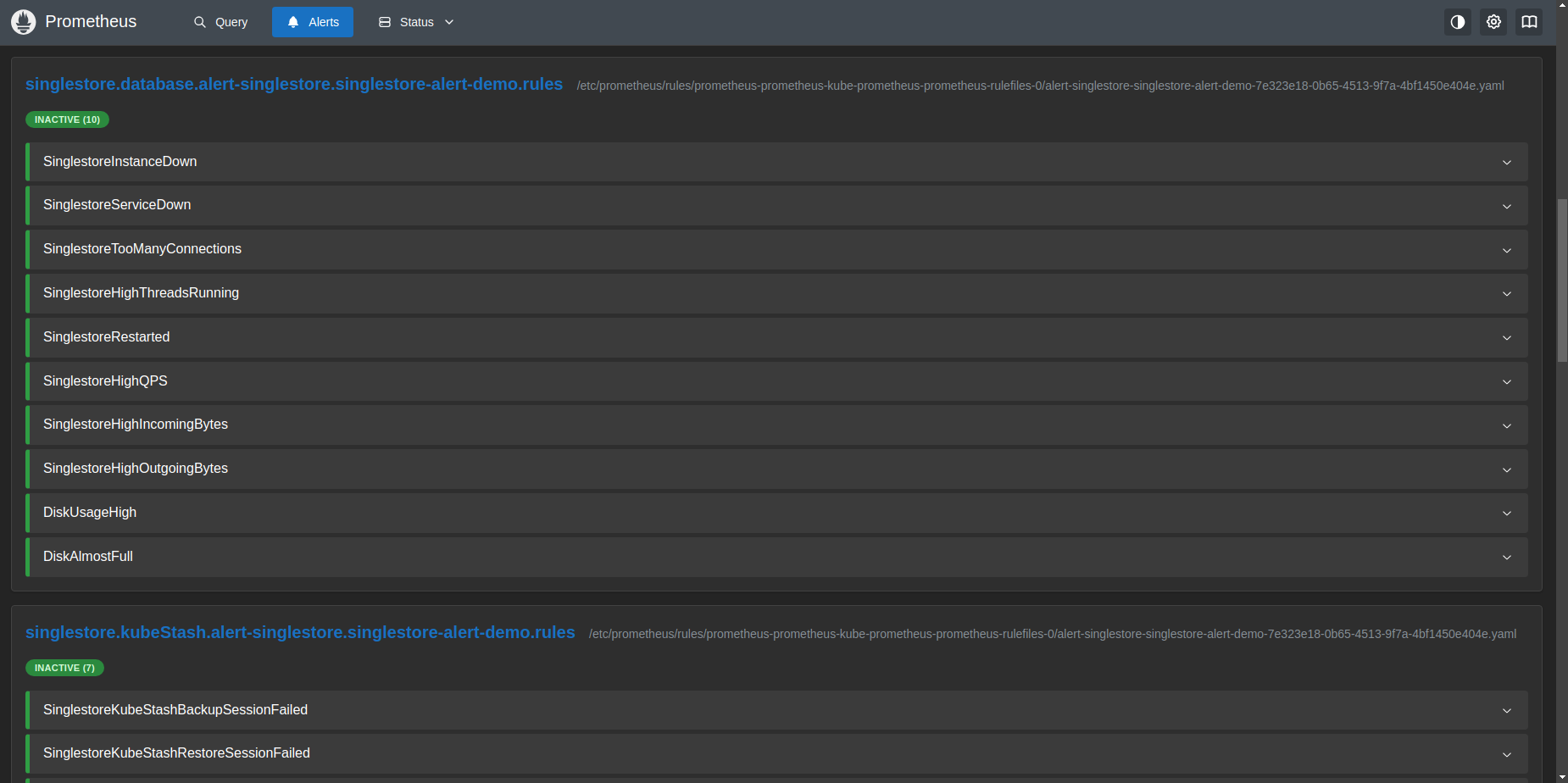

2. Confirm the SingleStore alerts are inactive

Open http://localhost:9090/alerts.

All 10 rules in the singlestore.database group and all 7 rules in the singlestore.kubeStash group show INACTIVE. singlestore.kubeStash rules stay INACTIVE with no data unless KubeStash backups are configured.

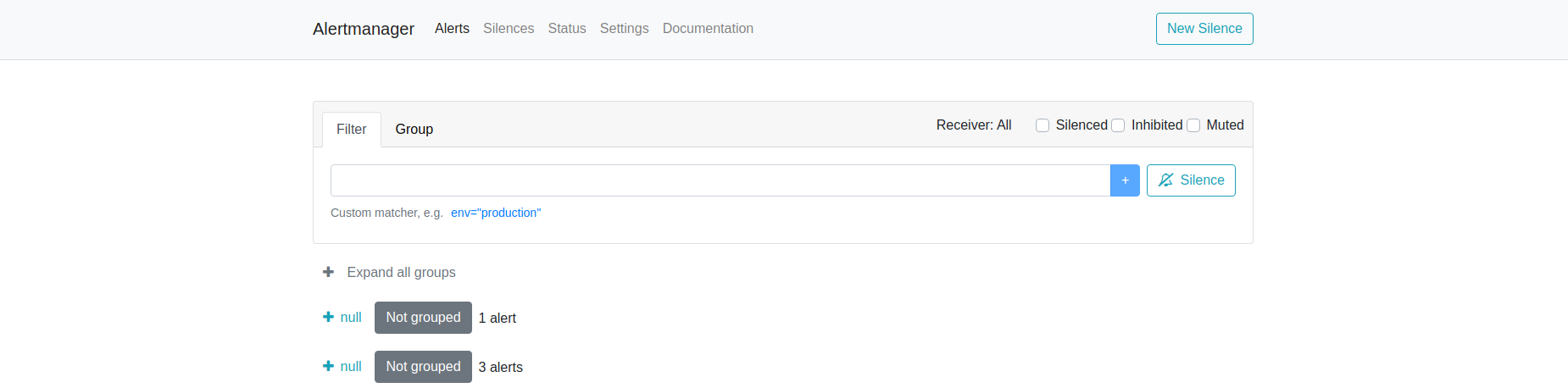

3. Check AlertManager

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093.

Simulating a Firing Alert

This section deliberately triggers KubeDBSinglestorePhaseNotReady by crashing the aggregator node. With spec.topology.aggregator.replicas: 1, the aggregator is a single point of coordination for the whole cluster — crashing it repeatedly holds the CR’s status.phase at NotReady long enough for the provisioner-group alert to fire, unlike crashing a single leaf (which only degrades the cluster, since a second leaf survives).

1. Crash the aggregator process repeatedly

$ end=$(( $(date +%s) + 120 ))
  while [ $(date +%s) -lt $end ]; do
    kubectl exec -n alert-singlestore singlestore-alert-demo-aggregator-0 -c singlestore -- sh -c 'pid=$(pgrep -x memsqld | head -1); [ -n "$pid" ] && kill -9 "$pid"' >/dev/null 2>&1
    sleep 5
  done

Watch the CR phase move to NotReady:

$ kubectl get singlestore -n alert-singlestore singlestore-alert-demo -o jsonpath='{.status.phase}'
NotReady

KubeDBSinglestorePhaseNotReady keys off kubedb_com_singlestore_status_phase (a metric emitted by the KubeDB operator itself, via panopticon), so what matters is the CR’s status.phase staying at NotReady for the full for: 1m window, not the aggregator’s own scrape health.

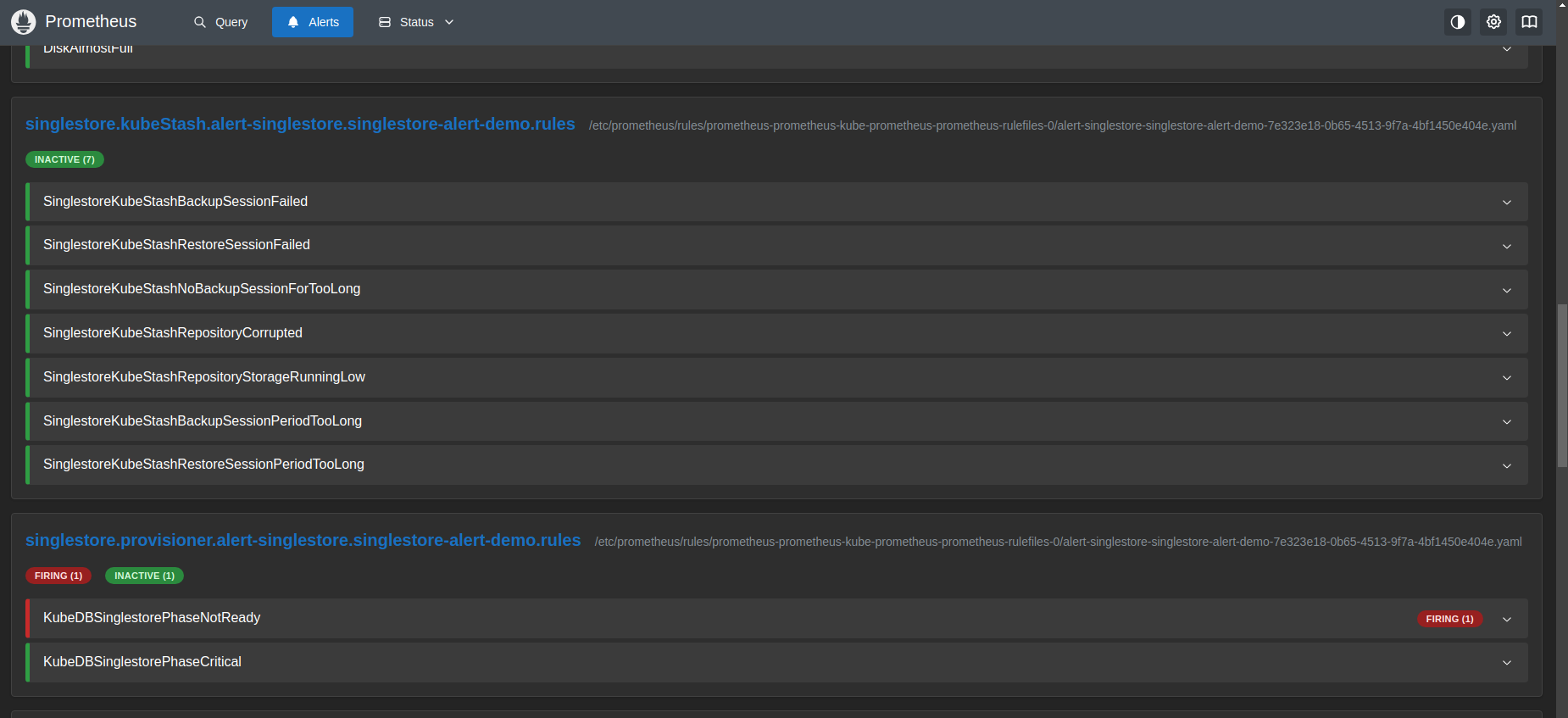

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts.

KubeDBSinglestorePhaseNotReady (in the singlestore.provisioner group) transitions from INACTIVE to FIRING, while singlestore.database and singlestore.kubeStash stay INACTIVE — crashing the aggregator’s memsqld process doesn’t take the metrics scrape target down (the pod’s singlestore container restarts quickly), so SinglestoreInstanceDown never fires here; it’s specifically the operator’s own phase tracking that reacts.

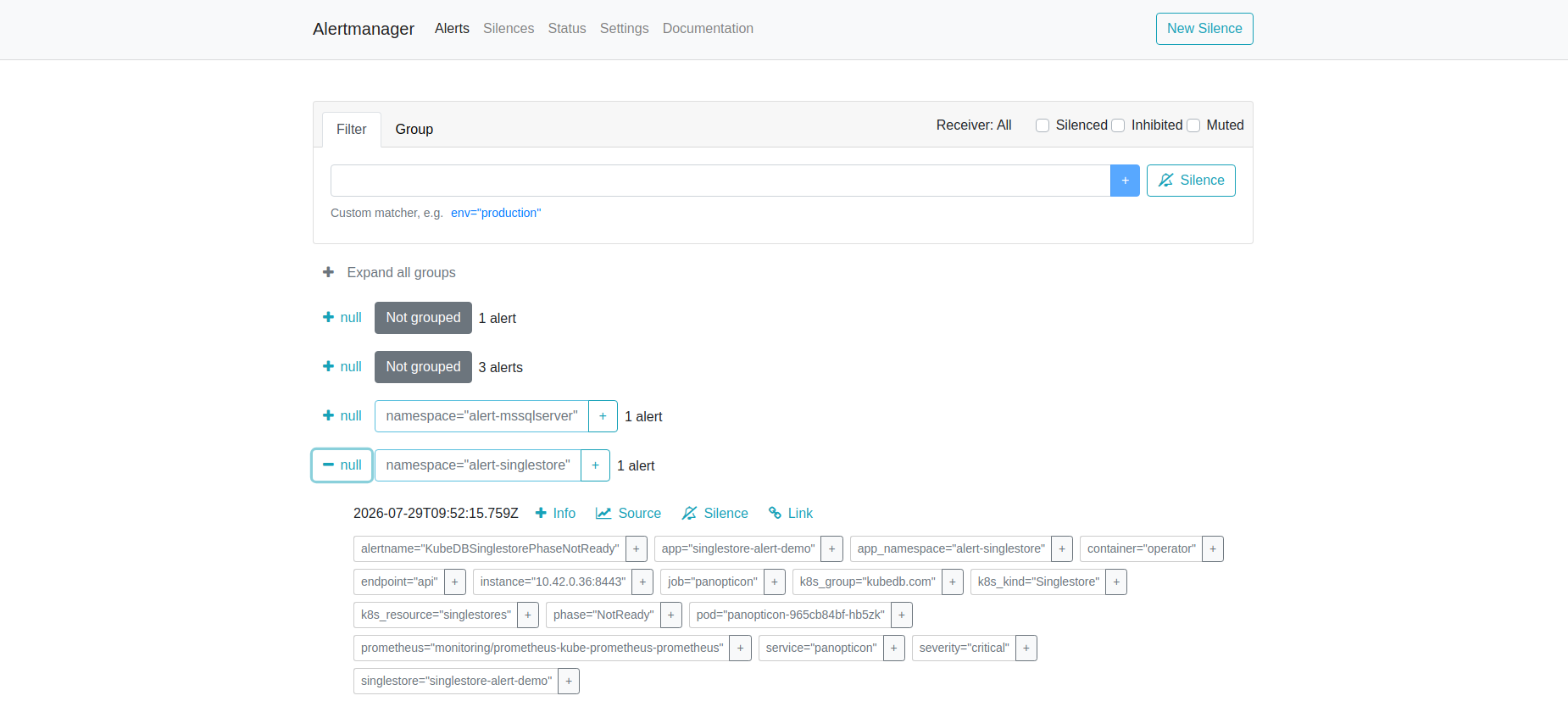

3. Check the AlertManager dashboard

Open http://localhost:9093.

AlertManager shows the KubeDBSinglestorePhaseNotReady alert. The alert card displays labels including:

• alertname: KubeDBSinglestorePhaseNotReady
• severity: critical
• app: singlestore-alert-demo, app_namespace: alert-singlestore
• phase: NotReady
• k8s_kind: Singlestore

Note that the instance/pod/job labels point at the KubeDB operator’s panopticon component (job="panopticon"), not at the SingleStore pod itself — because this alert is derived from the operator’s own status metric.

4. Restore SingleStore

Stop the loop from step 1.

$ kubectl get singlestore -n alert-singlestore singlestore-alert-demo -w
NAME                      VERSION   STATUS   AGE
singlestore-alert-demo    8.9.3     Ready    24m

If the aggregator does not recover on its own within a minute or two, force a clean restart: kubectl delete pod -n alert-singlestore singlestore-alert-demo-aggregator-0.

Alert Reference

All database-group alerts are scoped to the singlestore-alert-demo instance via the PromQL label filters job="singlestore-alert-demo-stats" / namespace="alert-singlestore"; provisioner/kubeStash alerts use app="singlestore-alert-demo" / namespace="alert-singlestore".

Database Group

Provisioner Group

KubeStash Group

Only meaningful once KubeStash backup/restore is configured.

Customising Alerts

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          singlestoreTooManyConnections:
            enabled: true
            duration: "5m"
            severity: warning
      kubeStash:
        enabled: "none"    # disable if you don't use KubeStash

$ helm upgrade singlestore-alert-demo appscode/singlestore-alerts \
    -n alert-singlestore \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the singlestore-alerts release (PrometheusRule + dashboard-import Job)
$ helm uninstall singlestore-alert-demo -n alert-singlestore

# Remove the imported Grafana dashboard (it is not removed by helm uninstall)
$ curl -s -X DELETE -H "Authorization: Bearer <grafana-token>" \
    http://localhost:3000/api/dashboards/uid/<uid>

$ kubectl delete singlestore -n alert-singlestore singlestore-alert-demo
$ kubectl delete secret -n alert-singlestore license-secret
$ kubectl delete ns alert-singlestore

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring

Next Steps

• Monitor your SingleStore cluster with KubeDB using built-in Prometheus.
• Monitor your SingleStore cluster with KubeDB using Prometheus operator.
• Want to hack on KubeDB? Check our contribution guidelines.
