Redis Grafana Dashboard

KubeDB exposes Redis metrics through a sidecar exporter, and its own view of each resource (status, phase, version) through Panopticon. Once Prometheus is scraping both, you can visualize them in Grafana using pre-built KubeDB dashboards. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a Redis instance, and importing the Grafana dashboards.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (see Configuration) uses to expose metrics to Prometheus.

• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


• Before proceeding, complete the Configuration steps to deploy kube-prometheus-stack and Panopticon.

Note: YAML files used in this tutorial are stored in docs/examples/redis/monitoring folder in GitHub repository kubedb/docs.

Setup

Step 1: Deploy Redis

Below is the Redis object with monitoring configured to use Prometheus Operator. This example deploys Redis in Cluster mode (3 shards, 2 replicas each) — the mode needed to populate the KubeDB / Redis / Shard dashboard’s panels; a standalone Redis instance leaves that dashboard empty.

apiVersion: kubedb.com/v1
kind: Redis
metadata:
  name: redis-cluster
  namespace: demo
spec:
  version: 8.2.2
  mode: Cluster
  cluster:
    shards: 3
    replicas: 2
  storageType: Durable
  storage:
    resources:
      requests:
        storage: 1Gi
    storageClassName: local-path
    accessModes:
    - ReadWriteOnce
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.mode: Cluster with spec.cluster.shards/spec.cluster.replicas deploys a 3-shard Redis Cluster with 2 replicas per shard (9 pods total).
• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the Redis instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/redis/monitoring/redis-cluster.yaml
redis.kubedb.com/redis-cluster created

Wait for it to be Ready:

$ kubectl get redis -n demo redis-cluster
NAME            VERSION   STATUS   AGE
redis-cluster   8.2.2     Ready    5m

Each shard gets its own stats service named {redis-name}-shard{N}-stats for the exporter:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=redis-cluster"
NAME                          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
redis-cluster                 ClusterIP   10.96.10.1     <none>        6379/TCP    5m
redis-cluster-shard0-stats    ClusterIP   10.96.10.2     <none>        56790/TCP   5m
redis-cluster-shard1-stats    ClusterIP   10.96.10.3     <none>        56790/TCP   5m
redis-cluster-shard2-stats    ClusterIP   10.96.10.4     <none>        56790/TCP   5m

KubeDB also creates a ServiceMonitor per shard in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                          AGE
redis-cluster-shard0-stats    5m
redis-cluster-shard1-stats    5m
redis-cluster-shard2-stats    5m

Verify one carries the correct label:

$ kubectl get servicemonitor -n demo redis-cluster-shard0-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

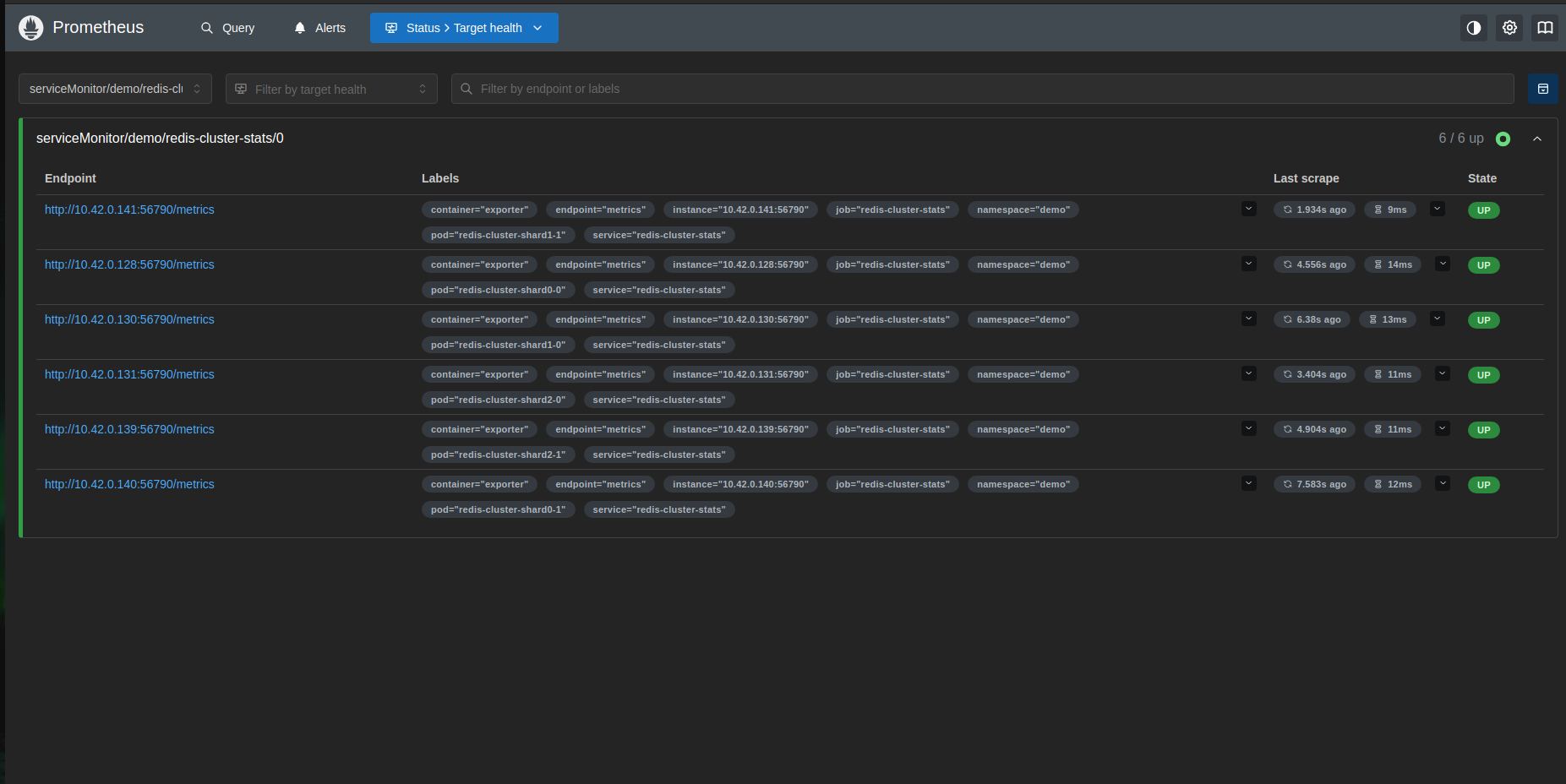

Open http://localhost:9090/targets in your browser. Look for entries whose service label matches redis-cluster-shard0-stats, redis-cluster-shard1-stats, and redis-cluster-shard2-stats. Their state should be UP.

If a target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

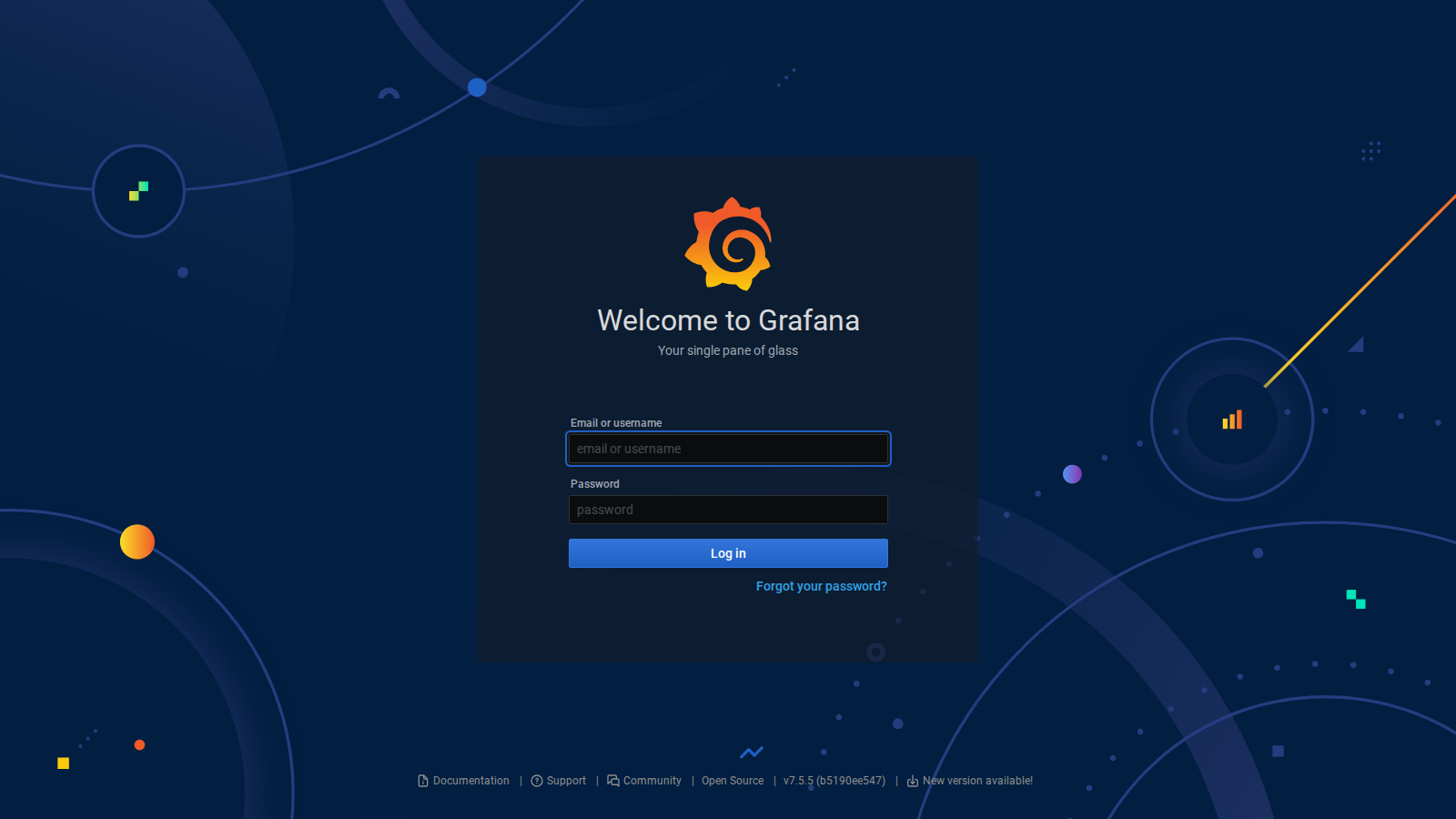

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

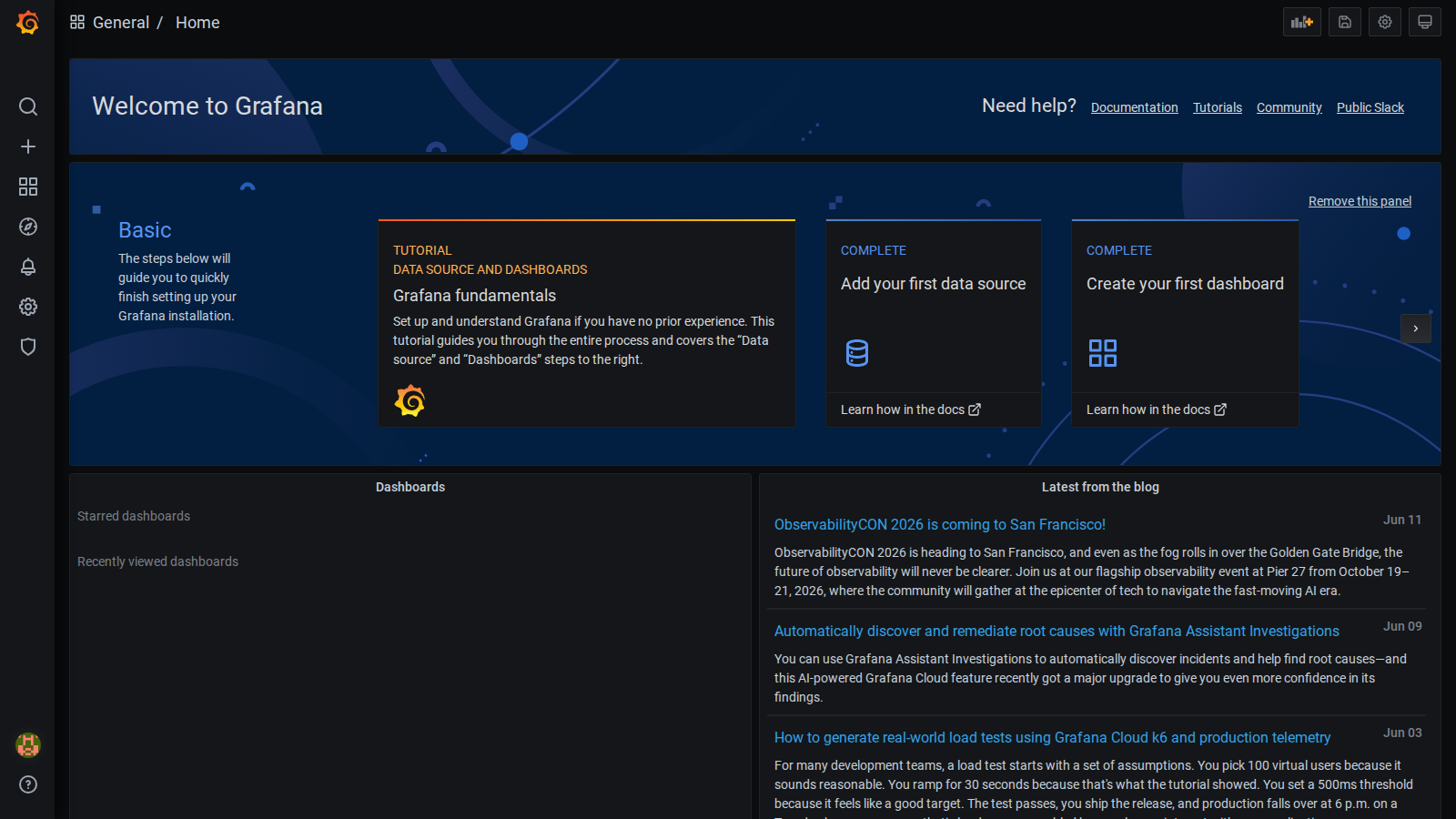

After a successful login you will see the Grafana home page:

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

If you’re using a different Grafana instance than the one installed in the Configuration prerequisite (linked in “Before You Begin” above), add Prometheus as a data source manually:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import Dashboard — Option A: Automatic (chart)

Rather than downloading and uploading each JSON file by hand (Option B below), KubeDB ships a chart that creates all matching dashboards for you as GrafanaDashboard custom resources. A separate controller, grafana-operator, watches these resources and pushes the actual dashboard JSON into your Grafana instance — both pieces are required.

1. Install grafana-operator (skip if it’s already running in your cluster):

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install grafana-operator appscode/grafana-operator \
    --version v2026.6.12 \
    --namespace kubeops --create-namespace

2. Register your Grafana instance as an AppBinding (skip if you’ve already done this in another guide on this cluster). grafana-operator needs to know where to push dashboards and how to authenticate — it reads this from an AppBinding object, not from the chart install command itself. Since Grafana here came bundled with kube-prometheus-stack, reuse its existing admin credentials:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80 &

$ curl -s -X POST -H "Content-Type: application/json" \
    -u admin:<grafana_password> \
    http://localhost:3000/api/auth/keys \
    -d '{"name":"kubedb-dashboards","role":"Admin"}'
# Note the returned "key"

$ kill %1

$ kubectl create secret generic grafana-admin-token -n monitoring \
    --from-literal=token='<key-from-above>'

$ cat <<EOF | kubectl apply -f -
apiVersion: appcatalog.appscode.com/v1alpha1
kind: AppBinding
metadata:
  name: grafana
  namespace: monitoring
spec:
  type: monitoring.appscode.com/grafana
  clientConfig:
    url: http://prometheus-grafana.monitoring.svc:80
  secret:
    name: grafana-admin-token
EOF

3. Install the dashboards:

The chart packages dashboard JSON for every database it supports, so install it from a copy trimmed down to just Redis’s dashboards (this also keeps grafana-operator from creating dashboards for databases you don’t run):

$ helm pull appscode/kubedb-grafana-dashboards --version v2026.7.10 --untar

$ cd kubedb-grafana-dashboards/dashboards
$ ls | grep -v '^redis$' | xargs rm -rf   # keep only dashboards/redis (includes the RedisSentinel dashboards too)
$ cd ../..

$ helm package kubedb-grafana-dashboards
Successfully packaged chart and saved it to: kubedb-grafana-dashboards-v2026.7.10.tgz

$ helm upgrade -i kubedb-grafana-dashboards-redis ./kubedb-grafana-dashboards-v2026.7.10.tgz \
    -n kubeops --create-namespace \
    --set grafana.name=grafana \
    --set grafana.namespace=monitoring

Use a release name unique to this database (kubedb-grafana-dashboards-redis), not the plain kubedb-grafana-dashboards name — if you also follow another DB’s Grafana Dashboard guide on this same cluster, each helm upgrade -i under a shared release name would prune the previous DB’s dashboards (Helm removes anything not in the new release’s manifest). A per-DB release name lets them coexist.

grafana.name/grafana.namespace point the chart’s GrafanaDashboard resources at the AppBinding created in step 2 (omitting them falls back to whichever AppBinding in your cluster is labeled as the cluster-default Grafana, if any — explicit is safer on a shared cluster). No need to touch featureGates — with every other database’s dashboards/ folder removed, their gates simply match zero files and render nothing, regardless of being true by default.

This creates every dashboard the chart ships for Redis — KubeDB / Redis / Summary, KubeDB / Redis / Pod, KubeDB / Redis / Shard (plus the RedisSentinel / Pod and RedisSentinel / Summary variants) — which grafana-operator then pushes into your Grafana instance automatically. No manual JSON download or upload needed.

Verify they landed:

$ kubectl get grafanadashboards.openviz.dev -n kubeops | grep -i redis
NAME                                    TITLE                              SYNCED    AGE
grafana-kubedb-redis-pod                KubeDB / Redis / Pod               Current   30s
grafana-kubedb-redis-shard               KubeDB / Redis / Shard              Current   30s
grafana-kubedb-redis-summary            KubeDB / Redis / Summary           Current   30s
grafana-kubedb-redissentinel-pod        KubeDB / RedisSentinel / Pod       Current   30s
grafana-kubedb-redissentinel-summary    KubeDB / RedisSentinel / Summary   Current   30s

The grafana- prefix on each resource name comes from the grafana.name=grafana value set above (the chart prepends it to the dashboard title to build the resource name) — this is expected.

SYNCED: Current confirms grafana-operator successfully pushed each dashboard into Grafana. Open Grafana — the dashboards are already there under Dashboards, fully wired to your Prometheus data source, ready to explore in Step 6 below.

If the SYNCED column is missing entirely from your output (not just showing a non-Current value), grafana-operator most likely never processed the resource at all. Check that the operator pod is actually running (kubectl get pods -n kubeops -l app.kubernetes.io/name=grafana-operator), inspect its logs for AppBinding/auth errors (kubectl logs -n kubeops deploy/grafana-operator), and check kubectl get grafanadashboards.openviz.dev -n kubeops <name> -o yaml for status.conditions — the CR existing only means kubectl accepted it, not that it reached Grafana.

After importing them, they will appear under Dashboards in the left sidebar as well:

Step 5: Import Dashboard — Option B: Manual (JSON upload)

If you’d rather not run grafana-operator, or want fine-grained control over exactly which dashboards get imported, upload the same dashboard JSON files by hand instead.

The KubeDB Redis dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download the JSON files from the opnpulse/dashboards repository (redis/ folder):

Import steps (repeat for each file you need):

1. In Grafana, click the + icon in the left sidebar.
2. Select Import from the menu.
3. Click Upload JSON file and select one of the downloaded .json files.
4. In the Prometheus dropdown that appears, select your Prometheus data source.
5. Click Import.

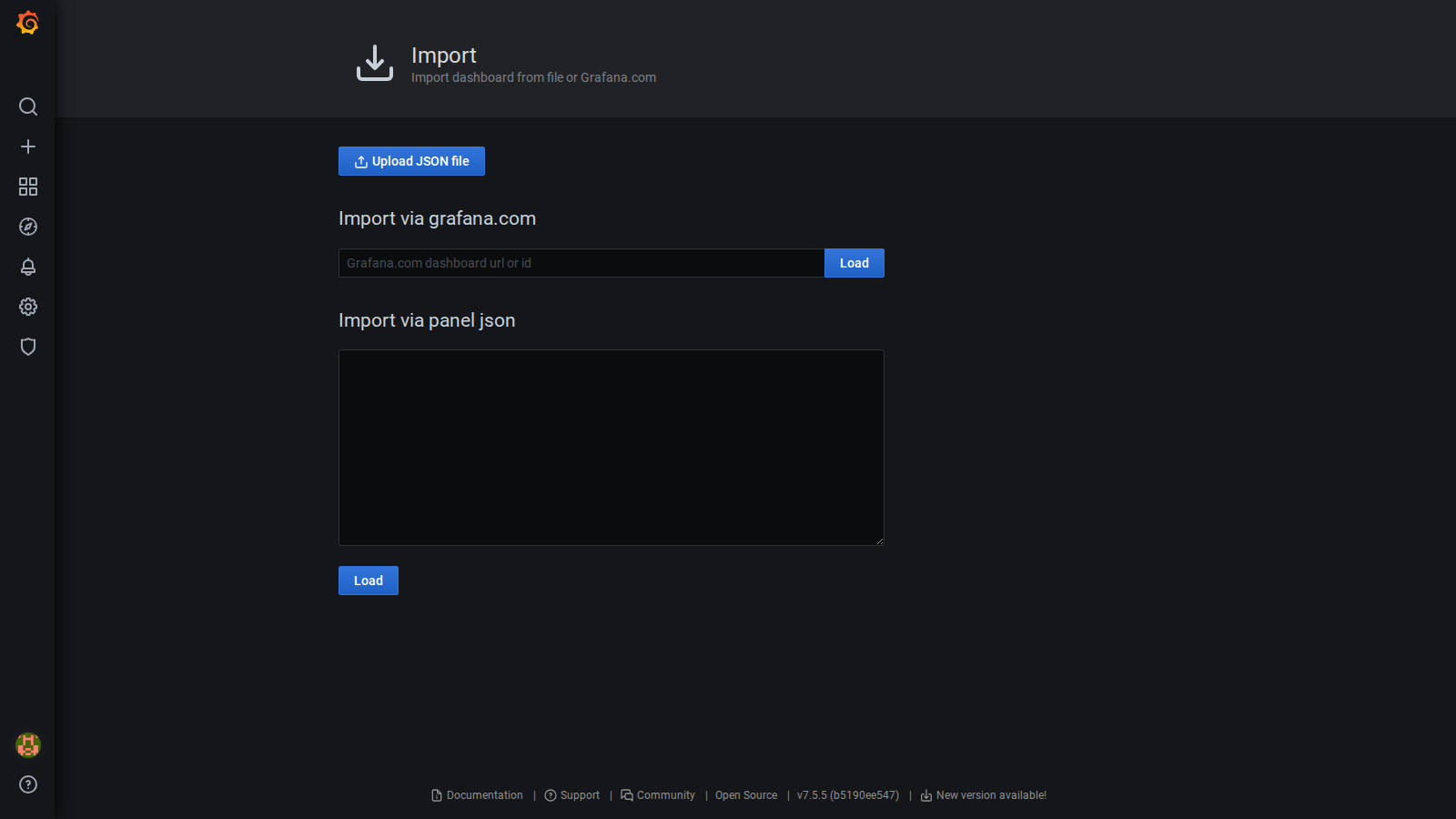

The import page looks like this — click Upload dashboard JSON file to select the file:

After importing the files you need, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboard

After opening a dashboard, use the dropdown filters at the top to focus on a specific instance.

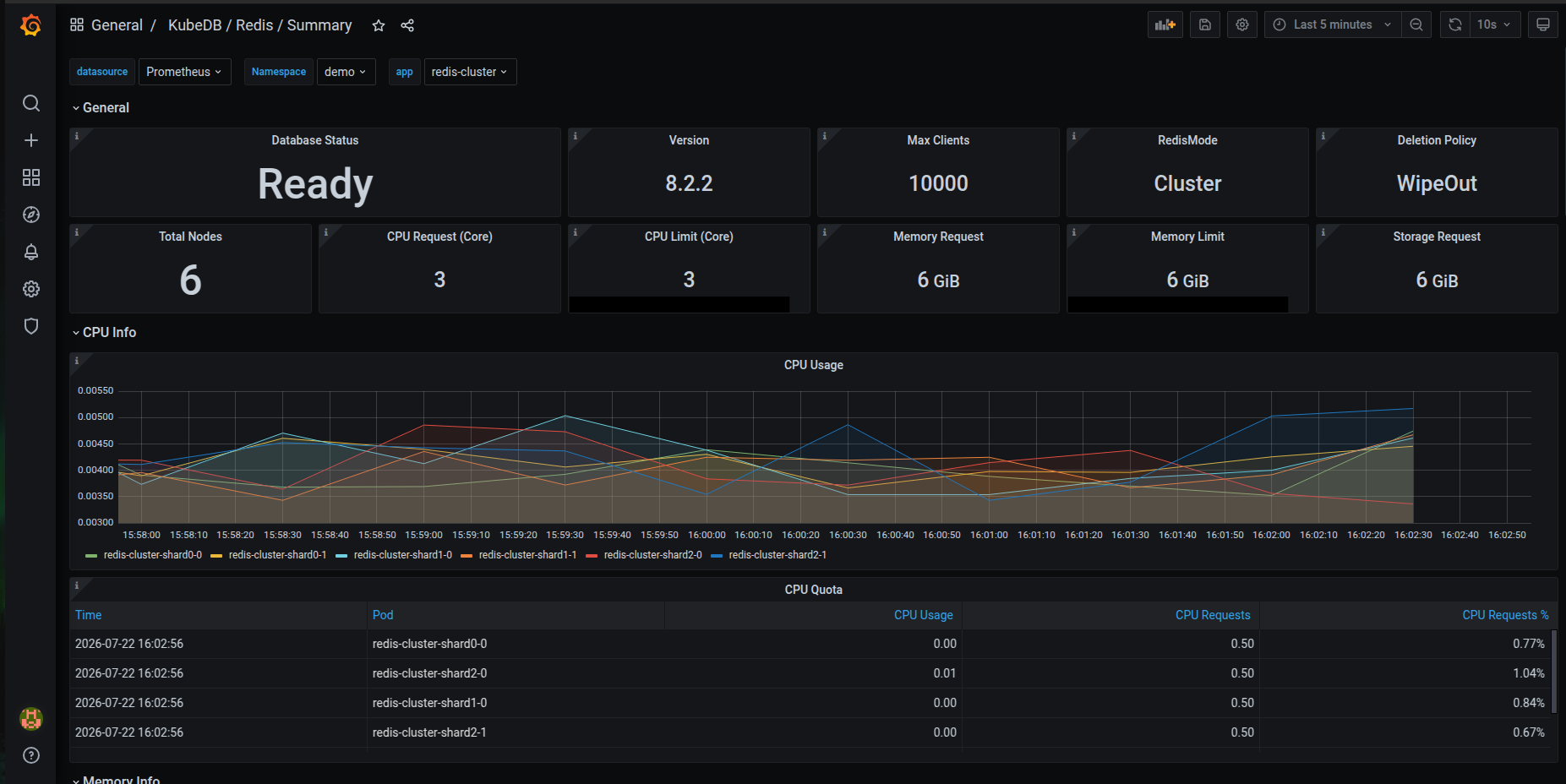

KubeDB / Redis / Summary — start here for an instance overview:

• General Info — database status, version, max clients, Redis mode, deletion policy, total nodes
• Resource Requests / Limits — configured CPU, memory, and storage requests and limits
• CPU Info / CPU Quota — per-pod CPU usage over time and quota utilization

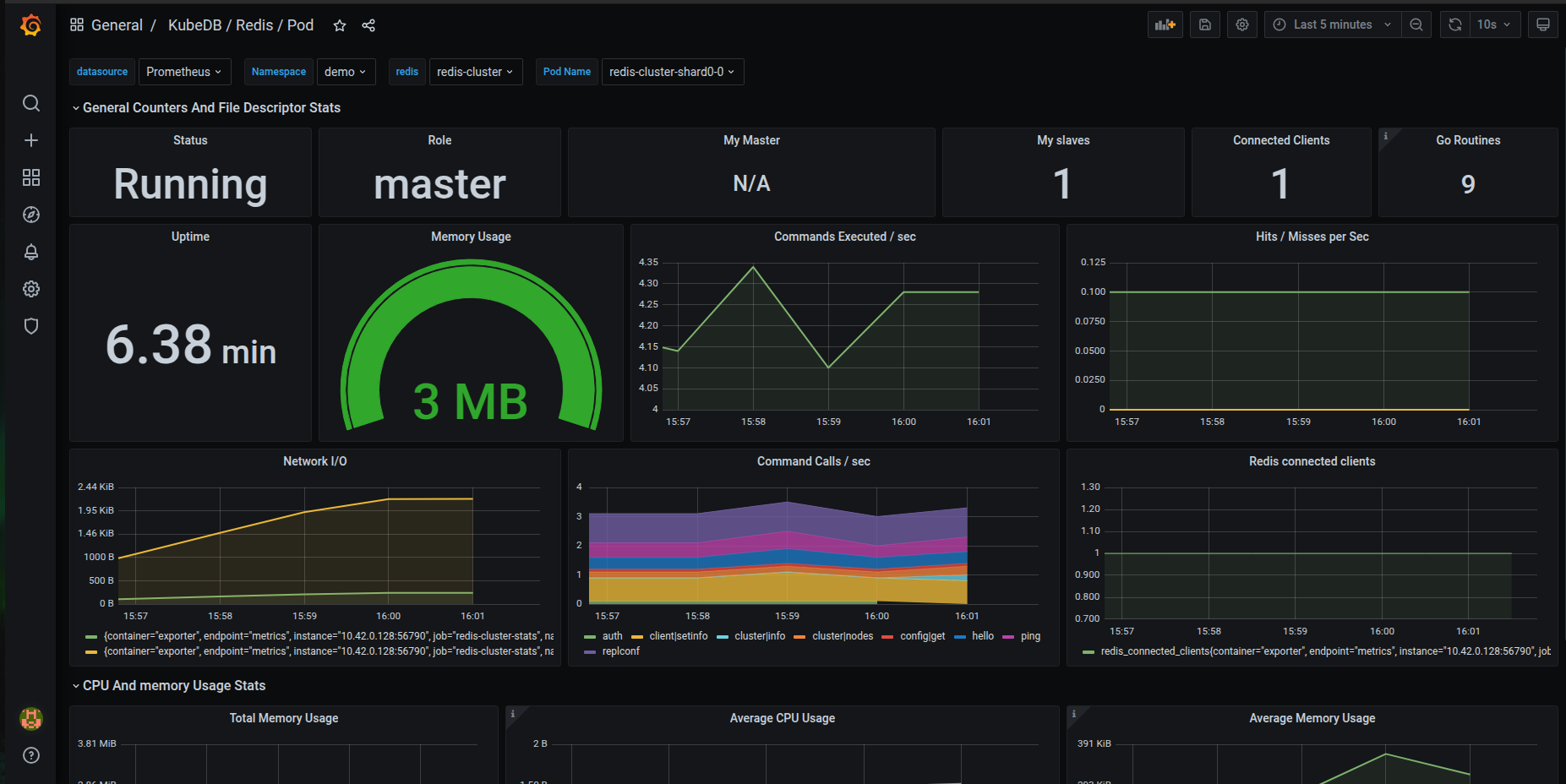

KubeDB / Redis / Pod — drill into a specific pod:

• General Counters And File Descriptor Stats — status, role (master/slave), my master, my slaves, connected clients, Go routines
• Uptime / Memory Usage / Commands Executed / Hits-Misses — pod uptime, memory usage, command execution rate, cache hit/miss rate
• Network I/O / Command Calls / Connected Clients — network throughput, per-command call breakdown, connected client count over time
• CPU And Memory Usage Stats — total memory usage, average CPU usage, average memory usage

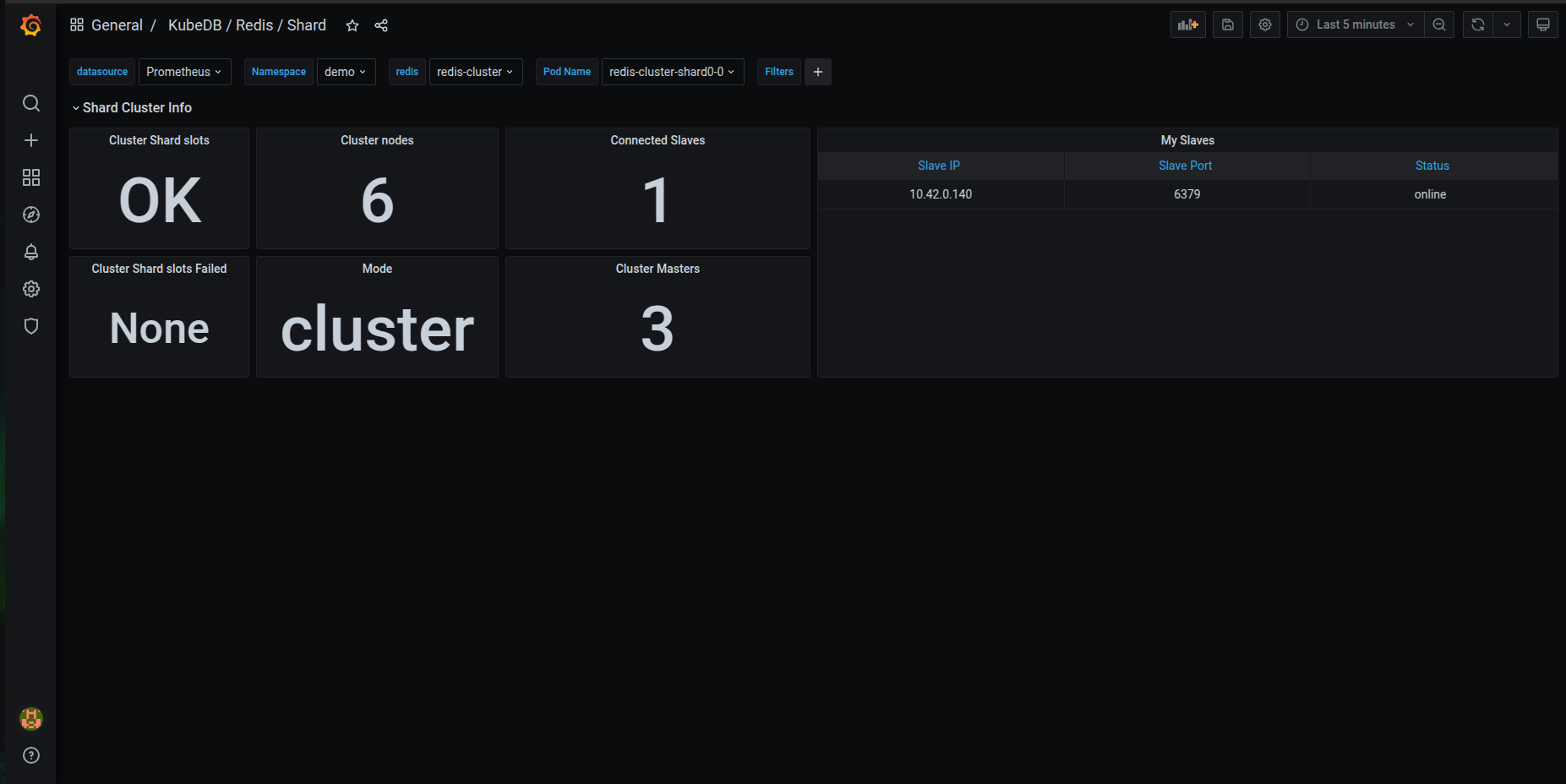

KubeDB / Redis / Shard — cluster shard health, populated because this tutorial deploys Redis in Cluster mode:

• Cluster Shard Slots / Cluster Shard Slots Failed — hash slot coverage and any failed slots
• Cluster Nodes / Cluster Masters — total nodes and master count in the cluster
• Connected Slaves / My Slaves — number of connected slaves and their IP, port, and online status
• Mode — confirms the instance is running in cluster mode

Cleaning up

# Remove the Redis instance
kubectl delete redis -n demo redis-cluster

# Remove namespaces
kubectl delete ns demo

# Uninstall the Grafana dashboards chart, if you used Option A
helm uninstall kubedb-grafana-dashboards-redis -n kubeops

# Uninstall grafana-operator (optional — skip if other DB guides on this cluster still use it)
helm uninstall grafana-operator -n kubeops

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops
