Redis Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed Redis instance using the redis-alerts Helm chart.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the alert-redis namespace:

  $ kubectl create ns alert-redis
  namespace/alert-redis created


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

Note: YAML files used in this tutorial are stored in docs/examples/redis folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBRedisPhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_redis_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBRedisPhaseNotReady/KubeDBRedisPhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

• KubeDB deploys Redis with a built-in redis_exporter sidecar that exposes metrics on port 56790.
• ServiceMonitor (named {redis-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the exporter every 10 seconds.
• PrometheusRule is created by the redis-alerts chart and contains all Redis alert definitions grouped by concern: database health, provisioner, ops-manager, and backups (Stash and KubeStash).
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy Redis with Monitoring Enabled

At first, let’s deploy a Redis database with monitoring enabled. Below is the Redis object we are going to create.

apiVersion: kubedb.com/v1
kind: Redis
metadata:
  name: rd-alert-demo
  namespace: alert-redis
spec:
  version: "6.0.20"
  deletionPolicy: WipeOut
  storage:
    storageClassName: "local-path"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        interval: 10s
        labels:
          release: prometheus

Here,

• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

Let’s create the Redis resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/redis/monitoring/rd-alert-demo.yaml
redis.kubedb.com/rd-alert-demo created

Now, wait for the database to go into Ready state.

$ kubectl get redis -n alert-redis rd-alert-demo
NAME            VERSION   STATUS   AGE
rd-alert-demo   6.0.20    Ready    62m

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-redis --selector="app.kubernetes.io/instance=rd-alert-demo"
NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)              AGE
rd-alert-demo         ClusterIP   10.43.236.232   <none>        6379/TCP             62m
rd-alert-demo-pods    ClusterIP   None            <none>        6379/TCP,16379/TCP   62m
rd-alert-demo-stats   ClusterIP   10.43.191.236   <none>        56790/TCP            62m

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-redis
NAME                  AGE
rd-alert-demo-stats   62m

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n alert-redis rd-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Install redis-alerts

The redis-alerts chart creates a PrometheusRule resource containing all Redis alert definitions grouped by concern: database health, provisioner, ops-manager, and backups (Stash / KubeStash).

Why the Helm release name matters

The chart derives the PromQL job/instance scoping (and the PrometheusRule name) from the Helm release name, not from a values field — so the release name must match the Redis object’s name (rd-alert-demo) for the rules to be correctly scoped to this instance.

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector.

Install

$ helm upgrade -i rd-alert-demo oci://ghcr.io/appscode-charts/redis-alerts \
    -n alert-redis \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set form.alert.appSuffix=rd-grafana-demo

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-redis
NAME            AGE
rd-alert-demo   60m

Confirm the release: prometheus label is present.

$ kubectl get prometheusrule -n alert-redis rd-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Confirm Prometheus loaded the rules

Port-forward the Prometheus UI and open the Status → Rule health page.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules?search=redis.

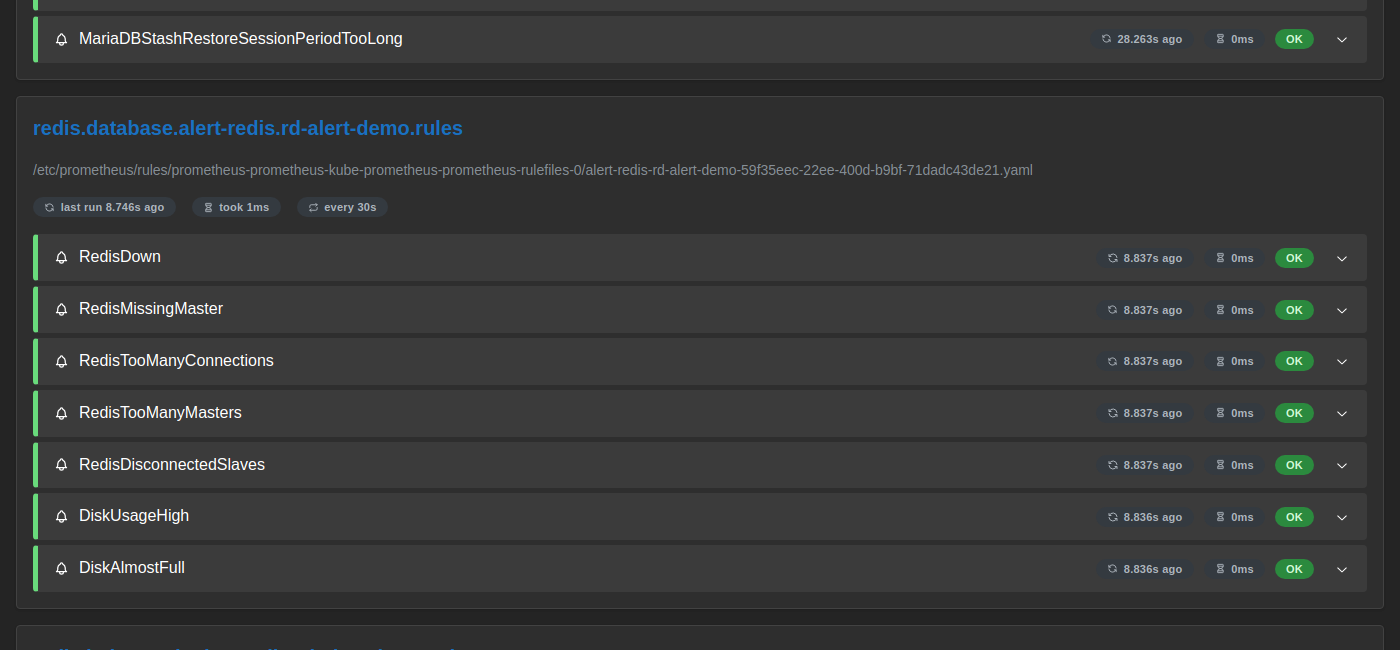

The redis.database.alert-redis.rd-alert-demo.rules group (and the accompanying redis.kubeStash.alert-redis.rd-alert-demo.rules group) is visible with all rules showing OK, confirming that Prometheus has loaded and is evaluating the Redis alert definitions every 30 seconds.

Verify End-to-End

1. Check the exporter is running

The exporter sidecar inside the Redis pod serves metrics at :56790/metrics. A value of redis_up 1 confirms the exporter can reach Redis.

$ kubectl exec -n alert-redis rd-alert-demo-0 -c exporter -- \
                                          wget -qO- localhost:56790/metrics | grep redis_up
# HELP redis_up Information about the Redis instance
# TYPE redis_up gauge
redis_up 1
# HELP redis_uptime_in_seconds uptime_in_seconds metric
# TYPE redis_uptime_in_seconds gauge
redis_uptime_in_seconds 2591

2. Check the Prometheus target is UP

Open http://localhost:9090/targets?search=rd-alert-demo-stats. Prometheus discovers more than 20 scrape pools on this cluster, so it will ask you to pick one from the dropdown — select serviceMonitor/alert-redis/rd-alert-demo-stats/0.

The target serviceMonitor/alert-redis/rd-alert-demo-stats/0 shows UP, confirming metrics are being scraped from rd-alert-demo-0 in the alert-redis namespace.

3. Confirm all Redis alerts are inactive

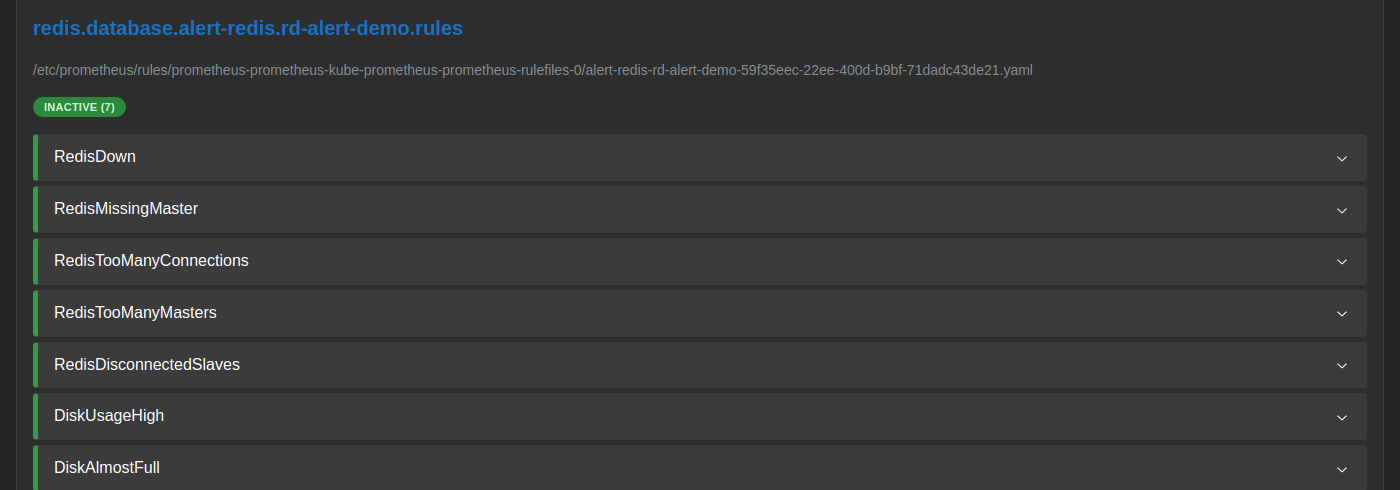

Open http://localhost:9090/alerts?search=redis to see the Redis alert groups.

All 7 rules in the redis.database group show INACTIVE (7), meaning the database is healthy and no thresholds are breached.

4. Check AlertManager

Port-forward AlertManager to view any currently firing alerts.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

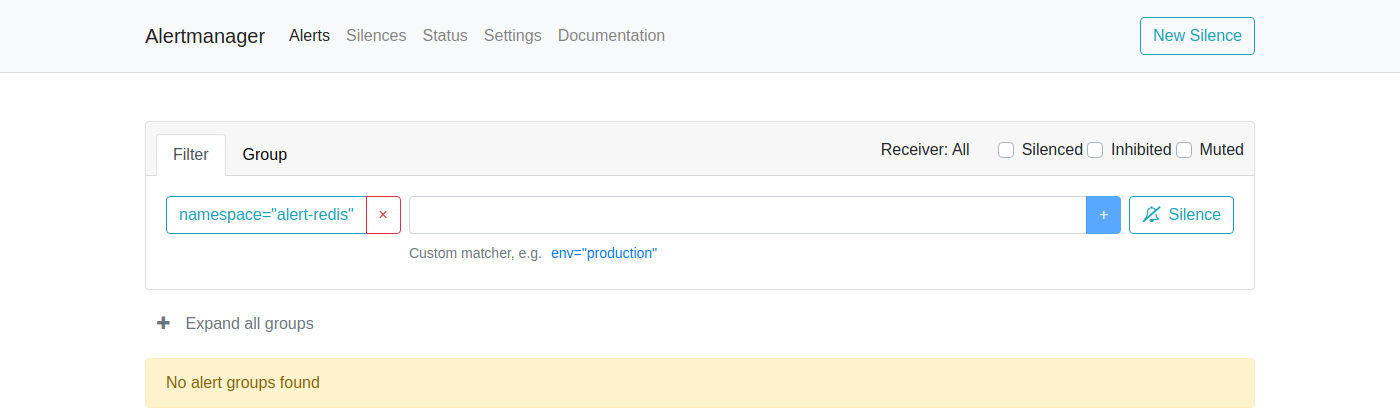

Open http://localhost:9093. With a healthy Redis instance, no alerts for rd-alert-demo will be listed here.

Simulating a Firing Alert

The previous section confirmed that all alerts are INACTIVE while the database is healthy. This section walks through deliberately triggering the RedisDown critical alert so you can observe the full alert lifecycle — from firing in Prometheus through to the AlertManager dashboard — and then resolve it.

Unlike some other database exporters, the Redis exporter runs as a separate sidecar container that keeps running fine even if the main redis container crashes and gets restarted by Kubernetes. Because RedisDown requires the outage to persist for for: 2m (not instant), and Kubernetes tends to restart a crashed container within a few seconds, a single redis-cli shutdown is not reliable — confirmed live: one isolated shutdown attempt produced zero pod restarts over what should have been a full window (the container came back before the next scrape landed), while a sustained loop reliably kept it down and fired the alert on the very next try. Don’t trust a one-shot kill for this alert; always use the loop below for the full duration.

1. Stop the Redis process repeatedly

Shut down the redis process inside the pod. This crashes the main container so the exporter sidecar can no longer reach it and reports redis_up 0 on the next scrape, while Kubernetes restarts the crashed container in the background.

$ kubectl exec -n alert-redis rd-alert-demo-0 -c redis -- redis-cli shutdown nosave

Because Kubernetes restarts the container quickly, repeat this command every second for at least two and a half minutes to keep Redis down continuously long enough for the for: 2m window on RedisDown to be satisfied — confirmed live at exactly this cadence:

$ end=$(( $(date +%s) + 150 ))
while [ $(date +%s) -lt $end ]; do
    kubectl exec -n alert-redis rd-alert-demo-0 -c redis -- redis-cli shutdown nosave >/dev/null 2>&1
    sleep 1
done

Run this in the background (or a separate terminal) and let it run for the full 150 seconds before moving to the next step — stopping early risks landing back in the same “restarted before the next scrape” gap described above.

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts?search=redis.

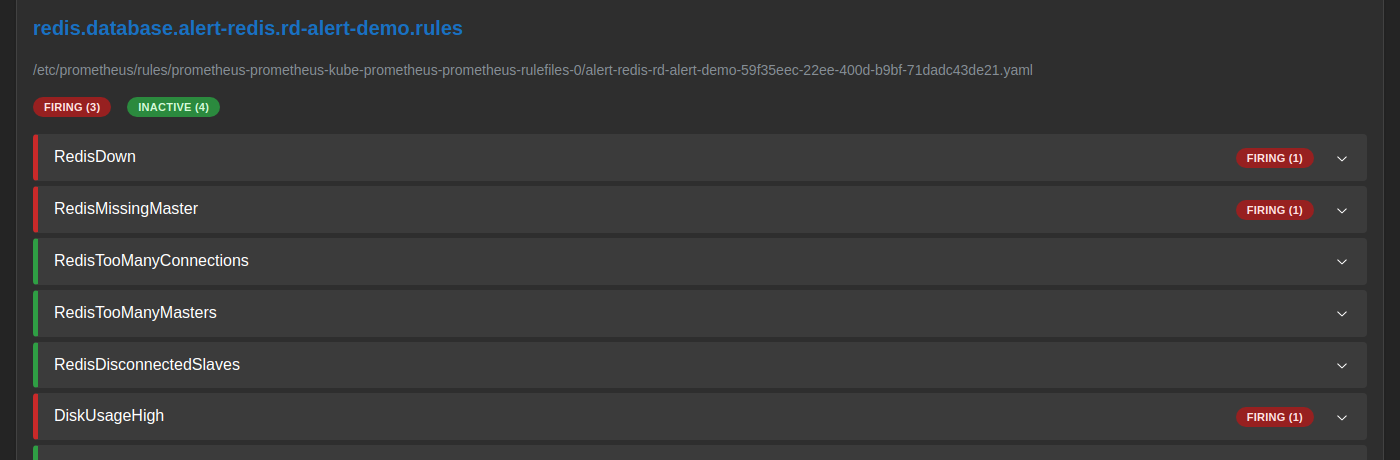

RedisDown moves from INACTIVE to FIRING once the redis_up == 0 condition has held continuously for the configured for: 2m duration. RedisMissingMaster fires alongside it, since with no master node visible the cluster is also missing a master.

3. Check the AlertManager dashboard

Open http://localhost:9093/#/alerts?filter=%7Bapp_namespace%3D%22alert-redis%22%7D.

Note: like several other *-alerts charts in this project (e.g. Cassandra), Redis’s operator-sourced alerts carry app_namespace rather than a plain namespace label — filtering on namespace="alert-redis" silently returns nothing (no error, just an empty “No alert groups found” that looks identical to “healthy”) even while alerts are actively firing. Always filter/group on app_namespace here.

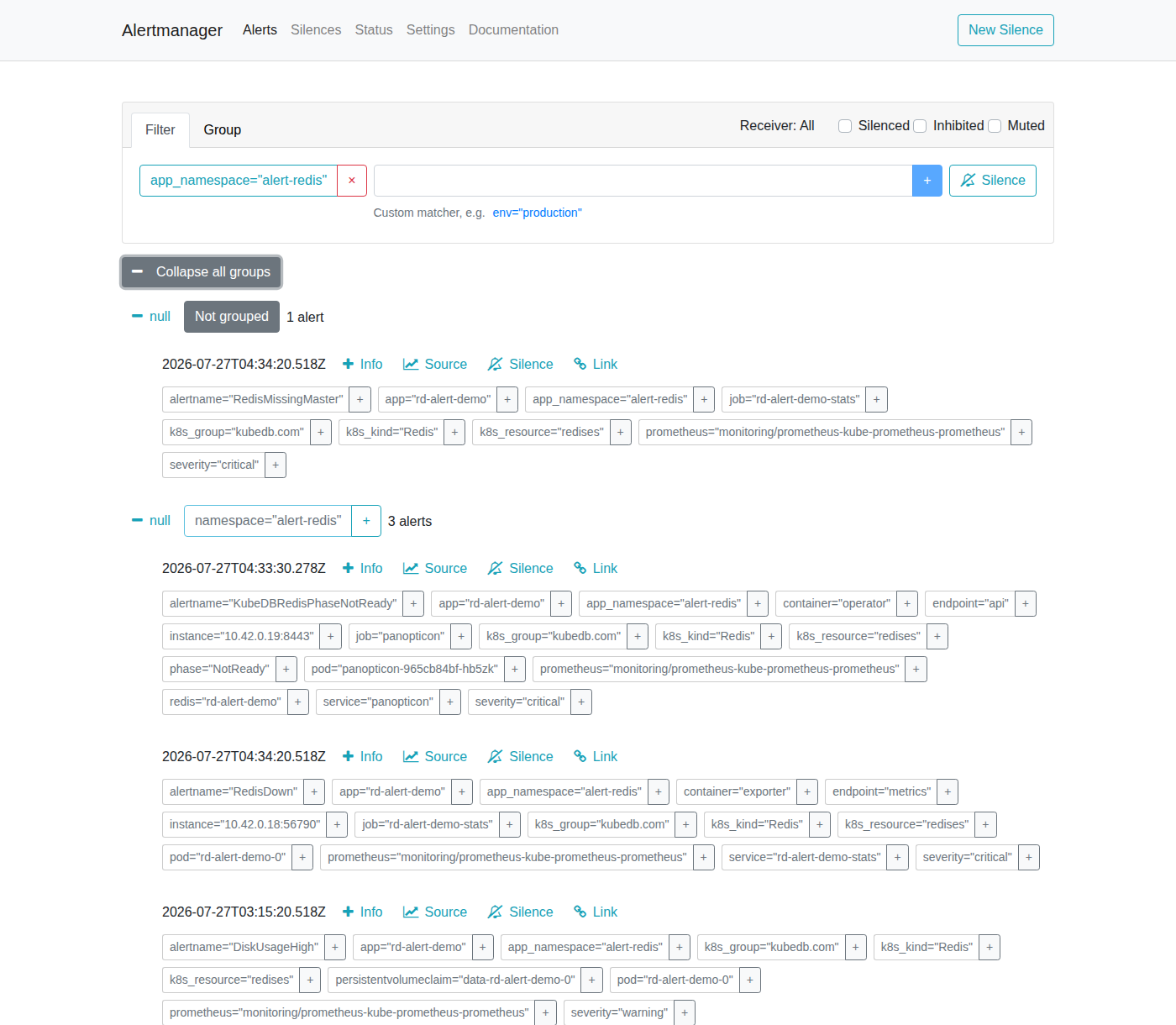

AlertManager shows RedisDown and RedisMissingMaster together (confirmed live — dropping to zero visible master nodes trips both at once), alongside KubeDBRedisPhaseNotReady (the KubeDB operator’s own view that the pod isn’t ready) and, if your cluster happens to have real disk pressure at the time, possibly DiskUsageHigh too — that one is unrelated to this simulation and reflects genuine node-disk usage, not a side effect of the kill loop. Each alert card displays:

• Severity: critical (warning for DiskUsageHigh)
• pod: rd-alert-demo-0 in the alert-redis namespace
• job: rd-alert-demo-stats
• Started: timestamp when the alert first fired

AlertManager routes these alerts to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alerts are visible here but silently dropped.

4. Restore Redis

Let the loop from step 1 finish (or stop it early) — the container’s own restart policy brings redis back up on its own; no manual pod deletion is needed.

$ kubectl get pod -n alert-redis rd-alert-demo-0
NAME              READY   STATUS    RESTARTS   AGE
rd-alert-demo-0   2/2     Running   17          2d16h

If it’s still cycling through CrashLoopBackOff a while after the loop has stopped, Kubernetes’ exponential backoff is just catching up — wait a bit longer before concluding something’s wrong. Once redis_up returns to 1 continuously, Prometheus marks the alert INACTIVE again and AlertManager sends a resolved notification to all receivers.

Alert Reference

All alerts are scoped to the rd-alert-demo instance in the alert-redis namespace via the PromQL label filters job="rd-alert-demo-stats" and namespace="alert-redis".

Database Group

Fired based on live metrics from the Redis exporter.

Provisioner Group

Monitors the KubeDB operator’s view of the Redis resource phase.

OpsManager Group

Tracks RedisOpsRequest lifecycle during upgrades, scaling, and reconfiguration.

Stash Group

Tracks Stash-driven backup/restore health for this instance. (You do not need to configure backups to see these rules; they are included in the PrometheusRule regardless.)

KubeStash Group

Tracks KubeStash-driven backup/restore health for this instance. Same semantics as the Stash group above, sourced from KubeStash metrics instead.

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          redisTooManyConnections:
            enabled: true
            duration: "5m"
            val: 90        # fire at 90% of maxclients instead of the default 80%
            severity: warning
      opsManager:
        enabled: "none"    # disable all ops-manager alerts

$ helm upgrade rd-alert-demo oci://ghcr.io/appscode-charts/redis-alerts \
    -n alert-redis \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the redis-alerts release
$ helm uninstall rd-alert-demo -n alert-redis

# Remove the Redis instance
$ kubectl delete redis -n alert-redis rd-alert-demo

# Delete namespace
$ kubectl delete ns alert-redis

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring
