Qdrant Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed Qdrant instance using the qdrant-alerts Helm chart. This chart also bundles a Grafana dashboard that it imports automatically through a post-install Job — no separate dashboard chart is required.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the demo namespace:

  $ kubectl create ns demo
  namespace/demo created


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• You will also need a Grafana API key / token with Editor permission so the chart’s dashboard-import Job can push the dashboard. See Step 1 below.

Note: YAML files used in this tutorial are stored in docs/examples/qdrant folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBQdrantPhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_qdrant_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBQdrantPhaseNotReady/KubeDBQdrantPhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

• KubeDB deploys Qdrant with metrics served natively by Qdrant itself on its API port (6333) — no separate exporter sidecar is required.
• ServiceMonitor (named {qdrant-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the metrics endpoint every 10 seconds. It is pre-configured to send a Bearer token (read from the {qdrant-name}-auth Secret’s api-key key) with every scrape request, since Qdrant’s /metrics endpoint requires authentication.
• PrometheusRule is created by the qdrant-alerts chart and contains all Qdrant alert definitions grouped by concern: database health and provisioner.
• Dashboard-import Job — when grafana.enabled is true, the chart also creates a one-shot Job that POSTs a bundled dashboard JSON straight to your Grafana instance’s /api/dashboards/import endpoint.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy Qdrant with Monitoring Enabled

At first, let’s deploy a Qdrant database with monitoring enabled. Below is the Qdrant object we are going to create.

apiVersion: kubedb.com/v1alpha2
kind: Qdrant
metadata:
  name: qd-alert-demo
  namespace: demo
spec:
  version: "1.17.0"
  storage:
    storageClassName: "local-path"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      exporter:
        port: 6333
      serviceMonitor:
        interval: 10s
        labels:
          release: prometheus
  deletionPolicy: WipeOut

Here,

• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.exporter.port: 6333 tells KubeDB which port to scrape metrics from — Qdrant’s own API port.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

Let’s create the Qdrant resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/qdrant/monitoring/qdrant-monitoring.yaml
qdrant.kubedb.com/qd-alert-demo created

Now, wait for the database to go into Ready state.

$ kubectl get qdrant -n demo qd-alert-demo
NAME            VERSION   STATUS   AGE
qd-alert-demo   1.17.0    Ready    37s

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=qd-alert-demo"
NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
qd-alert-demo         ClusterIP   10.43.182.24    <none>        6333/TCP,6334/TCP   43s
qd-alert-demo-pods    ClusterIP   None            <none>        6335/TCP            43s
qd-alert-demo-stats   ClusterIP   10.43.199.143   <none>        6333/TCP            43s

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n demo
NAME                  AGE
qd-alert-demo-stats   40s

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n demo qd-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Because Qdrant’s /metrics endpoint requires authentication, KubeDB pre-wires the ServiceMonitor’s scrape endpoint with a Bearer token sourced from the {qdrant-name}-auth Secret:

$ kubectl get servicemonitor -n demo qd-alert-demo-stats -o jsonpath='{.spec.endpoints[0].authorization}'
{"credentials":{"key":"api-key","name":"qd-alert-demo-auth"},"type":"Bearer"}

No manual credential wiring is required — Prometheus authenticates automatically.

Step 1 — Create a Grafana API Key

The chart’s dashboard-import Job authenticates to Grafana with a bearer token, so create one first.

• Grafana 9+: Administration → Service accounts → Add service account → role Editor → Add token. Copy the token.

• Grafana 8.x and earlier (no Service Accounts UI, e.g. the bundled kube-prometheus-stack Grafana 7.5.5): use the legacy API Keys endpoint instead:

  # Port-forward Grafana
  $ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80&

  # Retrieve the admin password
  $ kubectl get secret -n monitoring prometheus-grafana \
      -o jsonpath='{.data.admin-password}' | base64 -d && echo

  # Create an API key with Editor role
  $ curl -s -X POST -H "Content-Type: application/json" \
      -u admin:<grafana_password> \
      http://localhost:3000/api/auth/keys \
      -d '{"name":"qdrant-alerts-demo","role":"Editor"}'
  # Note the returned "key"

  # Stop the port-forward
  $ kill %1


Either way, you end up with a bearer token to use as grafana.apikey below.

Step 2 — Install qdrant-alerts

The qdrant-alerts chart creates a PrometheusRule resource containing all Qdrant alert definitions grouped by concern: database health and provisioner.

Why the Helm release name matters

The chart derives the PromQL job/instance scoping (and the PrometheusRule name) from the Helm release name, not from a values field — so the release name must match the Qdrant object’s name (qd-alert-demo) for the rules to be correctly scoped to this instance. Do not use --set metadata.release.name=... to try to achieve this — that values field is a no-op for query scoping; only the actual Helm release name (the first positional argument to helm upgrade -i) is used by the chart’s templates.

The chart’s default label is release: prometheus already, matching the Prometheus ruleSelector on this cluster, but we set it explicitly below for clarity and portability.

Install

$ helm upgrade -i qd-alert-demo oci://ghcr.io/appscode-charts/qdrant-alerts \
    -n demo \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set grafana.enabled=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<token-from-above>" \
    --set grafana.jobName=qd-alert-demo-stats \
    --set form.alert.appSuffix=qd-grafana-demo

To install alerts only, without the dashboard, omit the grafana.* flags (or set --set grafana.enabled=false).

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n demo
NAME            AGE
qd-alert-demo   30s

Confirm the release: prometheus label is present.

$ kubectl get prometheusrule -n demo qd-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Verify the dashboard-import Job

$ kubectl get job -n demo
NAME                    STATUS     COMPLETIONS   AGE
qd-alert-demo-post-job  Complete   1/1           17s

$ kubectl logs -n demo job/qd-alert-demo-post-job
{"pluginId":"","title":"kubedb.com / Qdrant / demo / qd-alert-demo","imported":true, ...}

A "imported":true response confirms the dashboard kubedb.com / Qdrant / demo / qd-alert-demo now exists in Grafana.

Confirm Prometheus loaded the rules

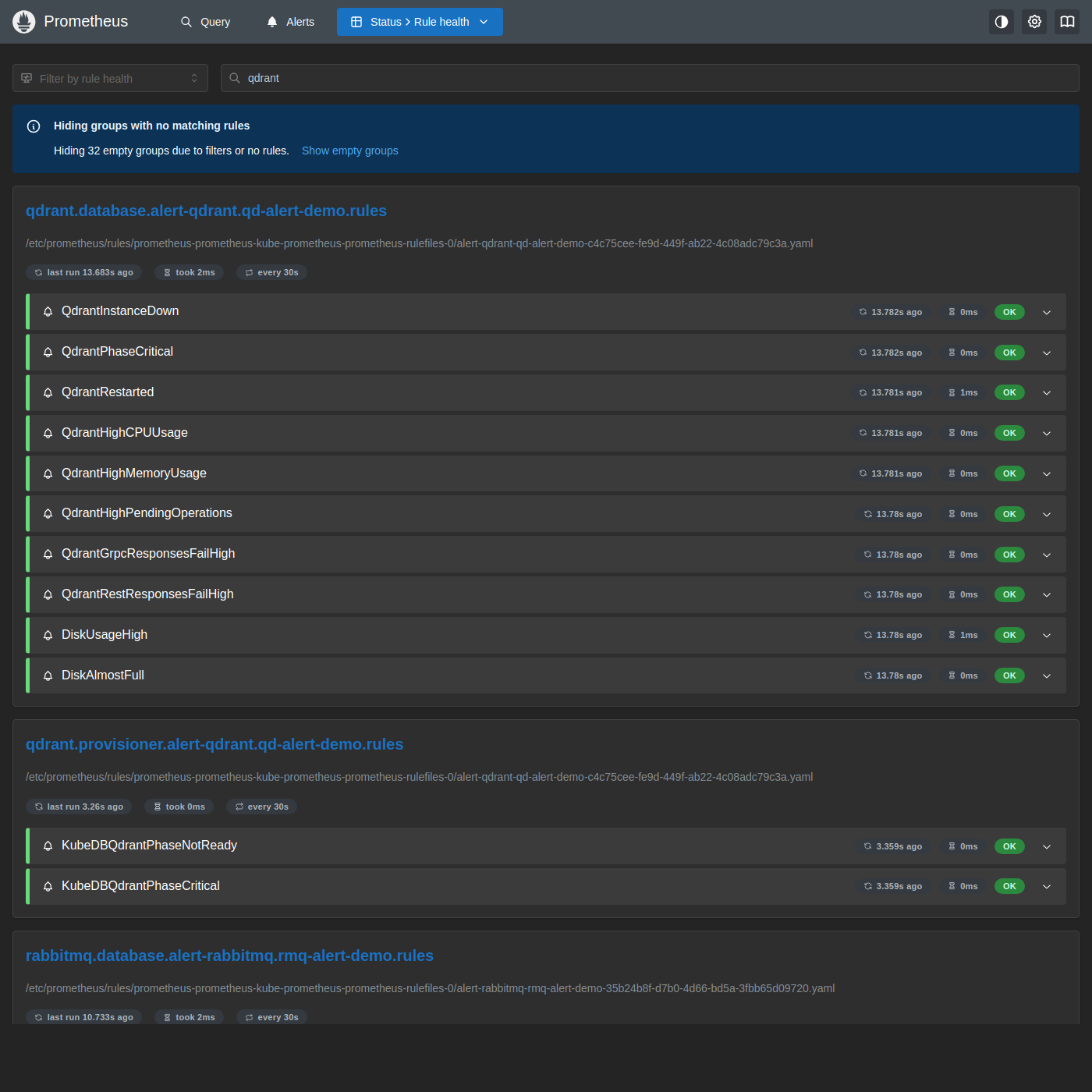

Port-forward the Prometheus UI and open the Status → Rule health page.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules?search=qdrant.

Both the qdrant.database.demo.qd-alert-demo.rules and qdrant.provisioner.demo.qd-alert-demo.rules groups are visible with all rules showing OK, confirming that Prometheus has loaded and is evaluating the Qdrant alert definitions every 30 seconds.

Verify End-to-End

1. Check the metrics endpoint

Qdrant serves its own metrics; there is no separate exporter sidecar to check. Because the endpoint requires a Bearer token, fetch the API key from the auth Secret first.

$ kubectl get secret -n demo qd-alert-demo-auth -o jsonpath='{.data.api-key}' | base64 -d
38XLVOctmGr5lQzT

$ kubectl port-forward -n demo svc/qd-alert-demo-stats 6333:6333 &
$ curl -s -H "Authorization: Bearer 38XLVOctmGr5lQzT" localhost:6333/metrics | head -5
# HELP app_info information about qdrant server
# TYPE app_info gauge
app_info{name="qdrant",version="1.17.0"} 1
# HELP collections_total number of collections
# TYPE collections_total gauge

A successful 200 response with Qdrant metrics confirms Prometheus can scrape this endpoint using the same Bearer token wired into the ServiceMonitor.

2. Check the Prometheus target is UP

Open http://localhost:9090/targets?search=qd-alert-demo.

The target serviceMonitor/demo/qd-alert-demo-stats/0 shows UP, confirming metrics are being scraped from qd-alert-demo-0 in the demo namespace.

3. Confirm Qdrant alerts

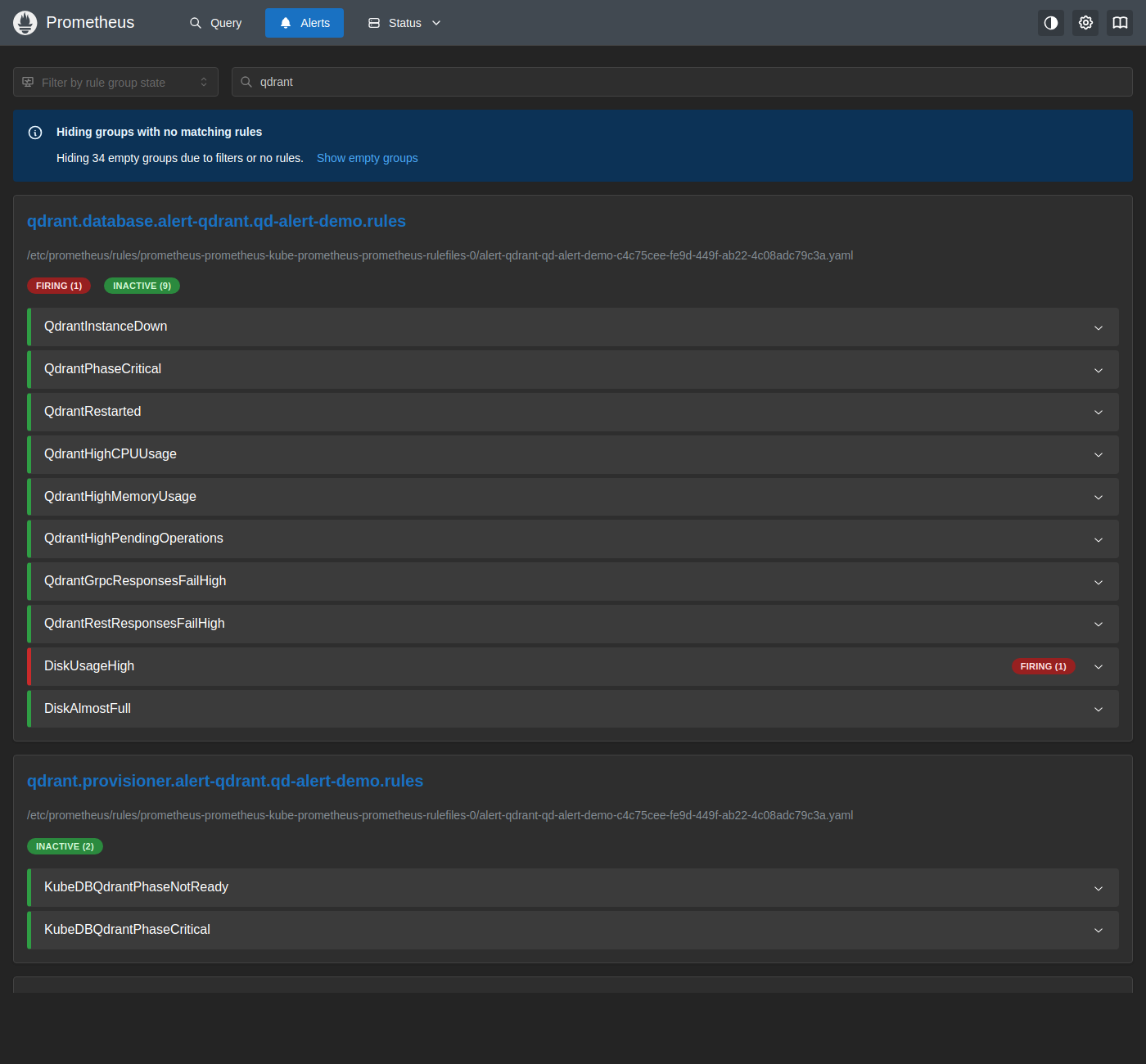

Open http://localhost:9090/alerts?search=qdrant to see the Qdrant alert groups.

Most rules in the qdrant.database group show INACTIVE, meaning the corresponding thresholds are not breached. On the live cluster used to capture this screenshot, DiskUsageHigh was genuinely FIRING — the local-path StorageClass reports the underlying node filesystem’s usage/capacity rather than the PVC’s logical 1Gi request, and the shared demo node happened to be above the 80% threshold at the time. This is a real, useful illustration of the alert doing its job: it is not specific to Qdrant, but to any workload using local-path on a node with high disk utilization. In production, prefer a StorageClass that enforces real capacity accounting (e.g. most CSI drivers) if you rely on DiskUsageHigh/DiskAlmostFull for capacity planning.

4. Check AlertManager

Port-forward AlertManager to view any currently firing alerts.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093. With a healthy Qdrant instance, only pre-existing environmental alerts (such as DiskUsageHigh, if applicable to your node) will be listed here — no Qdrant-availability alert should be present.

Simulating a Firing Alert

This section walks through deliberately triggering the QdrantInstanceDown critical alert so you can observe the full alert lifecycle — from firing in Prometheus through to the AlertManager dashboard — and then resolve it.

1. Stop the Qdrant process

The Qdrant pod runs a single container (no exporter sidecar), and its main process runs as PID 1. A plain kill 1 isn’t available since the image ships no kill binary, so use the bash built-in instead. A single SIGTERM restarts fast enough (well under one 10s scrape interval) that Prometheus may never observe a failed scrape, so repeat the signal a few times to keep the container down for longer than the alert’s for: 30s window:

$ for i in $(seq 1 15); do
    kubectl exec -n demo qd-alert-demo-0 -c qdrant -- bash -c 'kill -TERM 1'
    sleep 3
  done

This repeatedly restarts the container faster than it can finish starting up, eventually pushing it into CrashLoopBackOff, which keeps the metrics endpoint unreachable for well over 30 seconds.

$ kubectl get pod -n demo qd-alert-demo-0
NAME              READY   STATUS      RESTARTS      AGE
qd-alert-demo-0   0/1     Completed   3 (30s ago)   56m

Wait 30–60 seconds for the next Prometheus scrape cycle (configured at 10s) and rule-evaluation cycle (30s) to register the failure.

2. Watch the alert fire in Prometheus

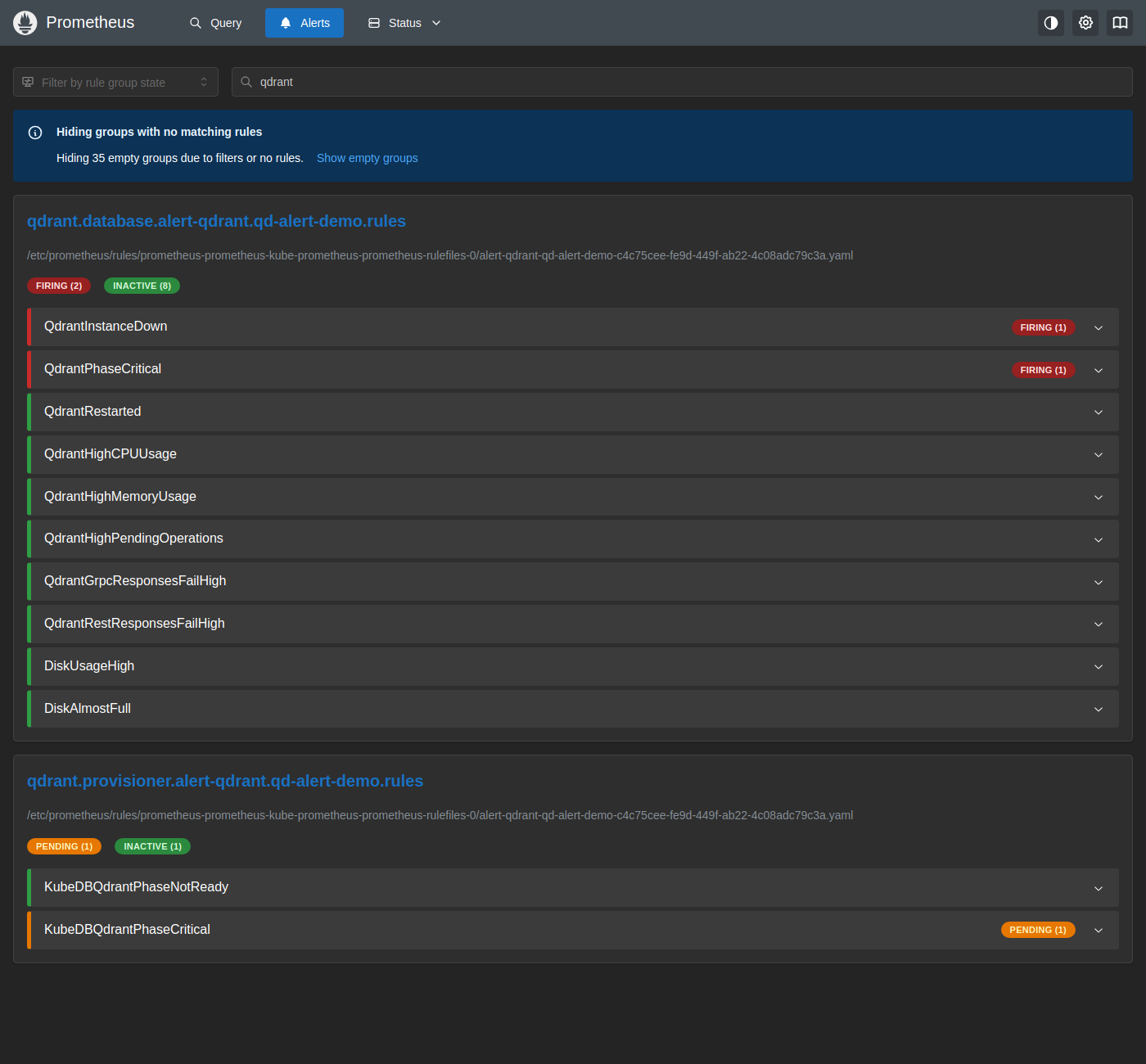

Open http://localhost:9090/alerts?search=qdrant.

Both QdrantInstanceDown (the scrape-target-down alert, for: 30s) and QdrantPhaseCritical (driven by the KubeDB operator’s own view of the resource phase, for: 1m) move to FIRING once their respective durations elapse.

3. Check the AlertManager dashboard

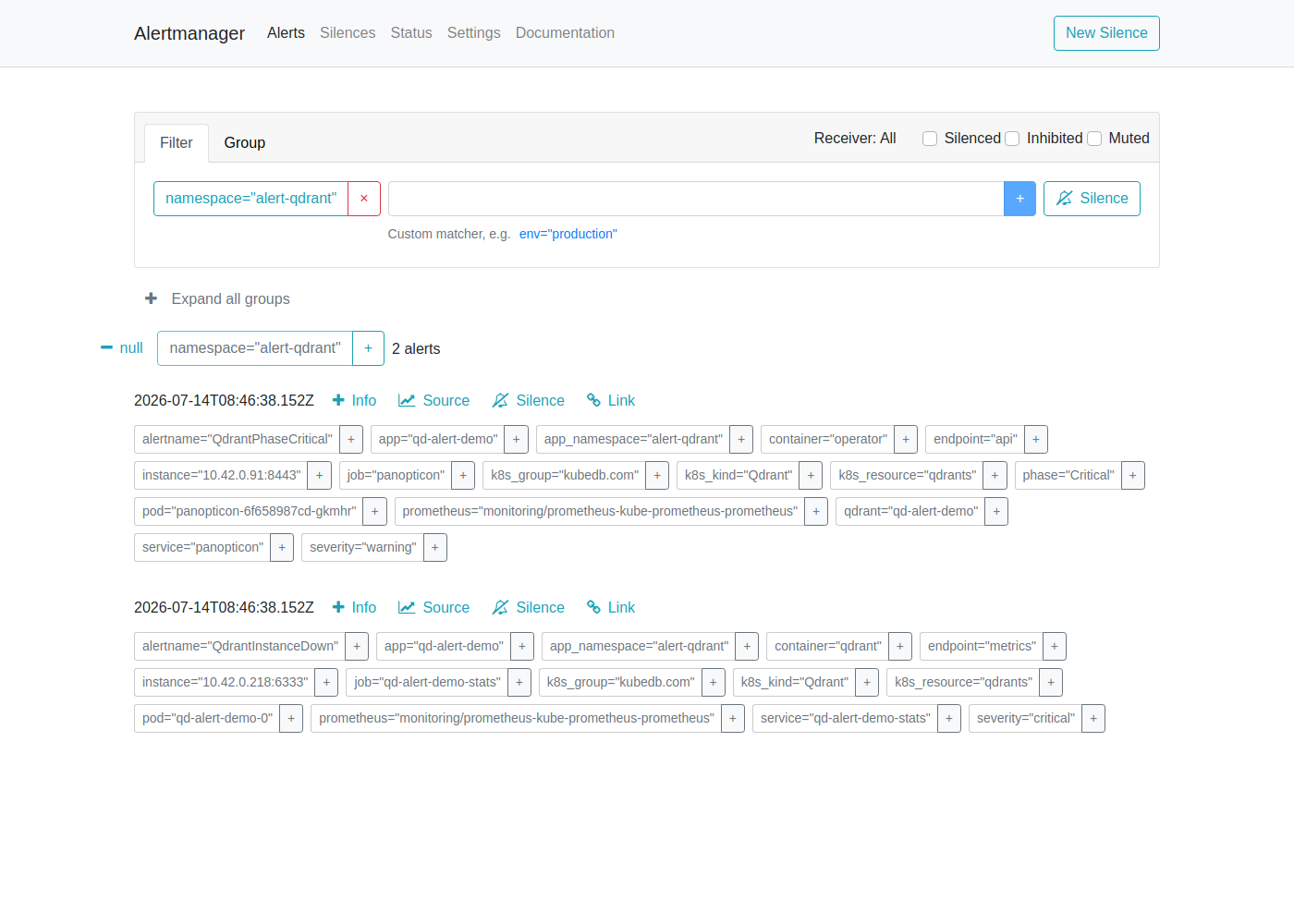

Open http://localhost:9093.

AlertManager shows the QdrantInstanceDown alert. The alert card displays:

• Severity: critical
• Instance: qd-alert-demo-0 in the alert-qdrant namespace
• job: qd-alert-demo-stats
• Started: timestamp when the alert first fired

AlertManager routes this alert to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alert is visible here but silently dropped.

4. Restore Qdrant

Delete the pod so KubeDB recreates it cleanly.

$ kubectl delete pod -n demo qd-alert-demo-0

Once the metrics target returns to up, Prometheus marks the alerts INACTIVE again and AlertManager sends a resolved notification to all receivers.

Alert Reference

All alerts are scoped to the qd-alert-demo instance in the demo namespace via PromQL label filters such as job="qd-alert-demo-stats", app="qd-alert-demo", and namespace="demo".

Database Group

Fired based on live metrics from Qdrant itself, the KubeDB operator’s status reporting, and node-level cAdvisor/kubelet metrics.

Provisioner Group

Monitors the KubeDB operator’s view of the Qdrant resource phase.

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          qdrantHighCPUUsage:
            enabled: true
            duration: "5m"
            val: 90        # fire at 90% CPU instead of the default 80%
            severity: warning
          diskUsageHigh:
            enabled: true
            val: 90        # raise the disk-usage warning threshold to 90%
            duration: "1m"
            severity: warning
      provisioner:
        enabled: "none"    # disable all provisioner alerts

$ helm upgrade qd-alert-demo oci://ghcr.io/appscode-charts/qdrant-alerts \
    -n demo \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the qdrant-alerts release (PrometheusRule + dashboard-import Job)
$ helm uninstall qd-alert-demo -n demo

# Remove the imported Grafana dashboard (it is not removed by helm uninstall)
$ curl -s -X DELETE -H "Authorization: Bearer <grafana-token>" \
    http://localhost:3000/api/dashboards/uid/<uid>

# Remove the Qdrant instance
$ kubectl delete qdrant -n demo qd-alert-demo

# Delete namespace
$ kubectl delete ns demo

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring

Next Steps

• Monitor your Qdrant database with KubeDB using Prometheus operator.
• Detail concepts of Qdrant object.
• Want to hack on KubeDB? Check our contribution guidelines.
