New to KubeDB? Please start here.

MSSQLServer Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed Microsoft SQL Server instance using the mssqlserver-alerts Helm chart. This chart also bundles a Grafana dashboard that it imports automatically through a post-install Job — no separate dashboard chart is required.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Install cert-manager — MSSQLServer requires TLS, issued via a cert-manager Issuer.

• Deploy the database in the alert-mssqlserver namespace:

  $ kubectl create ns alert-mssqlserver
  namespace/alert-mssqlserver created


• Create a self-signed CA and an Issuer for MSSQLServer to use:

  $ openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout ./ca.key -out ./ca.crt -subj "/CN=MSSQLServer/O=kubedb"

  $ kubectl create secret tls mssqlserver-ca --cert=ca.crt --key=ca.key --namespace=alert-mssqlserver
  secret/mssqlserver-ca created

  $ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/mssqlserver/monitoring/mssqlserver-ca-issuer.yaml
  issuer.cert-manager.io/mssqlserver-ca-issuer created


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• You will also need a Grafana API key / token with Editor permission so the chart’s dashboard-import Job can push the dashboard. See Step 1 below.

Note: YAML files used in this tutorial are stored in docs/examples/mssqlserver folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBMSSQLServerPhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_mssqlserver_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBMSSQLServerPhaseNotReady/KubeDBMSSQLServerPhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

• KubeDB deploys MSSQLServer with a metrics-exporter sidecar (container exporter) that exposes metrics on the {mssqlserver-name}-stats service.
• ServiceMonitor (named {mssqlserver-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the exporter every 10 seconds.
• PrometheusRule is created by the mssqlserver-alerts chart and contains MSSQLServer alert definitions grouped by concern: database health, provisioner, and ops-manager. A fourth group (kubeStash) covers backup/restore alerts and is disabled for this tutorial.
• Dashboard-import Job — when grafana.enabled is true, the chart also creates a one-shot Job that POSTs a bundled dashboard JSON straight to your Grafana instance’s /api/dashboards/import endpoint.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy MSSQLServer with Monitoring Enabled

At first, let’s deploy an MSSQLServer instance with monitoring enabled. Below is the MSSQLServer object we are going to create.

apiVersion: kubedb.com/v1alpha2
kind: MSSQLServer
metadata:
  name: mssqlserver-alert-demo
  namespace: alert-mssqlserver
spec:
  version: "2025-cu0"
  replicas: 1
  storageType: Durable
  tls:
    issuerRef:
      name: mssqlserver-ca-issuer
      kind: Issuer
      apiGroup: "cert-manager.io"
    clientTLS: false
  podTemplate:
    spec:
      containers:
        - name: mssql
          env:
            - name: ACCEPT_EULA
              value: "Y"
            - name: MSSQL_PID
              value: Evaluation # Change to a licensed edition for production use
  storage:
    storageClassName: "local-path"
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.tls.issuerRef points at the mssqlserver-ca-issuer Issuer created above, so the SQL Server endpoint is served over TLS.
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.
• ACCEPT_EULA=Y and MSSQL_PID are required by the upstream SQL Server image itself, not KubeDB — see Microsoft’s environment variable reference for valid MSSQL_PID values.

Let’s create the MSSQLServer resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/mssqlserver/monitoring/mssqlserver-alert-demo.yaml
mssqlserver.kubedb.com/mssqlserver-alert-demo created

Wait for the database to go into Ready state.

$ kubectl get mssqlserver -n alert-mssqlserver mssqlserver-alert-demo
NAME                     VERSION    STATUS   AGE
mssqlserver-alert-demo   2025-cu0   Ready    5m

First boot takes several minutes — SQL Server doesn’t write to its error log or create system databases (master.mdf, msdbdata.mdf, …) until it’s actually ready to initialize, so kubectl get pods showing 2/2 Running doesn’t by itself mean the instance is Ready yet. Give it 3-5 minutes on a cold node before assuming something’s stuck.

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-mssqlserver --selector="app.kubernetes.io/instance=mssqlserver-alert-demo"
NAME                             TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
mssqlserver-alert-demo           ClusterIP   10.43.10.20    <none>        1433/TCP    5m
mssqlserver-alert-demo-pods      ClusterIP   None           <none>        1433/TCP    5m
mssqlserver-alert-demo-stats     ClusterIP   10.43.10.21    <none>        56790/TCP   5m

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-mssqlserver
NAME                           AGE
mssqlserver-alert-demo-stats   5m

$ kubectl get servicemonitor -n alert-mssqlserver mssqlserver-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Create a Grafana API Key

The chart’s dashboard-import Job authenticates to Grafana with a bearer token, so create one first.

• Grafana 9+: Administration → Service accounts → Add service account → role Editor → Add token. Copy the token.

• Grafana 8.x and earlier (no Service Accounts UI, e.g. the bundled kube-prometheus-stack Grafana 7.5.5): use the legacy API Keys endpoint instead:

  # Port-forward Grafana
  $ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80&

  # Retrieve the admin password
  $ kubectl get secret -n monitoring prometheus-grafana \
      -o jsonpath='{.data.admin-password}' | base64 -d && echo

  # Create an API key with Editor role
  $ curl -s -X POST -H "Content-Type: application/json" \
      -u admin:<grafana_password> \
      http://localhost:3000/api/auth/keys \
      -d '{"name":"mssqlserver-alerts-demo","role":"Editor"}'
  # Note the returned "key"

  # Stop the port-forward
  $ kill %1


Either way, you end up with a bearer token to use as grafana.apikey below.

Step 2 — Install mssqlserver-alerts

Why the Helm release name matters

The chart derives the PrometheusRule name and scopes every PromQL expression (via job="{release-name}-stats" / app="{release-name}") from the Helm release name — so the release name must match the MSSQLServer object’s name (mssqlserver-alert-demo).

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector — installing without --set form.alert.labels.release=prometheus produces a PrometheusRule that Prometheus never loads, until the label is corrected with a helm upgrade.

Install

This tutorial covers the database, provisioner, and opsManager alert groups; the kubeStash group is disabled below.

$ helm upgrade -i mssqlserver-alert-demo appscode/mssqlserver-alerts \
    -n alert-mssqlserver \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set form.alert.groups.kubeStash.enabled=none \
    --set grafana.enabled=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<token-from-above>" \
    --set grafana.jobName=mssqlserver-alert-demo-stats \
    --set form.alert.appSuffix=ms-grafana-demo

To install alerts only, without the dashboard, omit the grafana.* flags (or set --set grafana.enabled=false).

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-mssqlserver
NAME                       AGE
mssqlserver-alert-demo     30s

$ kubectl get prometheusrule -n alert-mssqlserver mssqlserver-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Verify the dashboard-import Job

$ kubectl get job -n alert-mssqlserver
NAME                              STATUS     COMPLETIONS   AGE
mssqlserver-alert-demo-post-job   Complete   1/1           17s

$ kubectl logs -n alert-mssqlserver job/mssqlserver-alert-demo-post-job
{"pluginId":"","title":"kubedb.com / MSSQLServer / alert-mssqlserver / mssqlserver-alert-demo","imported":true, ...}

A "imported":true response confirms the dashboard kubedb.com / MSSQLServer / alert-mssqlserver / mssqlserver-alert-demo now exists in Grafana.

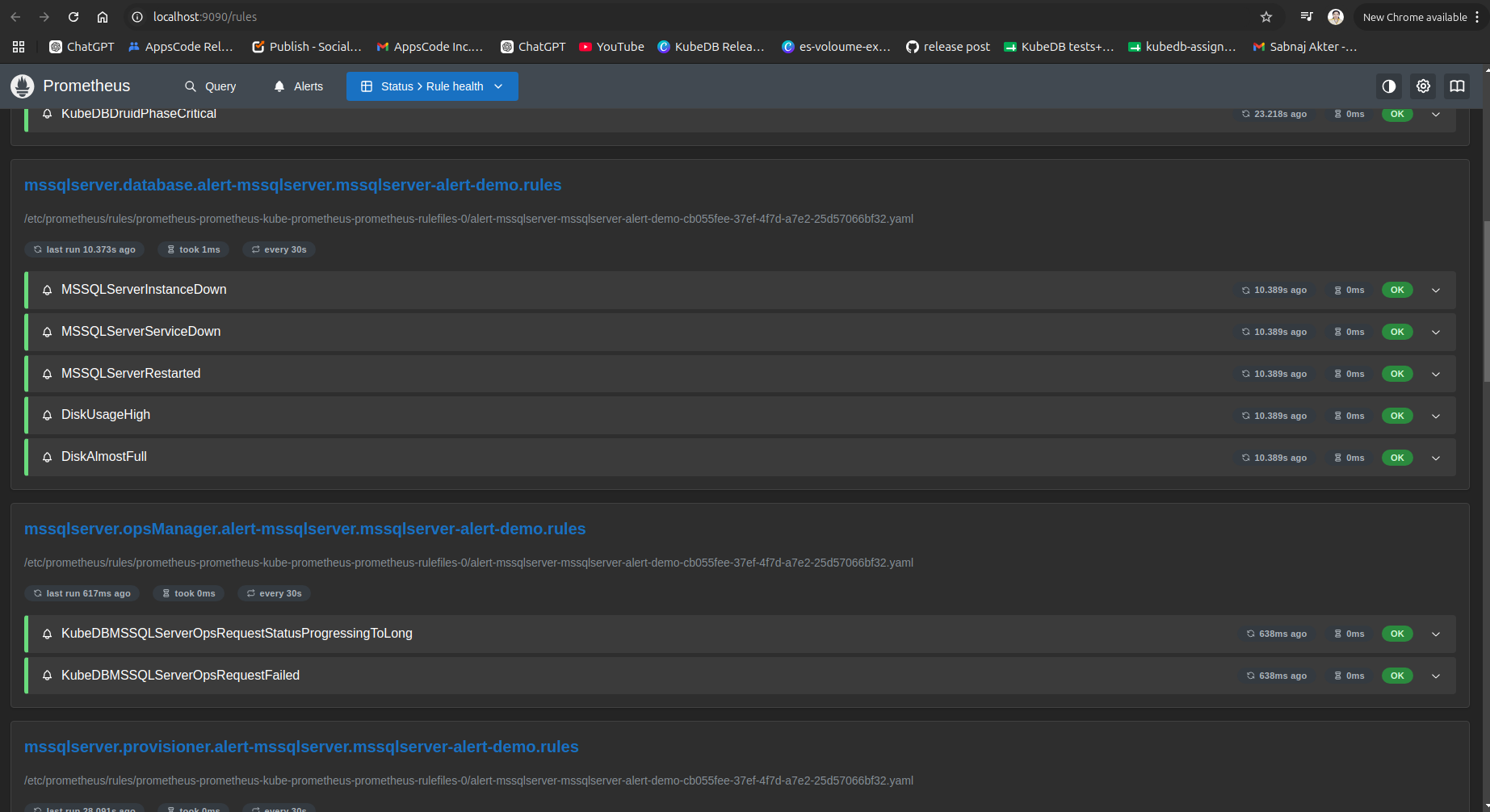

Confirm Prometheus loaded the rules

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules and locate the mssqlserver.database, mssqlserver.provisioner, and mssqlserver.opsManager groups.

All three groups should show OK (kubeStash is absent since it was disabled at install time).

Verify End-to-End

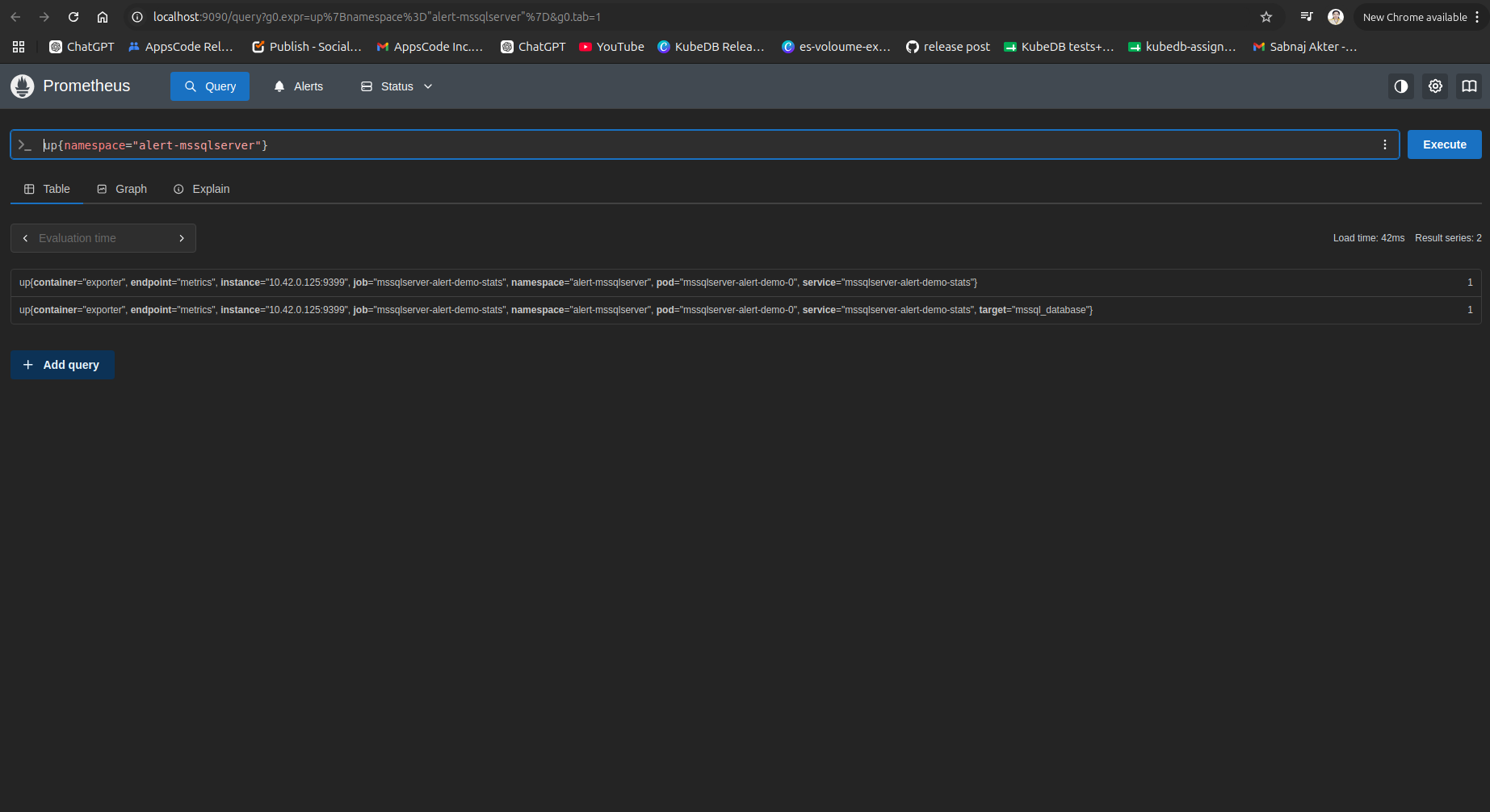

1. Check the Prometheus target is UP

Open http://localhost:9090/query?g0.expr=up%7Bnamespace%3D%22alert-mssqlserver%22%7D&g0.tab=1.

Both series report up == 1 — the exporter’s own target and its target="mssql_database" sub-target — confirming Prometheus is scraping mssqlserver-alert-demo-0 successfully.

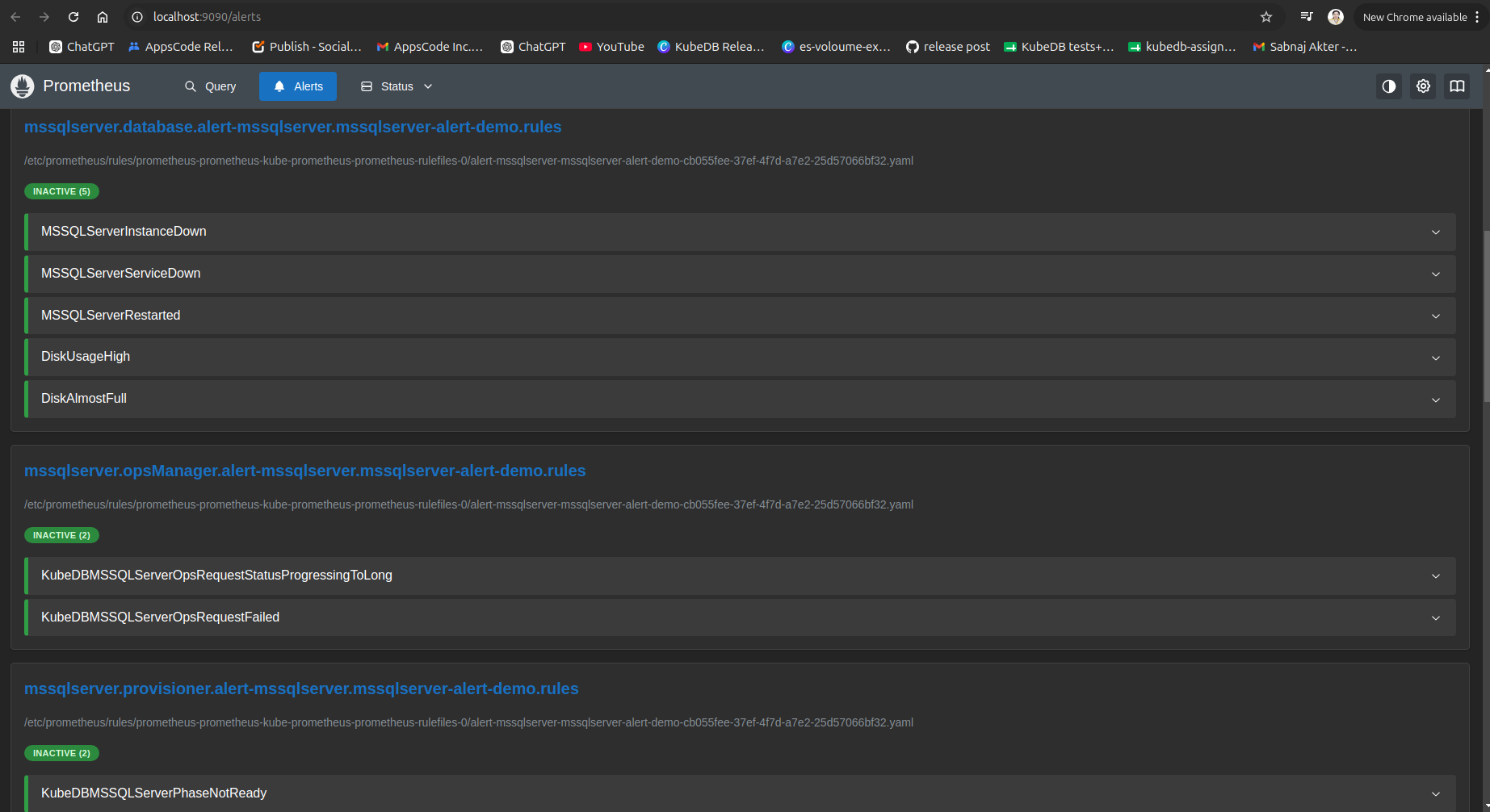

2. Confirm the MSSQLServer alerts are inactive

Open http://localhost:9090/alerts.

All rules should show INACTIVE.

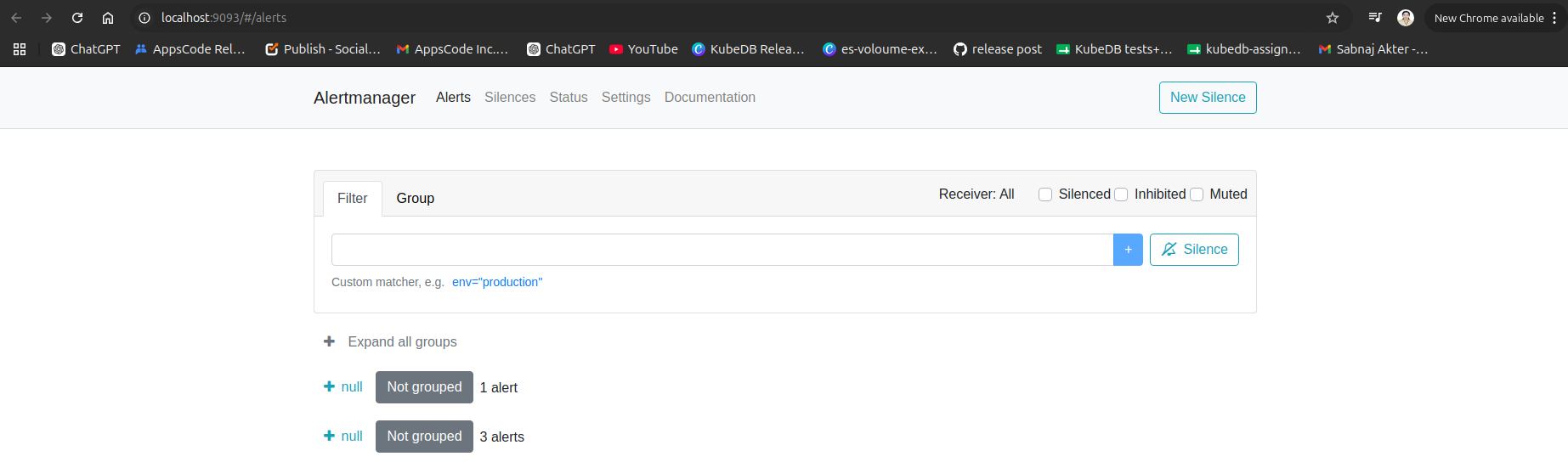

3. Check AlertManager

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093.

This view isn’t filtered to a namespace, so alerts from other databases on a shared cluster may also appear here — use the filter box (app_namespace="alert-mssqlserver") to confirm none are specific to this instance.

Simulating a Firing Alert

This section deliberately triggers MSSQLServerInstanceDown (instant, for: 0m) by crashing the main sqlservr process.

1. Crash the MSSQLServer process

$ kubectl exec -n alert-mssqlserver mssqlserver-alert-demo-0 -c mssql -- sh -c '
    end=$(( $(date +%s) + 30 ));
    while [ $(date +%s) -lt $end ]; do
      pid=$(pgrep -x sqlservr | head -1);
      [ -n "$pid" ] && kill -9 "$pid" 2>/dev/null;
      sleep 1;
    done'

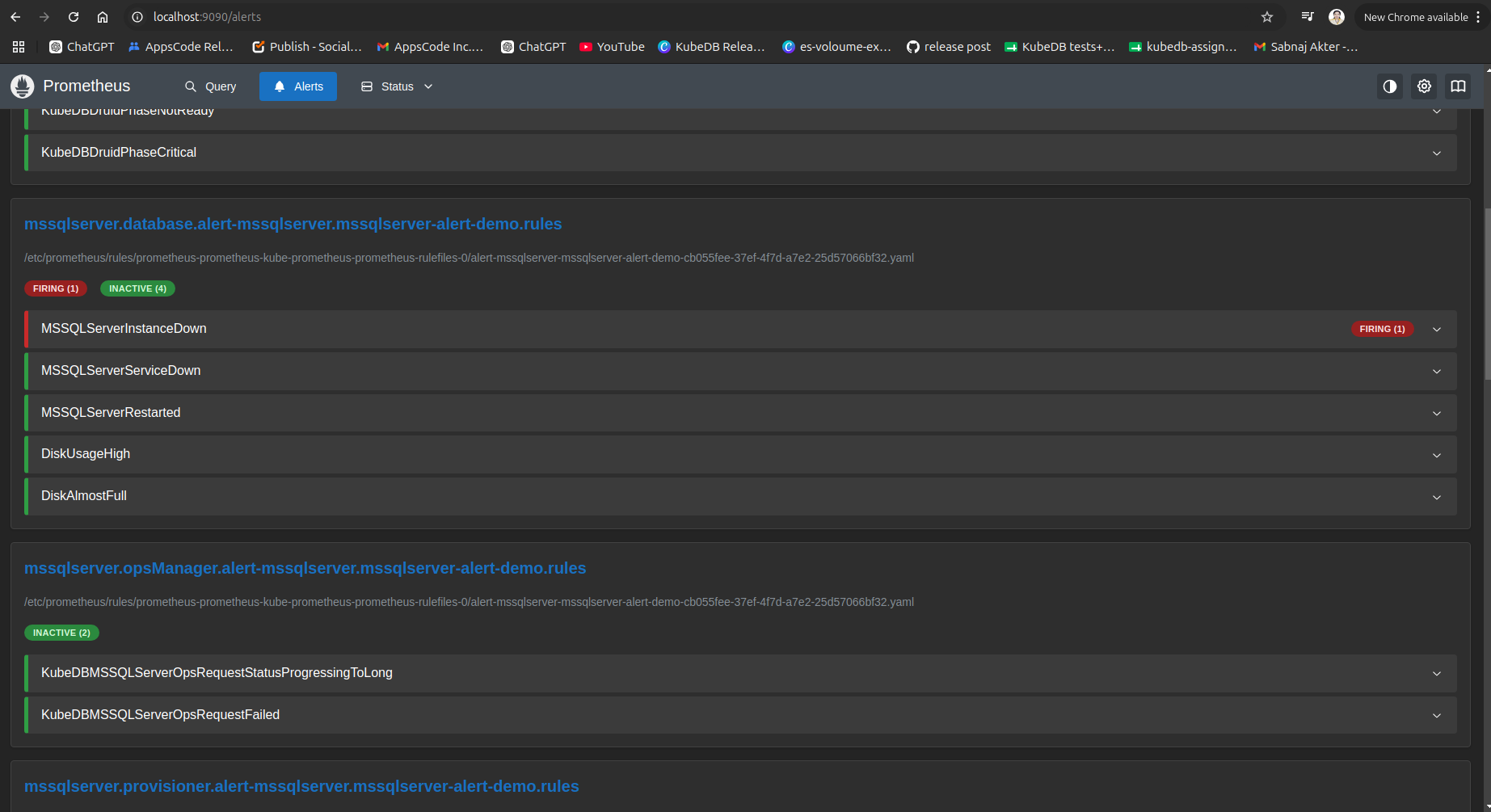

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts.

MSSQLServerInstanceDown (up == 0) should transition straight to FIRING.

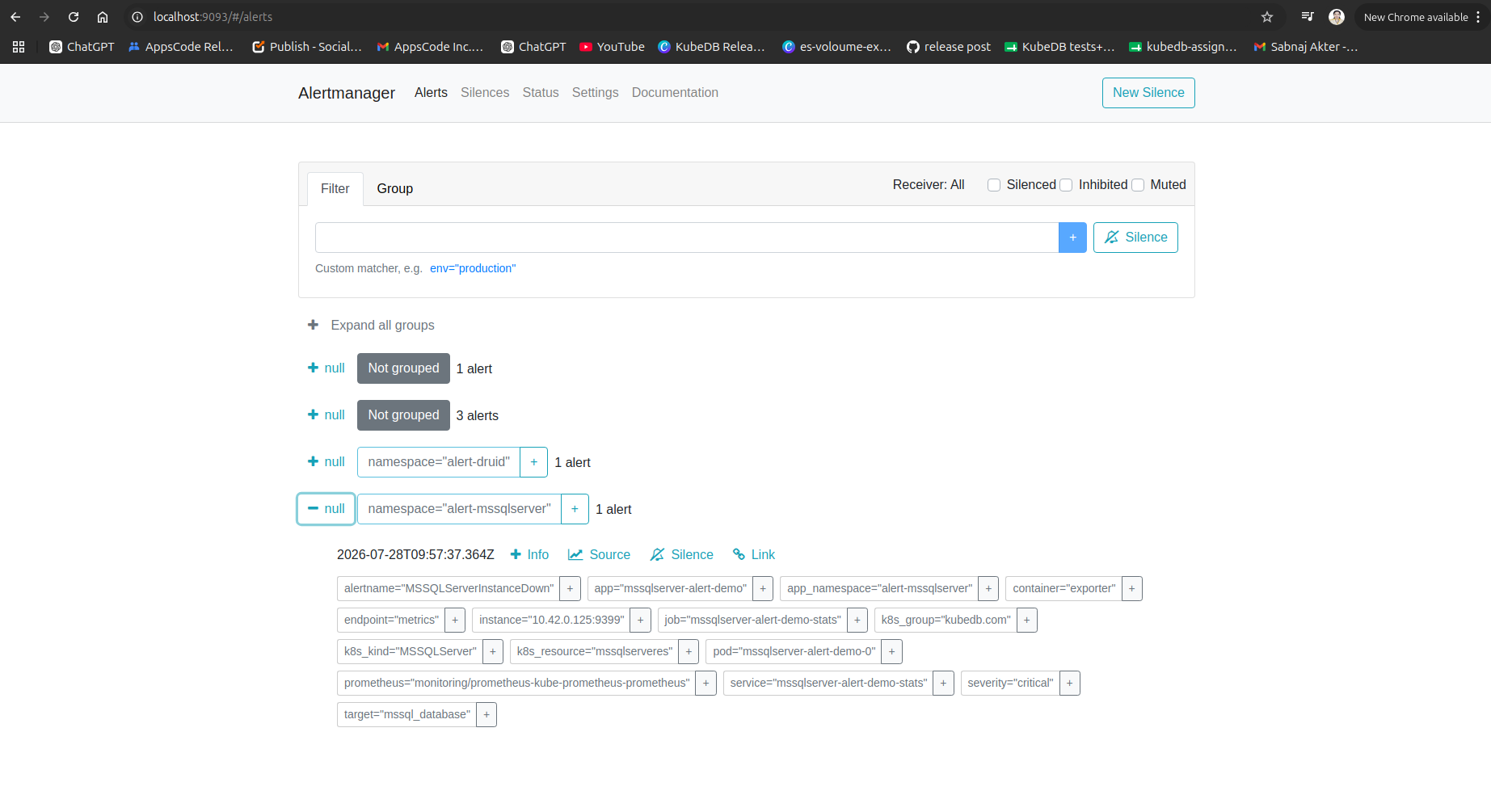

3. Check the AlertManager dashboard

Open http://localhost:9093.

AlertManager shows the MSSQLServerInstanceDown alert. The alert card displays labels including:

• alertname: MSSQLServerInstanceDown
• severity: critical
• app: mssqlserver-alert-demo, app_namespace: alert-mssqlserver
• k8s_kind: MSSQLServer
• job: mssqlserver-alert-demo-stats

Note: this chart’s alert labels use app_namespace rather than a plain namespace label — filter or group on app_namespace when searching for these alerts in AlertManager.

4. Restore MSSQLServer

Stop the loop from step 1.

$ kubectl get mssqlserver -n alert-mssqlserver mssqlserver-alert-demo -w
NAME                     VERSION    STATUS   AGE
mssqlserver-alert-demo   2025-cu0   Ready    24m

If MSSQLServer does not recover on its own within a minute or two, force a clean restart: kubectl delete pod -n alert-mssqlserver mssqlserver-alert-demo-0.

Alert Reference

All alerts are scoped to the mssqlserver-alert-demo instance in the alert-mssqlserver namespace via the PromQL label filters job="mssqlserver-alert-demo-stats" / namespace="alert-mssqlserver" (database group), or app="mssqlserver-alert-demo" / namespace="alert-mssqlserver" (provisioner/opsManager groups).

Database Group

Provisioner Group

OpsManager Group

KubeStash Group (disabled in this tutorial)

Customising Alerts

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      kubeStash:
        enabled: "none"
      database:
        enabled: warning
        rules:
          mssqlserverRestarted:
            enabled: true
            severity: warning

$ helm upgrade mssqlserver-alert-demo appscode/mssqlserver-alerts \
    -n alert-mssqlserver \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the mssqlserver-alerts release (PrometheusRule + dashboard-import Job)
$ helm uninstall mssqlserver-alert-demo -n alert-mssqlserver

# Remove the imported Grafana dashboard (it is not removed by helm uninstall)
$ curl -s -X DELETE -H "Authorization: Bearer <grafana-token>" \
    http://localhost:3000/api/dashboards/uid/<uid>

$ kubectl delete mssqlserver -n alert-mssqlserver mssqlserver-alert-demo
$ kubectl delete issuer -n alert-mssqlserver mssqlserver-ca-issuer
$ kubectl delete secret -n alert-mssqlserver mssqlserver-ca
$ kubectl delete ns alert-mssqlserver

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring

Next Steps

• Monitor your MSSQLServer instance with KubeDB using Prometheus operator.
• Want to hack on KubeDB? Check our contribution guidelines.
