MariaDB Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed MariaDB instance using the mariadb-alerts Helm chart, and how to visualise live metrics using the kubedb-grafana-dashboards chart.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the alert-mariadb namespace:

  $ kubectl create ns alert-mariadb
  namespace/alert-mariadb created


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

Note: YAML files used in this tutorial are stored in docs/examples/mariadb folder in GitHub repository kubedb/docs.

Configuration

Step 1 (kube-prometheus-stack) is required to follow this tutorial. Step 2 (Panopticon) is required for the Provisioner Group alerts below (KubeDBMariaDBPhase...) — skip it only if you just want the exporter-based Database Group alerts. If you have already completed the step(s) you need in another guide, skip ahead.

Step 1: Deploy kube-prometheus-stack

kube-prometheus-stack installs Prometheus, Prometheus Operator, Alertmanager, and Grafana together. This is the recommended way to get the full monitoring stack on Kubernetes.

Add the prometheus-community Helm repo and install:

$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update

$ helm upgrade --install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring --create-namespace \
  --set grafana.image.tag=7.5.5

Wait for all pods to be ready:

$ kubectl get pods -n monitoring
NAME                                                   READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0 2/2     Running   0          2m
prometheus-grafana-xxxx                                3/3     Running   0          2m
prometheus-kube-prometheus-operator-xxxx               1/1     Running   0          2m
prometheus-kube-prometheus-prometheus-0                2/2     Running   0          2m
prometheus-kube-state-metrics-xxxx                     1/1     Running   0          2m

Find the serviceMonitorSelector/ruleSelector labels that Prometheus uses to pick up ServiceMonitor/PrometheusRule objects — this is the release: prometheus label used throughout this tutorial.

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
{"matchLabels":{"release":"prometheus"}}

$ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
{"matchLabels":{"release":"prometheus"}}

Step 2: Install Panopticon (required for the Provisioner Group alerts)

Panopticon is the Appscode operator that exports the KubeDB operator’s own view of every resource — kubedb_com_mariadb_status_phase and related metrics. It’s what powers the Provisioner Group alerts below (KubeDBMariaDBPhaseNotReady/KubeDBMariaDBPhaseCritical). Skip this step if you only need the exporter-based Database Group alerts.

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install panopticon appscode/panopticon \
  --version v2026.4.30 \
  --namespace kubeops --create-namespace \
  --set monitoring.enabled=true \
  --set monitoring.agent=prometheus.io/operator \
  --set monitoring.serviceMonitor.labels.release=prometheus \
  --set-file license=/path/to/kubedb-license.txt \
  --wait --timeout 5m0s

Verify Panopticon is running:

$ kubectl get pods -n kubeops
NAME                          READY   STATUS    RESTARTS   AGE
panopticon-xxxx               1/1     Running   0          1m

Overview

The diagram below shows the full alerting architecture — from MariaDB metric export through to alert delivery and Grafana visualisation.

• KubeDB deploys MariaDB with a mysqld_exporter-compatible sidecar (container exporter) that exposes metrics used by both MySQL and MariaDB alert charts (mysql_* metric names).
• ServiceMonitor (named {mariadb-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the exporter every 10 seconds.
• PrometheusRule is created by the mariadb-alerts chart and contains MariaDB alert definitions grouped by concern: database health, Galera cluster, provisioner, ops-manager, Stash backup/restore, KubeStash backup/restore, and schema manager.
• Grafana visualises metrics through pre-built dashboards provisioned by the kubedb-grafana-dashboards chart.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy MariaDB with Monitoring Enabled

Below is the MariaDB object we are going to create — a 3-node Galera cluster (Primary-Primary multi-master replication) with monitoring enabled. This tutorial uses a real Galera cluster rather than a standalone instance since that’s representative of a real deployment and is what the rest of this guide’s screenshots are taken from — the cluster group’s GaleraReplicationLatencyTooLong alert only produces real data on a Galera topology; a standalone instance simply leaves it permanently INACTIVE with no series at all.

apiVersion: kubedb.com/v1
kind: MariaDB
metadata:
  name: mariadb-alert-demo
  namespace: alert-mariadb
spec:
  version: "12.3.2"
  deletionPolicy: WipeOut
  replicas: 3
  topology:
    mode: GaleraCluster
  wsrepSSTMethod: rsync
  storageType: Durable
  storage:
    storageClassName: "longhorn"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.topology.mode: GaleraCluster tells KubeDB to bootstrap a multi-master Galera cluster instead of a standalone/async-replica instance.
• spec.wsrepSSTMethod: rsync selects the State Snapshot Transfer method Galera uses to bring a rejoining node’s dataset back in sync with the cluster.
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/mariadb/monitoring/mariadb-alert-demo.yaml
mariadb.kubedb.com/mariadb-alert-demo created

Wait for the database to go into Ready state.

$ kubectl get mariadb -n alert-mariadb mariadb-alert-demo
NAME                 VERSION   STATUS   AGE
mariadb-alert-demo   12.1.2    Ready    21h

KubeDB brings up 3 Galera pods, each running as a Primary:

$ kubectl get pods -n alert-mariadb
NAME                   READY   STATUS    RESTARTS   AGE
mariadb-alert-demo-0   3/3     Running   0          21h
mariadb-alert-demo-1   3/3     Running   0          21h
mariadb-alert-demo-2   3/3     Running   0          21h

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-mariadb --selector="app.kubernetes.io/instance=mariadb-alert-demo"
NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)     AGE
mariadb-alert-demo         ClusterIP   10.43.111.157   <none>        3306/TCP    21h
mariadb-alert-demo-pods    ClusterIP   None            <none>        3306/TCP    21h
mariadb-alert-demo-stats   ClusterIP   10.43.30.195    <none>        56790/TCP   21h

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-mariadb
NAME                       AGE
mariadb-alert-demo-stats   21h

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n alert-mariadb mariadb-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Install mariadb-alerts

The mariadb-alerts chart creates a PrometheusRule resource containing all MariaDB alert definitions.

Why the Helm release name matters

The chart derives the PrometheusRule name and scopes every PromQL expression (via job="{release-name}-stats" / app="{release-name}") from the Helm release name — so the release name must match the MariaDB object’s name (mariadb-alert-demo) for the rules to be correctly scoped to this instance.

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector.

Install

$ helm upgrade -i mariadb-alert-demo oci://ghcr.io/appscode-charts/mariadb-alerts \
    -n alert-mariadb \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set form.alert.groups.database.rules.diskUsageHigh.enabled=false \
    --set form.alert.groups.database.rules.diskAlmostFull.enabled=false \
    --set form.alert.appSuffix=mdb-grafana-demo

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-mariadb
NAME                 AGE
mariadb-alert-demo   30s

$ kubectl get prometheusrule -n alert-mariadb mariadb-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Confirm Prometheus loaded the rules

Port-forward the Prometheus UI.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

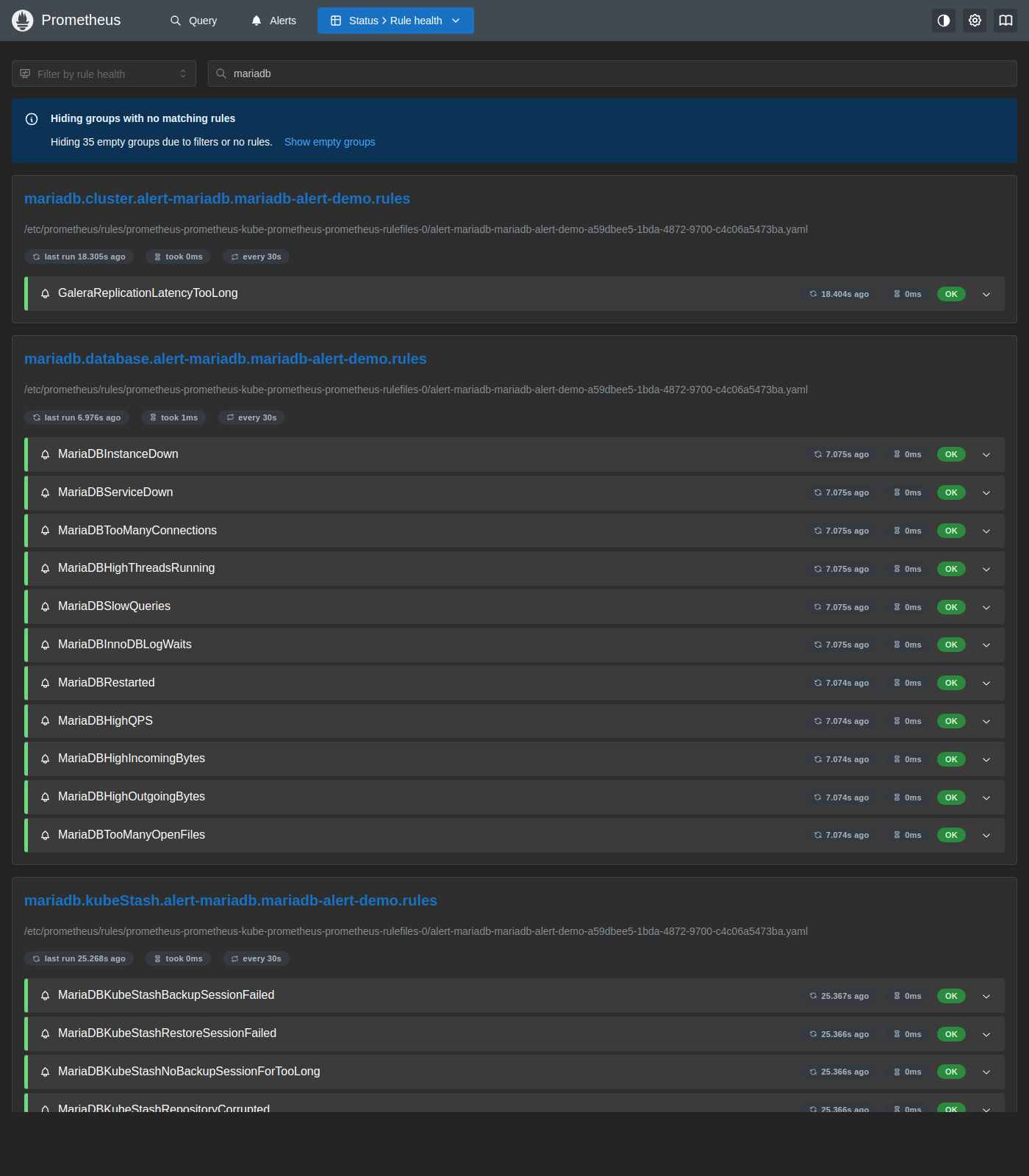

Open http://localhost:9090/rules?search=mariadb and locate the mariadb.database, mariadb.cluster, mariadb.provisioner, mariadb.opsManager, mariadb.stash, mariadb.kubeStash, and mariadb.schemaManager groups.

All groups show OK, confirming that Prometheus has loaded and is evaluating the MariaDB alert definitions every 30 seconds. Note mariadb.database has 11 rules, not 13 — diskUsageHigh/diskAlmostFull were disabled at install time.

Step 2 — Install kubedb-grafana-dashboards

The kubedb-grafana-dashboards chart creates GrafanaDashboard CRDs containing pre-built MariaDB dashboard JSON. A separate controller, grafana-operator, watches these CRDs and pushes the dashboards into Grafana over its HTTP API — both pieces are required. If you’ve already set these up for another database on this cluster (see the Elasticsearch alerting guide for the full walkthrough), skip straight to Install the dashboards below.

Install grafana-operator

If your cluster doesn’t already have it (check with kubectl get crd grafanadashboards.openviz.dev):

$ helm upgrade -i grafana-operator appscode/grafana-operator \
    -n kubeops --create-namespace \
    --version=v2026.6.12 \
    --wait

Mark your Grafana instance as the cluster default

Skip this if you already have a Grafana AppBinding annotated as the cluster default (one is shared across every database). Otherwise:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80&
$ GRAFANA_PW=$(kubectl get secret -n monitoring prometheus-grafana -o jsonpath='{.data.admin-password}' | base64 -d)
$ curl -s -X POST -H "Content-Type: application/json" -u admin:$GRAFANA_PW \
    http://localhost:3000/api/auth/keys \
    -d '{"name":"kubedb-dashboards","role":"Admin"}'
# Note the returned "key"
$ kill %1

# grafana-appbinding.yaml
apiVersion: v1
kind: Secret
metadata:
  name: grafana-admin-token
  namespace: kubeops
type: Opaque
stringData:
  token: "<api-key-from-above>"
---
apiVersion: appcatalog.appscode.com/v1alpha1
kind: AppBinding
metadata:
  name: grafana
  namespace: kubeops
  annotations:
    monitoring.appscode.com/is-default-grafana: "true"   # must be an ANNOTATION, not a label
spec:
  type: monitoring.appscode.com/grafana
  clientConfig:
    url: "http://prometheus-grafana.monitoring.svc:80"
  secret:
    name: grafana-admin-token

$ kubectl apply -f grafana-appbinding.yaml

Install the dashboards

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update appscode

$ helm template kubedb-grafana-dashboards appscode/kubedb-grafana-dashboards \
    -n kubeops \
    --version=v2026.7.10 \
    --set featureGates.MariaDB=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<api-key-from-above>" \

Note: featureGates.<DB> defaults to true for almost every database in this chart, so one helm template | kubectl apply installs dashboards for many databases at once, not just MariaDB — this is expected. See the render-vs-Secret-size caveat in the Elasticsearch alerting guide for why helm template | kubectl apply is used instead of helm install.

Verify dashboards are created

$ kubectl get grafanadashboards -n kubeops | grep mariadb
NAME                            TITLE                          STATUS    AGE
kubedb-mariadb-database         KubeDB / MariaDB / Database     Current   2m
kubedb-mariadb-galera-cluster   KubeDB / MariaDB / Galera-Cluster   Current   2m
kubedb-mariadb-pod              KubeDB / MariaDB / Pod          Current   2m
kubedb-mariadb-summary          KubeDB / MariaDB / Summary      Current   2m

Four dashboards this time, not three — MariaDB’s chart ships a dedicated Galera-Cluster dashboard alongside the usual Summary/Pod/Database triplet.

Verify End-to-End

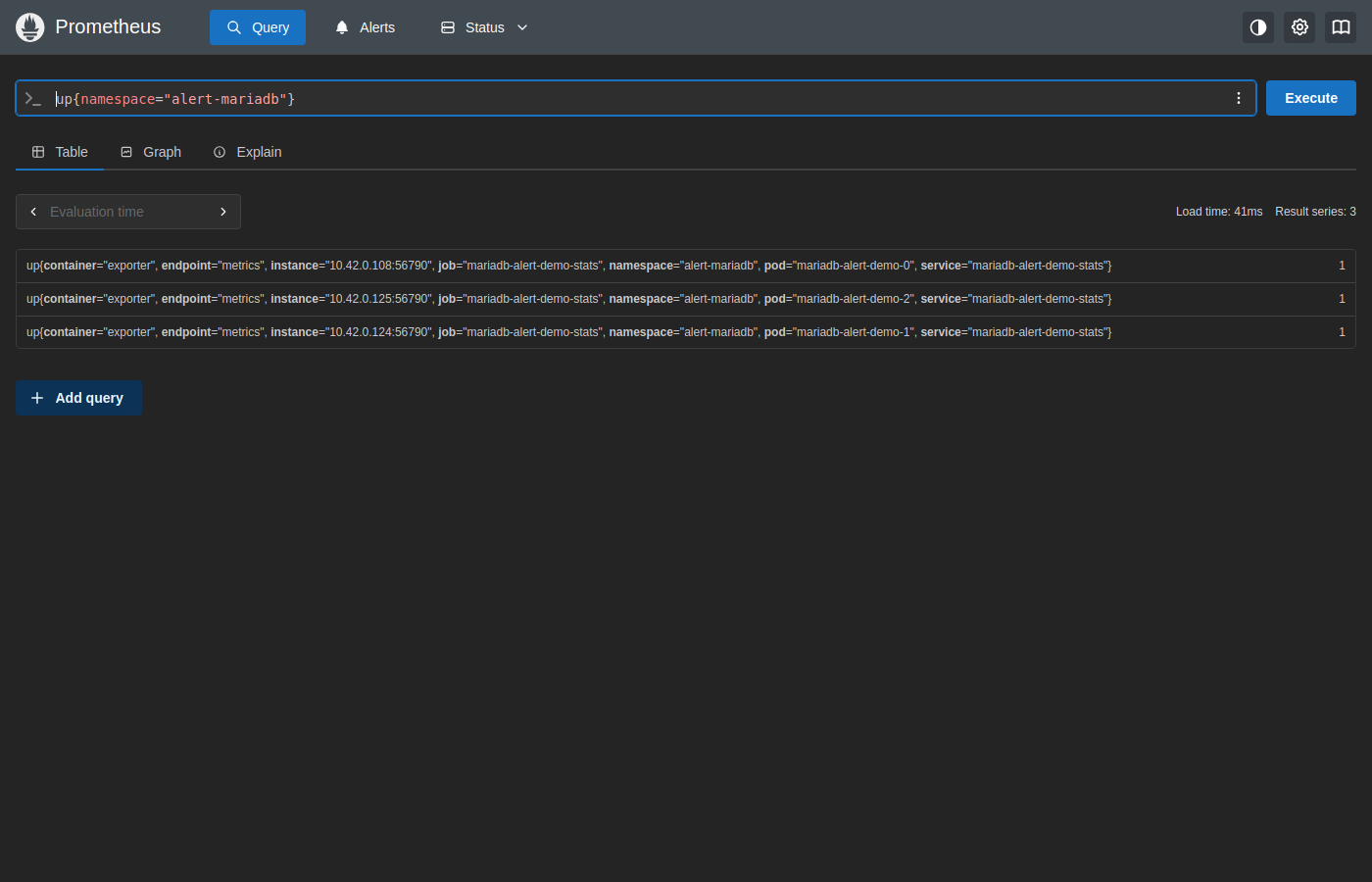

1. Check the Prometheus target is UP

Open http://localhost:9090/query?g0.expr=up%7Bnamespace%3D%22alert-mariadb%22%7D&g0.tab=1.

All 3 pods (mariadb-alert-demo-0/1/2) should report up == 1 via the mariadb-alert-demo-stats service/job.

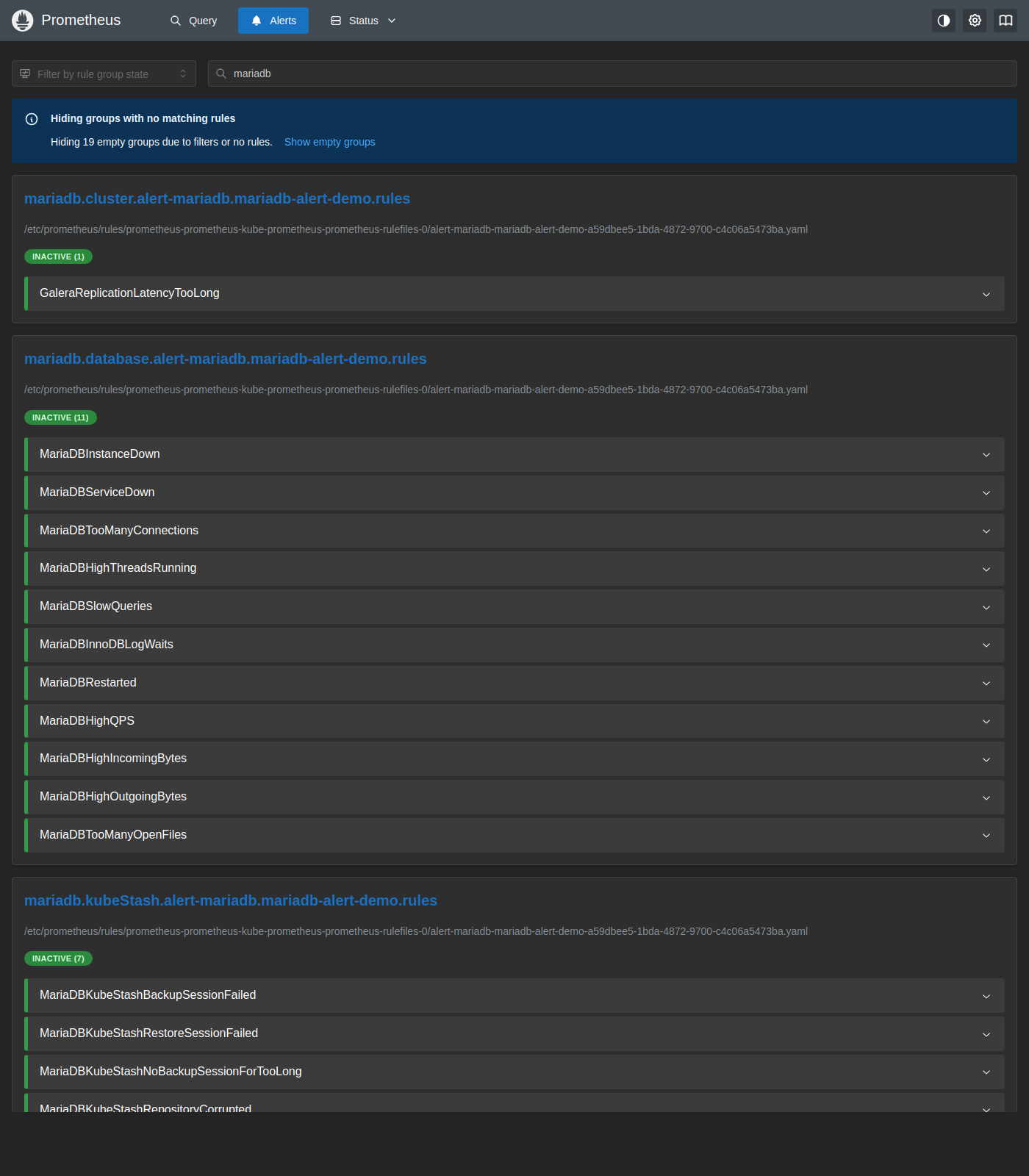

2. Confirm the MariaDB alerts are inactive

Open http://localhost:9090/alerts?search=mariadb.

All rules show INACTIVE, including GaleraReplicationLatencyTooLong (the cluster group) — on a real Galera topology this rule has live data (unlike a standalone instance, where it would have none at all), it’s just currently below threshold.

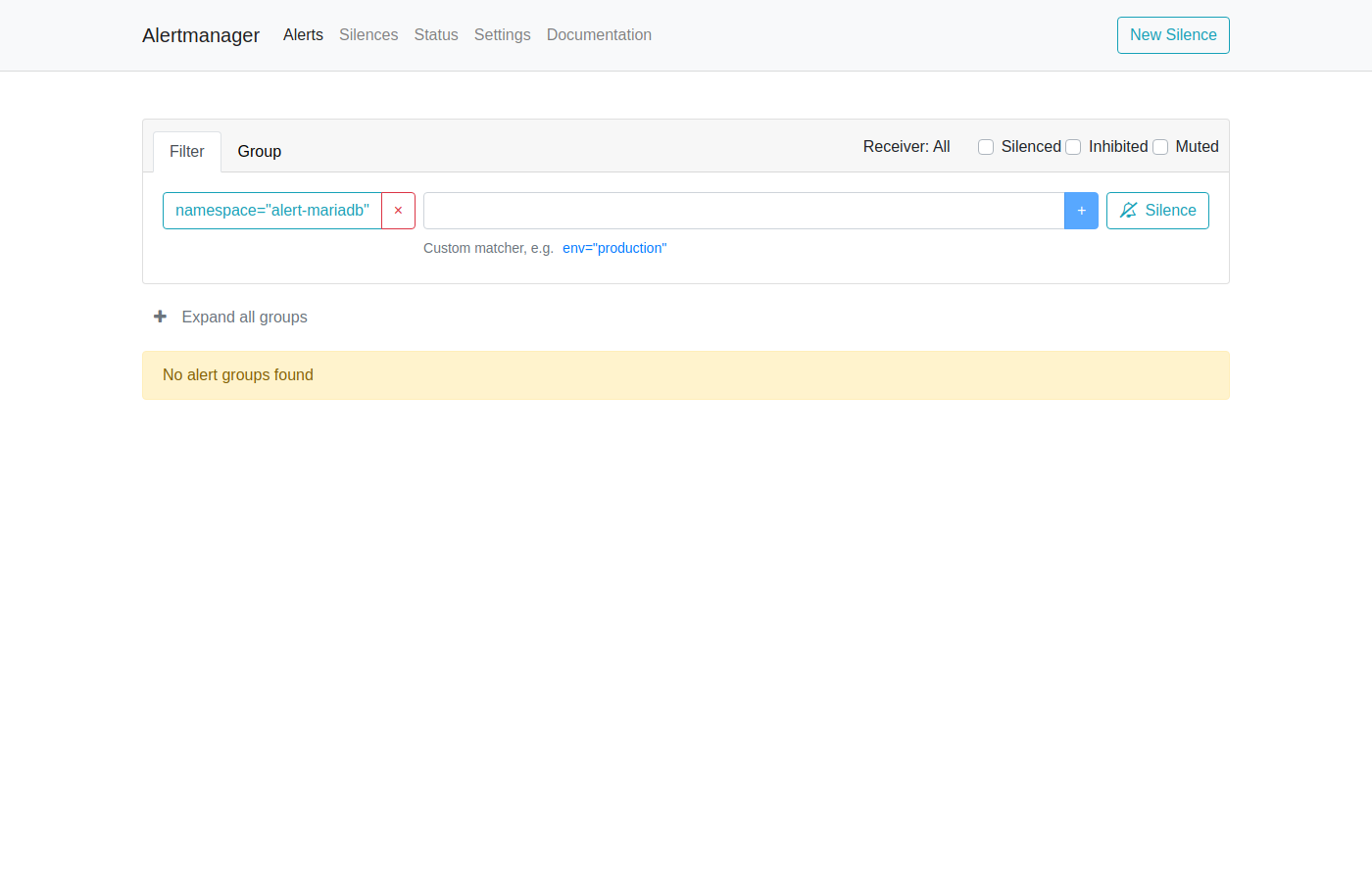

3. Check AlertManager

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093.

No alerts should be firing for the alert-mariadb namespace.

Simulating a Firing Alert

This section deliberately triggers MariaDBInstanceDown (instant, for: 0m) by crashing the main mariadb process, and observes the alert through Prometheus and AlertManager.

Unlike Elasticsearch, killing the main process here works well: MariaDB’s container PID 1 is tini supervising a wrapper script, not mariadbd itself, so killing mariadbd doesn’t take the container down — it just leaves mysql_up at 0 until the script notices and restarts the daemon. A single kill -9 self-heals in roughly 20–30 seconds (too fast to reliably catch, since it beats one evaluation cycle), so hold it down with a short kill-loop instead.

1. Crash the MariaDB process

$ kubectl exec -n alert-mariadb mariadb-alert-demo-0 -c mariadb -- sh -c '
    end=$(( $(date +%s) + 45 ));
    while [ $(date +%s) -lt $end ]; do
      pid=$(pgrep -x mariadbd | head -1);
      [ -n "$pid" ] && kill -9 "$pid" 2>/dev/null;
      sleep 1;
    done'

Run this in the background (or a separate terminal) — it holds mariadbd down for 45 seconds, comfortably past one Prometheus scrape (10s) and evaluation (30s) cycle.

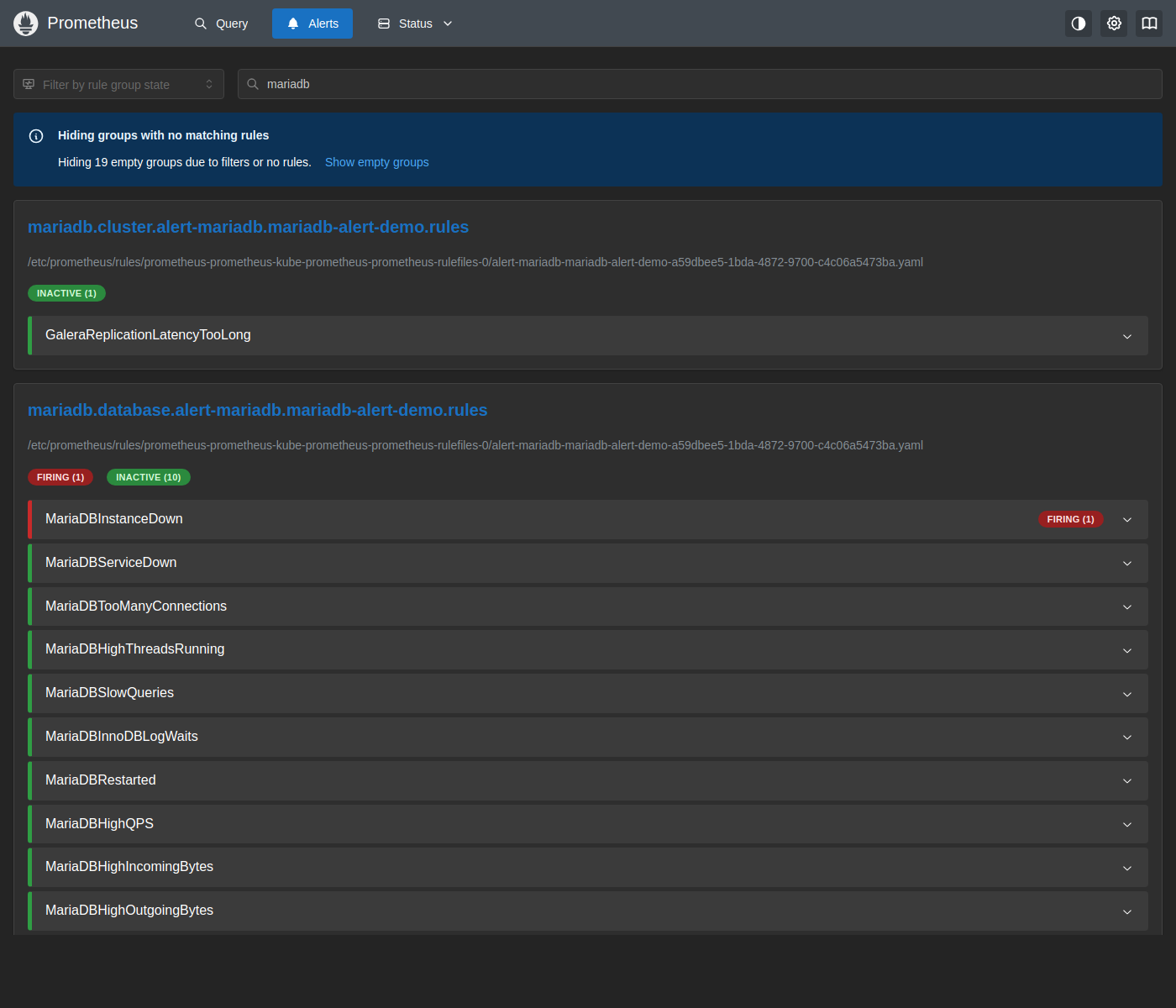

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts?search=mariadb.

MariaDBInstanceDown (mysql_up == 0) transitions straight to FIRING since it has no for delay, while the rest of the mariadb.database group stays INACTIVE.

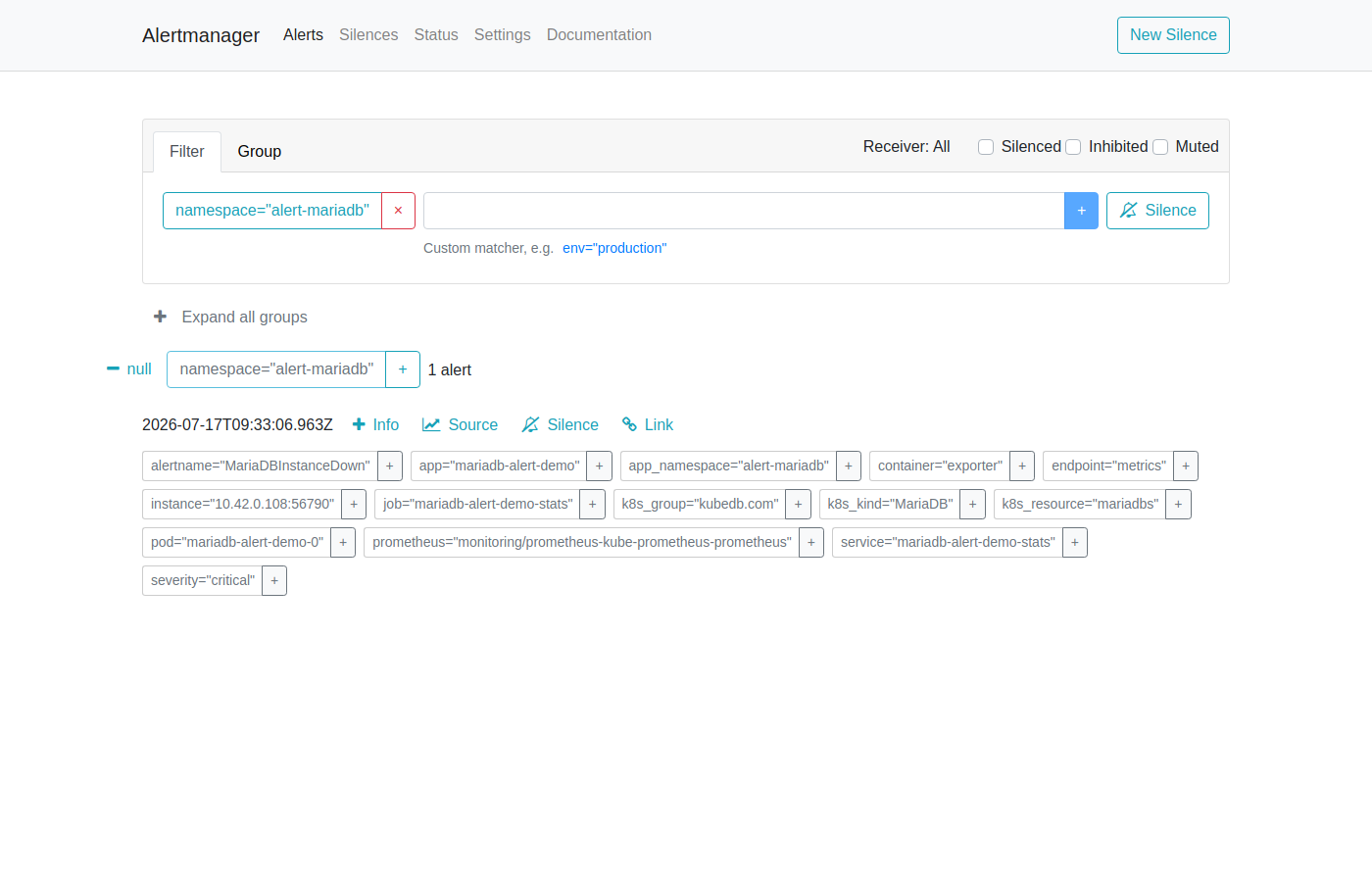

3. Check the AlertManager dashboard

Open http://localhost:9093/#/alerts?filter={namespace="alert-mariadb"}.

AlertManager shows the MariaDBInstanceDown alert. The alert card displays:

• Severity: critical
• pod: mariadb-alert-demo-0
• job: mariadb-alert-demo-stats
• Started: timestamp when the alert first fired

4. Restore MariaDB

Let the loop from step 1 finish (or stop it early). run.sh inside the container restarts mariadbd on its own — no pod restart needed.

$ kubectl get mariadb -n alert-mariadb mariadb-alert-demo -w
NAME                 VERSION   STATUS     AGE
mariadb-alert-demo   12.1.2    Critical   21h
mariadb-alert-demo   12.1.2    Ready      21h

Recovery took about 10–15 seconds after the kill-loop ended in testing — mariadbd restarts, performs a quick Galera State Snapshot Transfer (SST via rsync) to catch back up with the other two nodes, and mysql_up returns to 1. The KubeDB / MariaDB / Galera-Cluster dashboard’s replication-latency panel is a good place to watch this recovery happen in real time. Once mysql_up is back to 1, Prometheus marks the alert INACTIVE and AlertManager sends a resolved notification. If MariaDB does not recover on its own within a minute or two, force a clean restart: kubectl delete pod -n alert-mariadb mariadb-alert-demo-0.

Alert Reference

All alerts are scoped to the mariadb-alert-demo instance in the alert-mariadb namespace via the PromQL label filters job="mariadb-alert-demo-stats" / namespace="alert-mariadb" (database/cluster groups), or app="mariadb-alert-demo" / namespace="alert-mariadb" (provisioner/opsManager/stash/kubeStash/schemaManager groups).

Database Group

Fired from metrics exposed by the mysqld_exporter-compatible sidecar and node/kubelet metrics.

Cluster Group

Only produces data when spec.topology (Galera) is configured — this tutorial’s instance is a Galera cluster, so this group has live data.

Provisioner Group

Monitors the KubeDB operator’s view of the MariaDB resource phase (sourced from Panopticon, not the exporter’s metrics).

OpsManager Group

Monitors the lifecycle of ops requests (upgrades, scaling, reconfiguration, etc.) issued against this MariaDB instance.

Stash / KubeStash Groups

Only meaningful once Stash or KubeStash backup/restore is configured.

SchemaManager Group

Only meaningful when using MariaDBDatabase schema-manager objects.

Customising Alerts

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          mariadbTooManyConnections:
            enabled: true
            duration: "5m"
            severity: warning
      cluster:
        enabled: "none"    # disable if you don't run Galera

$ helm upgrade mariadb-alert-demo oci://ghcr.io/appscode-charts/mariadb-alerts \
    -n alert-mariadb \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

# Remove the Grafana dashboards (installed via helm template | kubectl apply, not helm install)
$ helm template kubedb-grafana-dashboards appscode/kubedb-grafana-dashboards \
    -n kubeops \
    --version=v2026.7.10 \
    --set featureGates.MariaDB=true \
    --set grafana.url="http://prometheus-grafana.monitoring.svc:80" \
    --set grafana.apikey="<api-key>" \
  | kubectl delete -n kubeops -f - --ignore-not-found

# Remove the mariadb-alerts release
$ helm uninstall mariadb-alert-demo -n alert-mariadb

# Remove the MariaDB instance
$ kubectl delete mariadb -n alert-mariadb mariadb-alert-demo

# Delete namespace
$ kubectl delete ns alert-mariadb

# Optional: only if nothing else in the cluster depends on them
$ kubectl delete appbinding -n kubeops grafana
$ kubectl delete secret -n kubeops grafana-admin-token
$ helm uninstall grafana-operator -n kubeops

# Uninstall monitoring stack (optional — skip if other tutorials on this cluster still need them)
$ helm uninstall panopticon -n kubeops
$ helm uninstall prometheus -n monitoring

Next Steps

• Monitor your MariaDB database with KubeDB using built-in Prometheus.
• Monitor your MariaDB database with KubeDB using Prometheus operator.
• Want to hack on KubeDB? Check our contribution guidelines.
