ClickHouse Grafana Dashboard

KubeDB exposes ClickHouse metrics through ClickHouse’s own native Prometheus exporter, and its own view of each resource (status, phase, version) through Panopticon. Once Prometheus is scraping both, you can visualize them in Grafana using a pre-built KubeDB dashboard. This tutorial walks through the full setup: deploying the monitoring stack, enabling monitoring on a ClickHouse instance, and importing the Grafana dashboard.

Before You Begin

• You need a Kubernetes cluster with kubectl configured. If you do not already have a cluster, you can create one by using kind.

• KubeDB must be installed in your cluster with kubedb-metrics enabled. Follow the setup guide here and make sure to include the flag below during installation:

  --set kubedb-metrics.enabled=true


  kubedb-metrics creates MetricsConfiguration objects for each database type, which Panopticon (see Configuration) uses to expose metrics to Prometheus.

• To keep monitoring resources isolated, we use a separate monitoring namespace and deploy the database in the demo namespace.

  $ kubectl create ns monitoring
  namespace/monitoring created

  $ kubectl create ns demo
  namespace/demo created


• Before proceeding, complete the Configuration steps to deploy kube-prometheus-stack and Panopticon.

Note: YAML files used in this tutorial are stored in docs/examples/clickhouse/monitoring folder in GitHub repository kubedb/docs.

Setup

Step 1: Deploy ClickHouse

Below is the ClickHouse object with monitoring configured to use Prometheus Operator.

apiVersion: kubedb.com/v1alpha2
kind: ClickHouse
metadata:
  name: ch-grafana-demo
  namespace: demo
spec:
  version: "26.2.6"
  deletionPolicy: WipeOut
  storage:
    storageClassName: "local-path"
    accessModes:
    - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor for this instance.
• monitor.prometheus.serviceMonitor.labels must match the serviceMonitorSelector label of your Prometheus (release: prometheus).
• monitor.prometheus.serviceMonitor.interval sets the scrape interval to 10 seconds.

Create the ClickHouse instance:

$ kubectl create -f https://github.com/kubedb/docs/raw/v2026.7.10/docs/examples/clickhouse/monitoring/ch-grafana-demo.yaml
clickhouse.kubedb.com/ch-grafana-demo created

Wait for it to be Ready:

$ kubectl get clickhouse -n demo ch-grafana-demo
NAME              VERSION   STATUS   AGE
ch-grafana-demo   26.2.6    Ready    2m

KubeDB creates a stats service named {clickhouse-name}-stats for the exporter:

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=ch-grafana-demo"
NAME                    TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)     AGE
ch-grafana-demo         ClusterIP   10.96.10.1     <none>        9000/TCP    2m
ch-grafana-demo-stats   ClusterIP   10.96.10.2     <none>        9363/TCP    2m

KubeDB also creates a ServiceMonitor in the demo namespace:

$ kubectl get servicemonitor -n demo
NAME                    AGE
ch-grafana-demo-stats   2m

Verify it carries the correct label:

$ kubectl get servicemonitor -n demo ch-grafana-demo-stats -o jsonpath='{.metadata.labels}'
{"release":"prometheus", ...}

Step 2: Verify Prometheus is Scraping

Port-forward the Prometheus pod:

$ kubectl port-forward -n monitoring \
  prometheus-prometheus-kube-prometheus-prometheus-0 9090
Forwarding from 127.0.0.1:9090 -> 9090
Forwarding from [::1]:9090 -> 9090

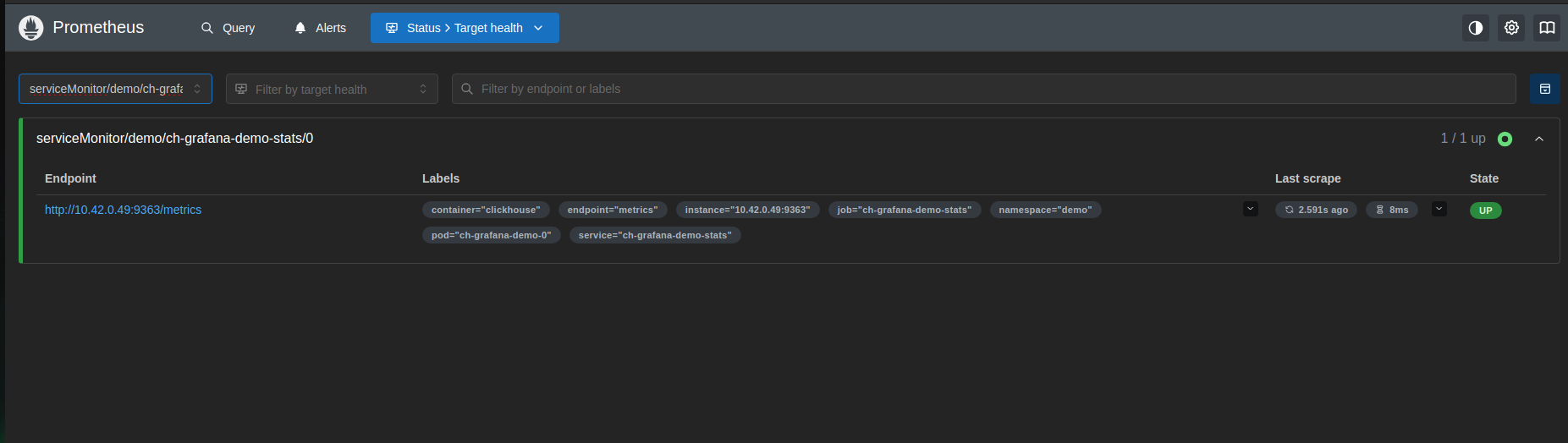

Open http://localhost:9090/targets in your browser. Look for an entry whose service label matches ch-grafana-demo-stats. Its state should be UP.

If the target is missing, check that the ServiceMonitor label (release: prometheus) matches the Prometheus serviceMonitorSelector.

Step 3: Access Grafana

Port-forward the Grafana service:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80
Forwarding from 127.0.0.1:3000 -> 80

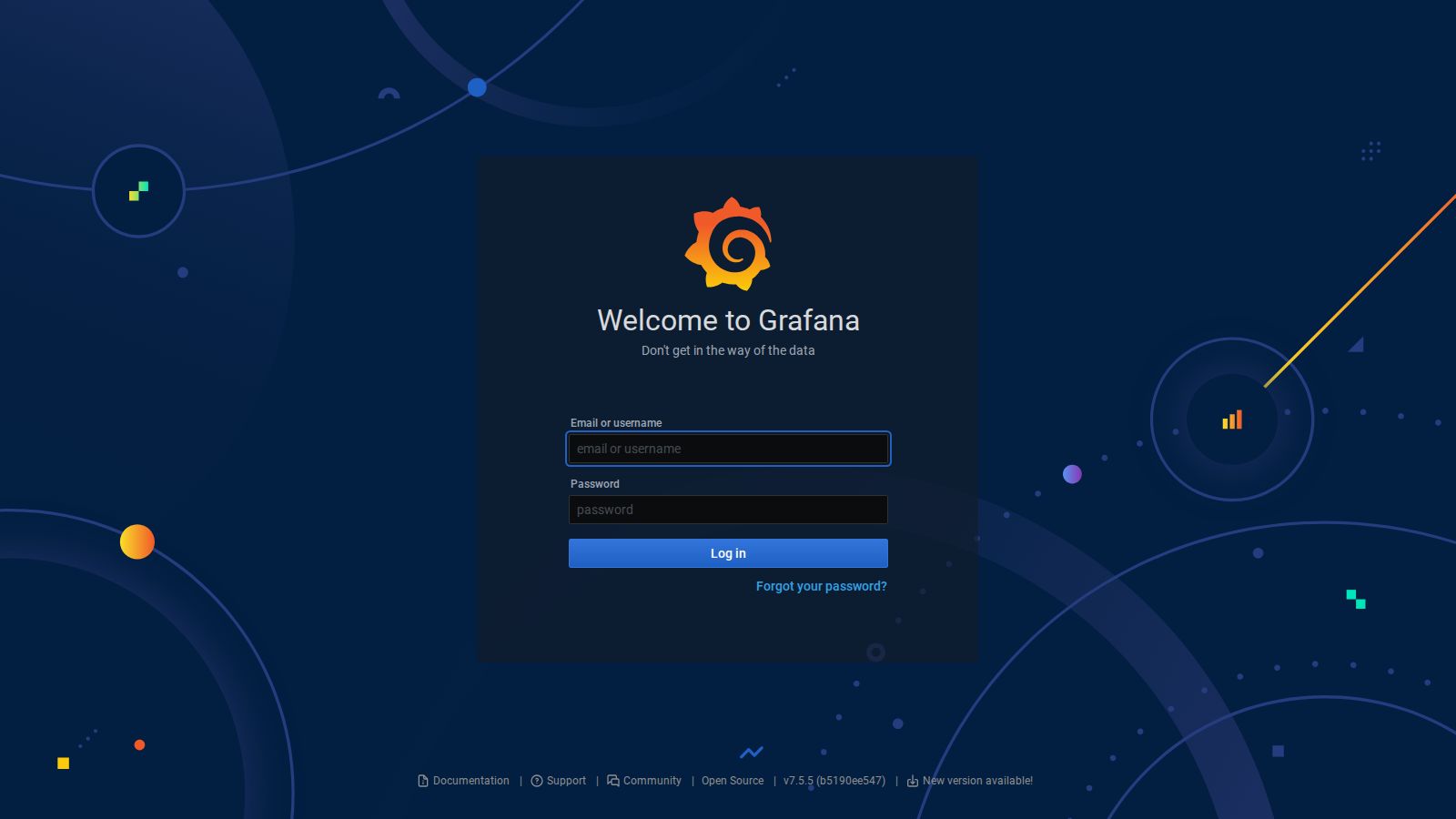

Open http://localhost:3000. The username is admin. Retrieve the auto-generated password from the secret:

$ kubectl get secret -n monitoring prometheus-grafana \
  -o jsonpath='{.data.admin-password}' | base64 -d

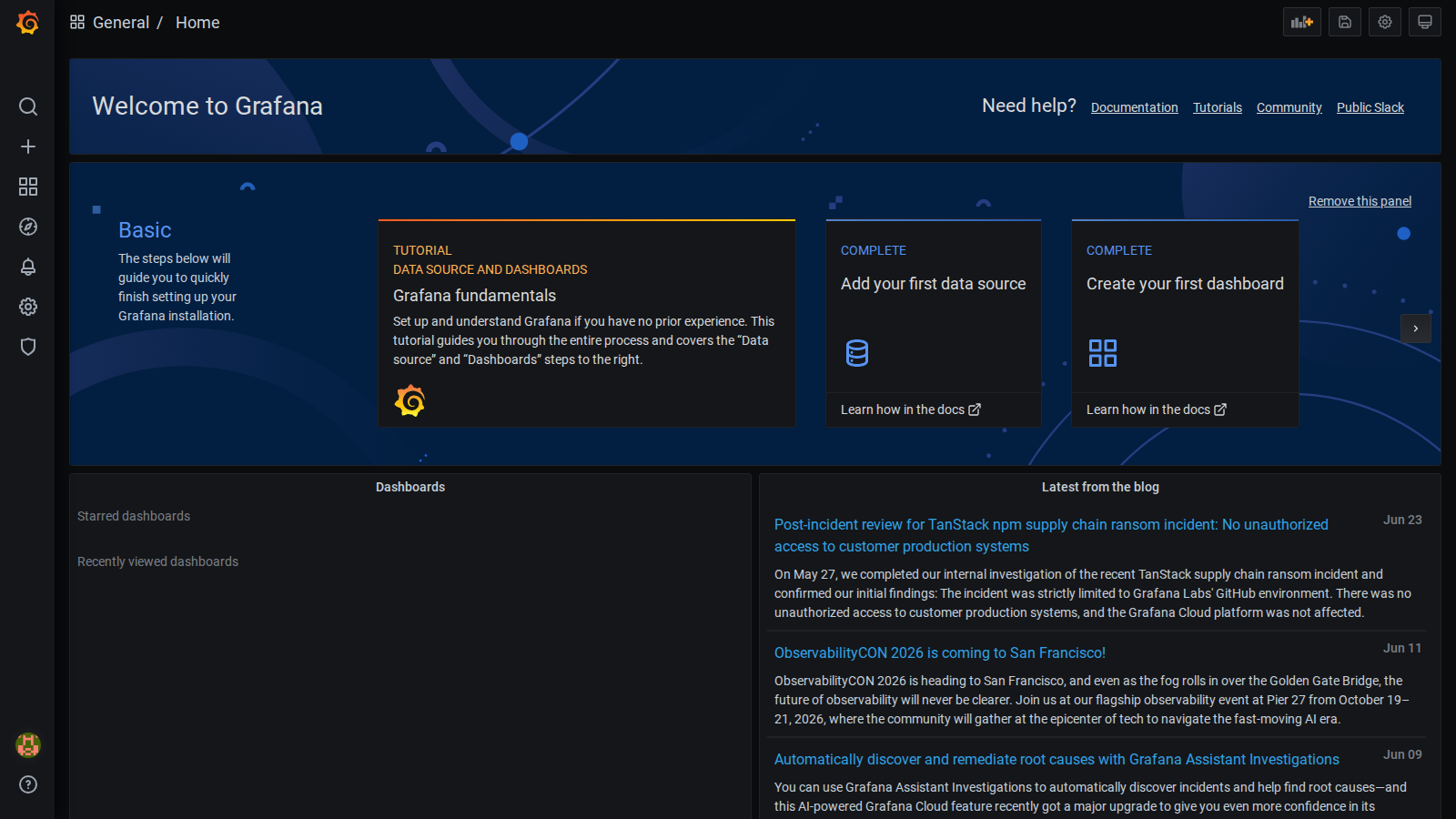

After a successful login you will see the Grafana home page:

Step 4: Configure Prometheus as a Data Source

If you installed Grafana via kube-prometheus-stack, Prometheus is already configured as the default data source — skip to Step 5.

If you’re using a different Grafana instance than the one installed in the Configuration prerequisite (linked in “Before You Begin” above), add Prometheus as a data source manually:

1. Go to Connections → Data sources → Add new data source.

2. Select Prometheus.

3. Set the URL to your Prometheus service:

   http://prometheus-operated.monitoring.svc:9090


4. Click Save & test. You should see Data source is working.

Step 5: Import Dashboard — Option A: Automatic (chart)

Rather than downloading and uploading each JSON file by hand (Option B below), KubeDB ships a chart that creates all matching dashboards for you as GrafanaDashboard custom resources. A separate controller, grafana-operator, watches these resources and pushes the actual dashboard JSON into your Grafana instance — both pieces are required.

1. Install grafana-operator (skip if it’s already running in your cluster):

$ helm repo add appscode https://charts.appscode.com/stable/
$ helm repo update

$ helm upgrade --install grafana-operator appscode/grafana-operator \
    --version v2026.6.12 \
    --namespace kubeops --create-namespace

2. Register your Grafana instance as an AppBinding (skip if you’ve already done this in another guide on this cluster). grafana-operator needs to know where to push dashboards and how to authenticate — it reads this from an AppBinding object, not from the chart install command itself. Since Grafana here came bundled with kube-prometheus-stack, reuse its existing admin credentials:

$ kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80 &

$ curl -s -X POST -H "Content-Type: application/json" \
    -u admin:<grafana_password> \
    http://localhost:3000/api/auth/keys \
    -d '{"name":"kubedb-dashboards","role":"Admin"}'
# Note the returned "key"

$ kill %1

$ kubectl create secret generic grafana-admin-token -n monitoring \
    --from-literal=token='<key-from-above>'

$ cat <<EOF | kubectl apply -f -
apiVersion: appcatalog.appscode.com/v1alpha1
kind: AppBinding
metadata:
  name: grafana
  namespace: monitoring
spec:
  type: monitoring.appscode.com/grafana
  clientConfig:
    url: http://prometheus-grafana.monitoring.svc:80
  secret:
    name: grafana-admin-token
EOF

3. Install the dashboards:

The chart packages dashboard JSON for every database it supports, so install it from a copy trimmed down to just ClickHouse’s dashboards (this also keeps grafana-operator from creating dashboards for databases you don’t run):

$ helm pull appscode/kubedb-grafana-dashboards --version v2026.7.10 --untar

$ cd kubedb-grafana-dashboards/dashboards
$ ls | grep -v '^clickhouse$' | xargs rm -rf   # keep only dashboards/clickhouse
$ cd ../..

$ helm package kubedb-grafana-dashboards
Successfully packaged chart and saved it to: kubedb-grafana-dashboards-v2026.7.10.tgz

$ helm upgrade -i kubedb-grafana-dashboards-clickhouse ./kubedb-grafana-dashboards-v2026.7.10.tgz \
    -n kubeops --create-namespace \
    --set grafana.name=grafana \
    --set grafana.namespace=monitoring

Use a release name unique to this database (kubedb-grafana-dashboards-clickhouse), not the plain kubedb-grafana-dashboards name — if you also follow another DB’s Grafana Dashboard guide on this same cluster, each helm upgrade -i under a shared release name would prune the previous DB’s dashboards (Helm removes anything not in the new release’s manifest). A per-DB release name lets them coexist.

grafana.name/grafana.namespace point the chart’s GrafanaDashboard resources at the AppBinding created in step 2 (omitting them falls back to whichever AppBinding in your cluster is labeled as the cluster-default Grafana, if any — explicit is safer on a shared cluster). No need to touch featureGates — with every other database’s dashboards/ folder removed, their gates simply match zero files and render nothing, regardless of being true by default.

This creates every dashboard the chart ships for ClickHouse — KubeDB / ClickHouse / Summary, KubeDB / ClickHouse / Pod, KubeDB / ClickHouse / Database — which grafana-operator then pushes into your Grafana instance automatically. No manual JSON download or upload needed.

Verify they landed:

$ kubectl get grafanadashboards.openviz.dev -n kubeops | grep -i clickhouse
NAME                                  TITLE                             SYNCED    AGE
grafana-kubedb-clickhouse-summary     KubeDB / ClickHouse / Summary     Current   30s
grafana-kubedb-clickhouse-pod         KubeDB / ClickHouse / Pod         Current   30s
grafana-kubedb-clickhouse-database    KubeDB / ClickHouse / Database    Current   30s

SYNCED: Current confirms grafana-operator successfully pushed each dashboard into Grafana. Open Grafana — the dashboard are already there under Dashboards, fully wired to your Prometheus data source, ready to explore in Step 6 below.

If the SYNCED column is missing entirely from your output (not just showing a non-Current value), grafana-operator most likely never processed the resource at all. Check that the operator pod is actually running (kubectl get pods -n kubeops -l app.kubernetes.io/name=grafana-operator), inspect its logs for AppBinding/auth errors (kubectl logs -n kubeops deploy/grafana-operator), and check kubectl get grafanadashboards.openviz.dev -n kubeops <name> -o yaml for status.conditions — the CR existing only means kubectl accepted it, not that it reached Grafana.

After importing them, they will appear under Dashboards in the left sidebar as well:

Step 5: Import Dashboard — Option B: Manual (JSON upload)

If you’d rather not run grafana-operator, or want fine-grained control over exactly which dashboards get imported, upload the same dashboard JSON files by hand instead.

The KubeDB ClickHouse dashboards are distributed as JSON files. Each JSON file is a complete dashboard definition — panels, queries, variables, and layout — that Grafana loads in one shot. Without importing, you would have to build every panel and write every PromQL query by hand. Importing lets you skip that entirely.

Three dashboards are available. Download all three JSON files from the appscode/grafana-dashboards repository (clickhouse/ folder):

Import steps (repeat for each of the three files):

1. In Grafana, click the + icon in the left sidebar.
2. Select Import from the menu.
3. Click Upload JSON file and select one of the downloaded .json files.
4. In the Prometheus dropdown that appears, select your Prometheus data source.
5. Click Import.

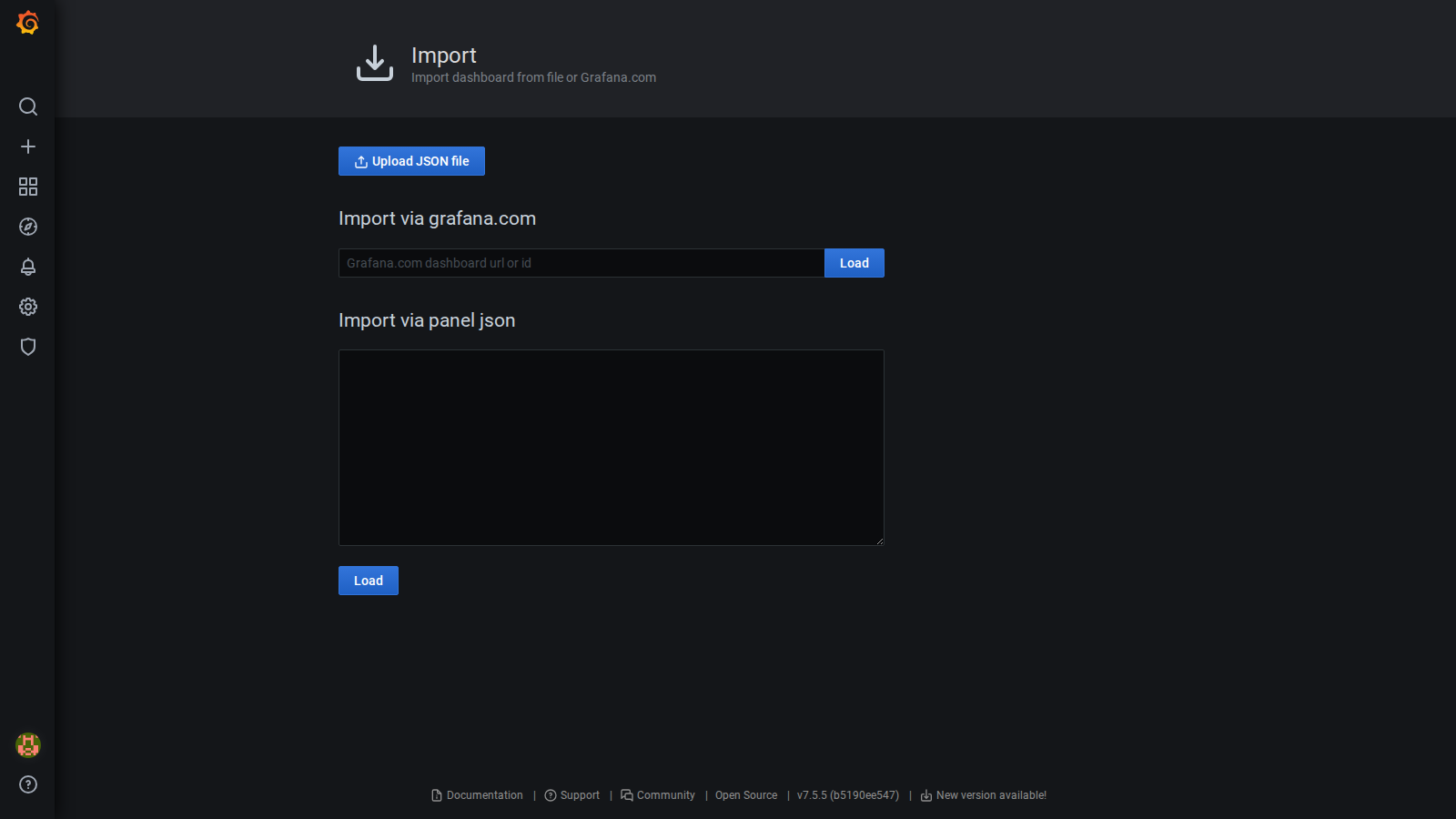

The import page looks like this — click Upload dashboard JSON file to select the file:

After importing all three files, they will appear under Dashboards in the left sidebar.

Step 6: Explore the Dashboard

After opening a dashboard, you will see dropdown filters at the top. These control which data is shown across all panels — change them to focus on a specific instance without editing any queries.

Once you set these, all panels update automatically. Below is what each dashboard shows:

KubeDB / ClickHouse / Summary — start here for a cluster health overview:

• Queries per Second — total query throughput across the cluster
• Memory Usage — current memory consumption vs. configured limits
• Merged Parts — background merge operations per second (health indicator)
• Inserted Rows / Bytes — data ingestion rate
• Replication Queue — pending replicated operations (should be near zero in healthy clusters)
• CPU / Storage — resource consumption vs. requests and limits

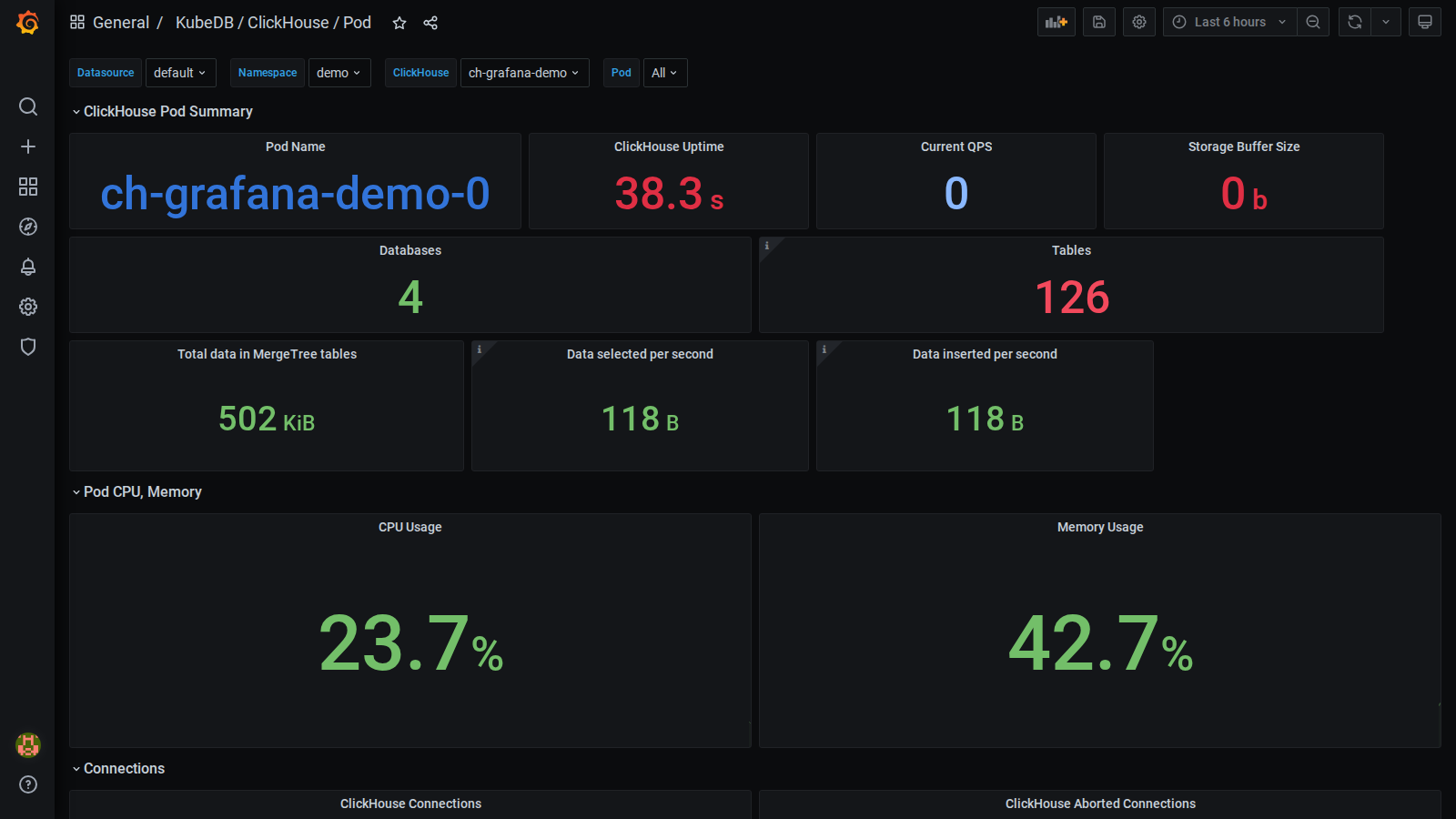

KubeDB / ClickHouse / Pod — drill into a specific pod:

• Queries — queries executed on this specific pod
• Memory — per-pod memory usage over time
• CPU — per-pod CPU usage
• Merge Operations — background merges on this pod
• Replicated Fetches — data fetched from other replicas

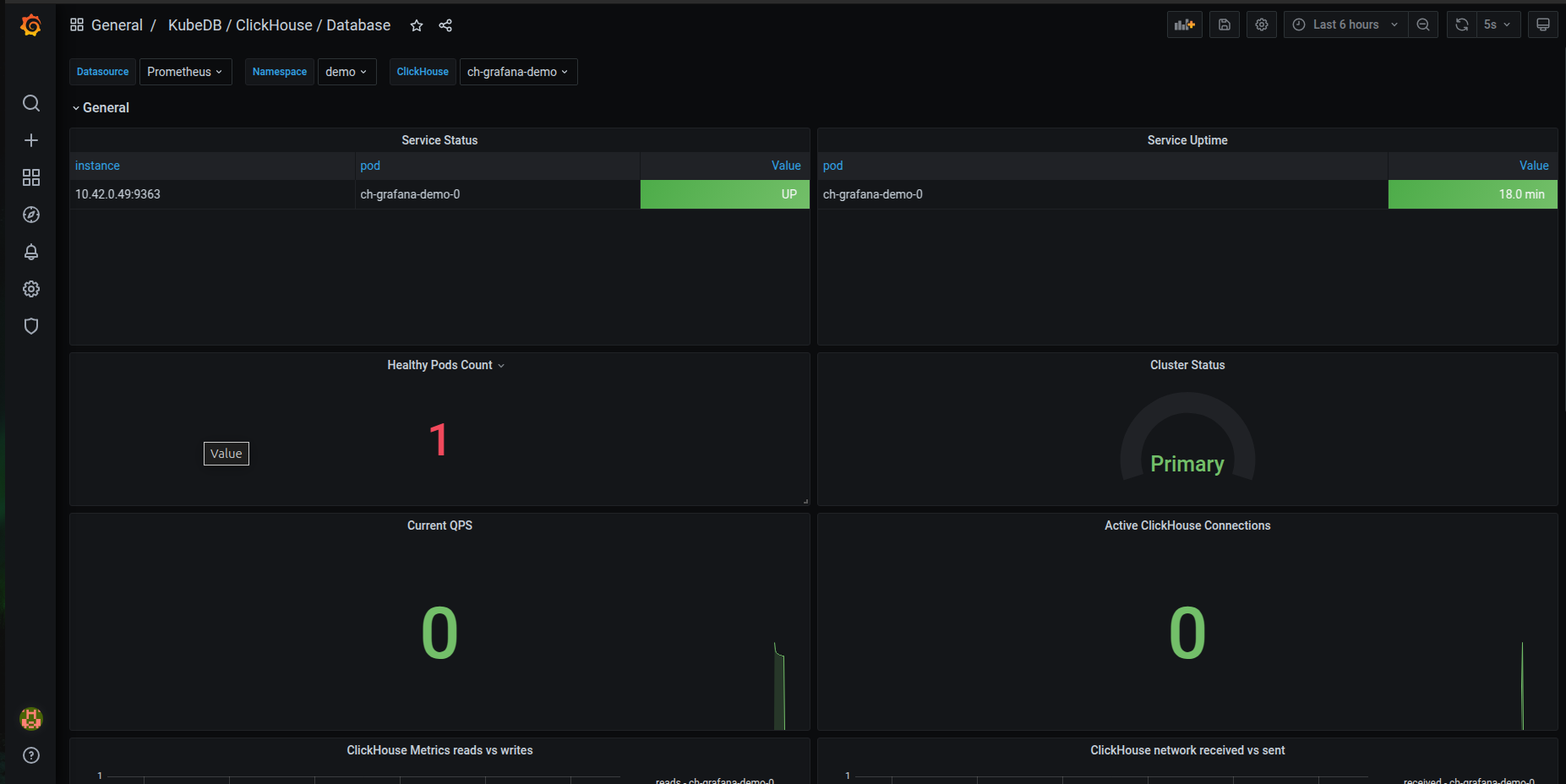

KubeDB / ClickHouse / Database — service health and query-level metrics, grouped into three collapsible sections:

General — service reachability and cluster role:

• Service Status / Service Uptime — whether the exporter endpoint is UP, and how long the pod has been running
• Healthy Pods Count — number of ClickHouse pods currently healthy
• Cluster Status — this pod’s role (Primary or replica)
• Current QPS / Active ClickHouse Connections — live query rate and open client connections
• ClickHouse Metrics reads vs writes — read vs. write operation rate
• ClickHouse network received vs sent — network throughput in/out

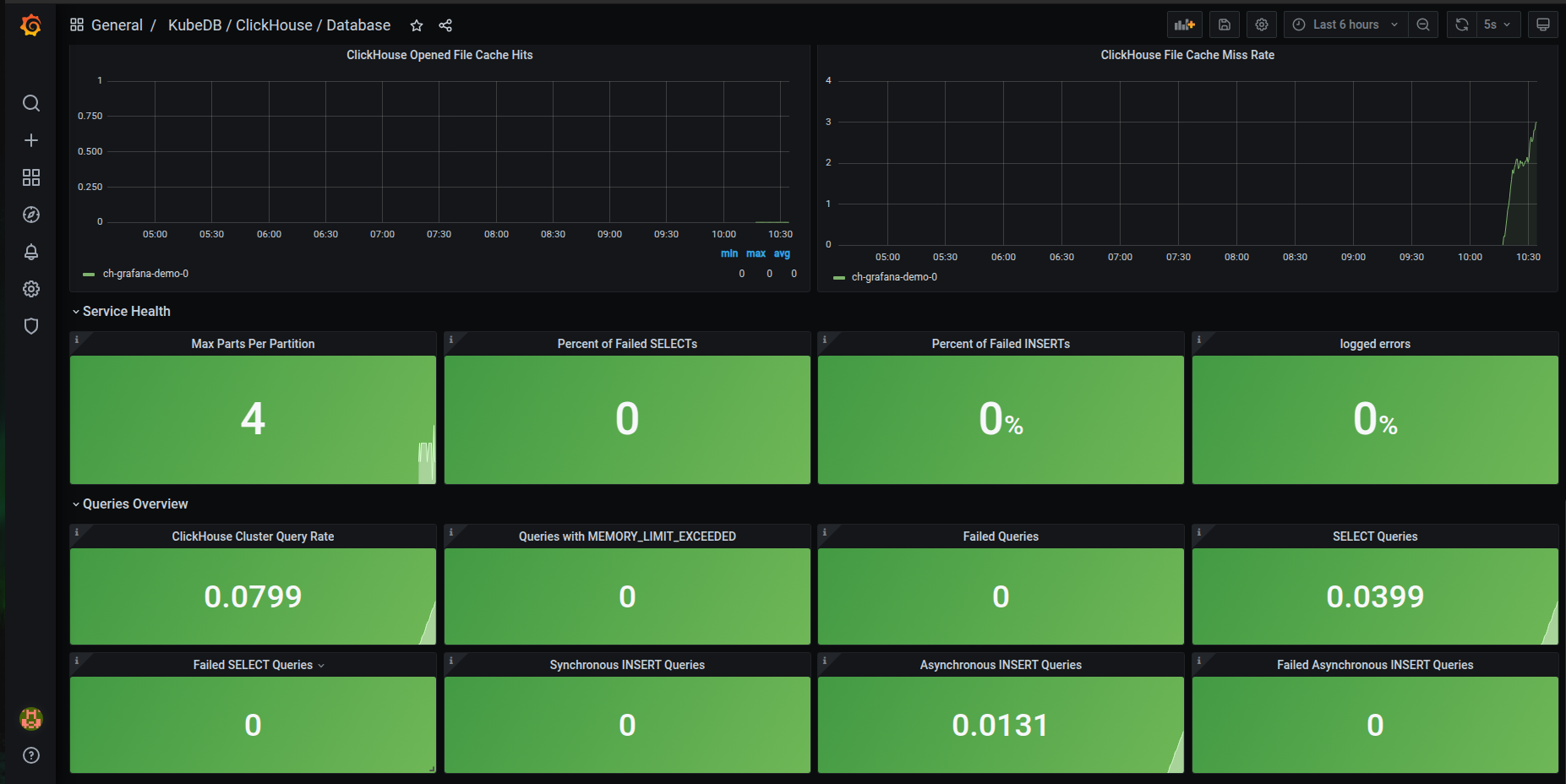

Service Health and Queries Overview — cache efficiency and query success rates:

• ClickHouse Opened File Cache Hits / File Cache Miss Rate — file cache effectiveness
• Max Parts Per Partition — highest number of active data parts in any partition (high counts may need compaction)
• Percent of Failed SELECTs / INSERTs, logged errors — error rates (should stay at 0)
• ClickHouse Cluster Query Rate — total queries per second across the cluster
• Queries with MEMORY_LIMIT_EXCEEDED, Failed Queries, Failed SELECT Queries, Failed Asynchronous INSERT Queries — failure counters (should stay at 0)
• SELECT Queries, Synchronous / Asynchronous INSERT Queries — query throughput by type

Cleaning up

# Remove the ClickHouse instance
kubectl delete clickhouse -n demo ch-grafana-demo

# Remove namespaces
kubectl delete ns demo

# Uninstall the Grafana dashboards chart, if you used Option A
helm uninstall kubedb-grafana-dashboards-clickhouse -n kubeops

# Uninstall grafana-operator (optional — skip if other DB guides on this cluster still use it)
helm uninstall grafana-operator -n kubeops

# Uninstall monitoring stack (optional)
helm uninstall prometheus -n monitoring
helm uninstall panopticon -n kubeops
kubectl delete ns monitoring kubeops

Next Steps

• Monitor your ClickHouse database with KubeDB using built-in Prometheus.
• Monitor your ClickHouse database with KubeDB using Prometheus Operator.
• Want to hack on KubeDB? Check our contribution guidelines.
