ZooKeeper Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed ZooKeeper instance using the zookeeper-alerts Helm chart.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the demo namespace:

  $ kubectl create ns demo
  namespace/demo created


• This tutorial assumes you already have a kube-prometheus-stack running in your cluster, with Prometheus configured so that both serviceMonitorSelector and ruleSelector match the label release: prometheus. See the Grafana Dashboard guide for how to deploy kube-prometheus-stack if you don’t have it yet.

  To verify the selectors:

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
  {"matchLabels":{"release":"prometheus"}}

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
  {"matchLabels":{"release":"prometheus"}}


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• For dashboards and visualisation, see Grafana Dashboard for ZooKeeper.

Note: YAML files used in this tutorial are stored in docs/examples/zookeeper folder in GitHub repository kubedb/docs.

Overview

• ZooKeeper (3.6+) ships with a built-in Prometheus MetricsProvider that exposes metrics natively on an admin/metrics port — KubeDB does not need to inject a separate exporter sidecar for ZooKeeper, unlike some other databases.
• ServiceMonitor (named {zookeeper-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape each ZooKeeper pod’s metrics endpoint every 10 seconds.
• PrometheusRule is created by the zookeeper-alerts chart and contains all ZooKeeper alert definitions grouped by concern: database health and provisioner.
• Prometheus Operator evaluates every rule expression on its configured evaluation interval and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy ZooKeeper with Monitoring Enabled

At first, let’s deploy a ZooKeeper database with monitoring enabled. Below is the ZooKeeper object we are going to create.

apiVersion: kubedb.com/v1alpha2
kind: ZooKeeper
metadata:
  name: zk-alert-demo
  namespace: demo
spec:
  version: "3.8.3"
  replicas: 3
  storage:
    resources:
      requests:
        storage: "1Gi"
    storageClassName: "standard"
    accessModes:
      - ReadWriteOnce
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      serviceMonitor:
        interval: 10s
        labels:
          release: prometheus

Here,

• spec.replicas: 3 is the documented minimum ZooKeeper ensemble size for quorum — keep it at 3 (or more, in odd numbers) for a production-like setup.
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

Let’s create the ZooKeeper resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/zookeeper/monitoring/zk-alert-demo.yaml
zookeeper.kubedb.com/zk-alert-demo created

Now, wait for the database to go into Ready state.

$ kubectl get zookeeper -n demo zk-alert-demo
NAME            VERSION   STATUS   AGE
zk-alert-demo   3.8.3     Ready    90s

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=zk-alert-demo"
NAME                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
zk-alert-demo                 ClusterIP   10.43.78.149    <none>        2181/TCP                     97s
zk-alert-demo-admin-server    ClusterIP   10.43.214.188   <none>        8080/TCP                     97s
zk-alert-demo-pods            ClusterIP   None            <none>        2181/TCP,2888/TCP,3888/TCP   97s
zk-alert-demo-stats           ClusterIP   10.43.250.162   <none>        7000/TCP                     97s

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n demo
NAME                    AGE
zk-alert-demo-stats     97s

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n demo zk-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Install zookeeper-alerts

The zookeeper-alerts chart creates a PrometheusRule resource containing all ZooKeeper alert definitions grouped by concern: database health and provisioner.

Why the Helm release name matters

The chart derives the PromQL job/instance scoping (and the PrometheusRule name) from the Helm release name, not from a values field — so the release name must match the ZooKeeper object’s name (zk-alert-demo) for the rules to be correctly scoped to this instance.

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector.

Install

$ helm upgrade -i zk-alert-demo oci://ghcr.io/appscode-charts/zookeeper-alerts \
    -n demo \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n demo
NAME            AGE
zk-alert-demo   30s

Confirm the release: prometheus label is present.

$ kubectl get prometheusrule -n demo zk-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

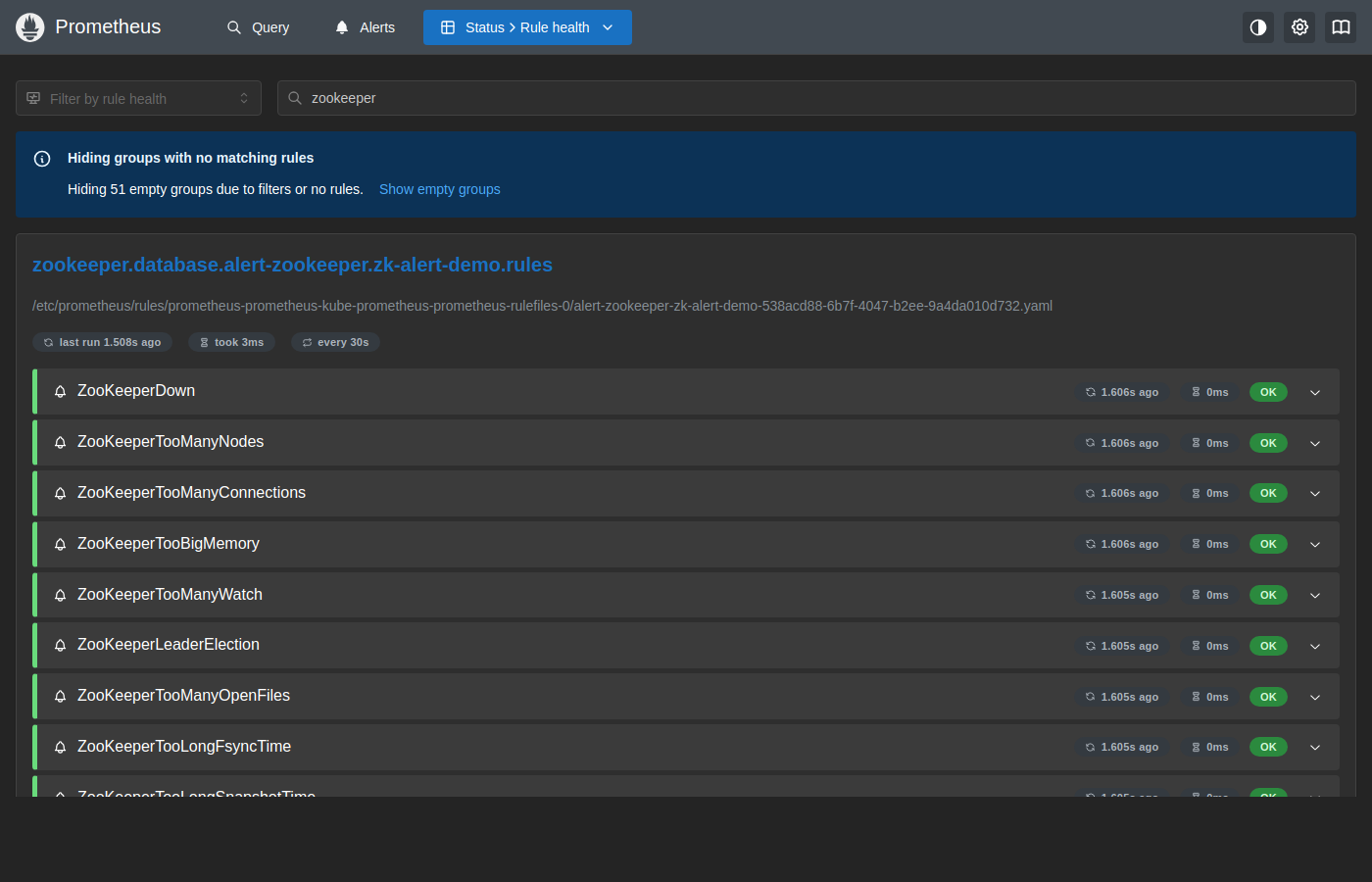

Confirm Prometheus loaded the rules

Port-forward the Prometheus UI and open the Status → Rule health page.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules?search=zookeeper.

The zookeeper.database.demo.zk-alert-demo.rules group is visible with all rules showing OK, confirming that Prometheus has loaded and is evaluating the ZooKeeper alert definitions.

Verify End-to-End

1. Check the metrics endpoint is serving

ZooKeeper’s built-in metrics provider serves Prometheus metrics at :7000/metrics directly from the ZooKeeper JVM — there is no separate exporter sidecar container to check for this database.

$ kubectl exec -n demo zk-alert-demo-0 -c zookeeper -- \
    wget -qO- localhost:7000/metrics | grep -m1 "^# HELP"
# HELP write_commit_proc_issued write_commit_proc_issued

A non-empty response confirms the JVM’s Prometheus servlet is up and exporting metrics.

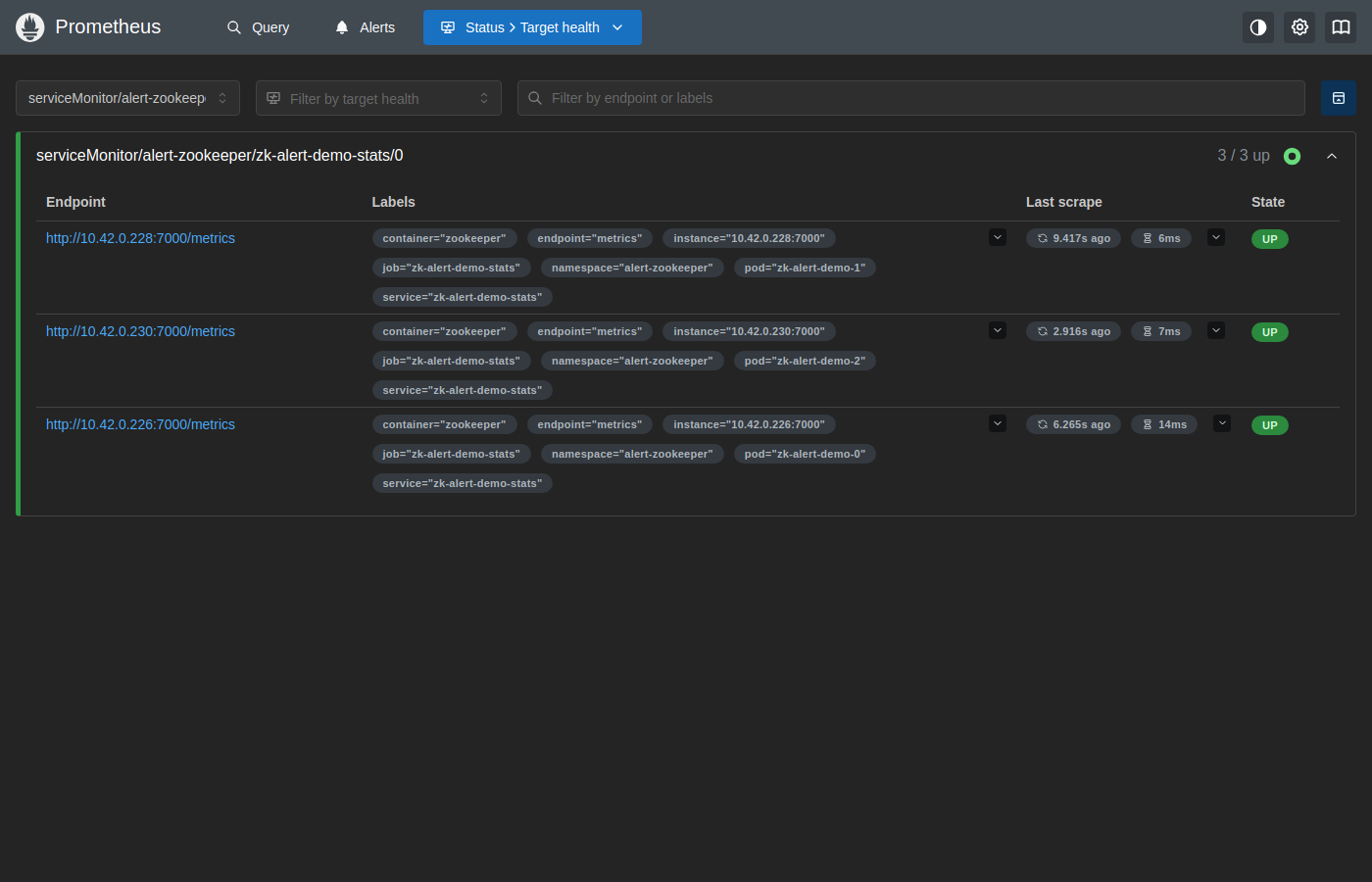

2. Check the Prometheus target is UP

Open http://localhost:9090/targets?search=zk-alert-demo.

All three targets under serviceMonitor/demo/zk-alert-demo-stats/0 show UP — one per ensemble member (zk-alert-demo-0, zk-alert-demo-1, zk-alert-demo-2).

Note: with more than 20 scrape pools on a busy cluster, the Prometheus React UI’s target-search box can sometimes default to showing an unrelated pool first. If that happens, use the pool dropdown (or the pool= URL parameter) to explicitly pick serviceMonitor/<namespace>/<name>-stats/0.

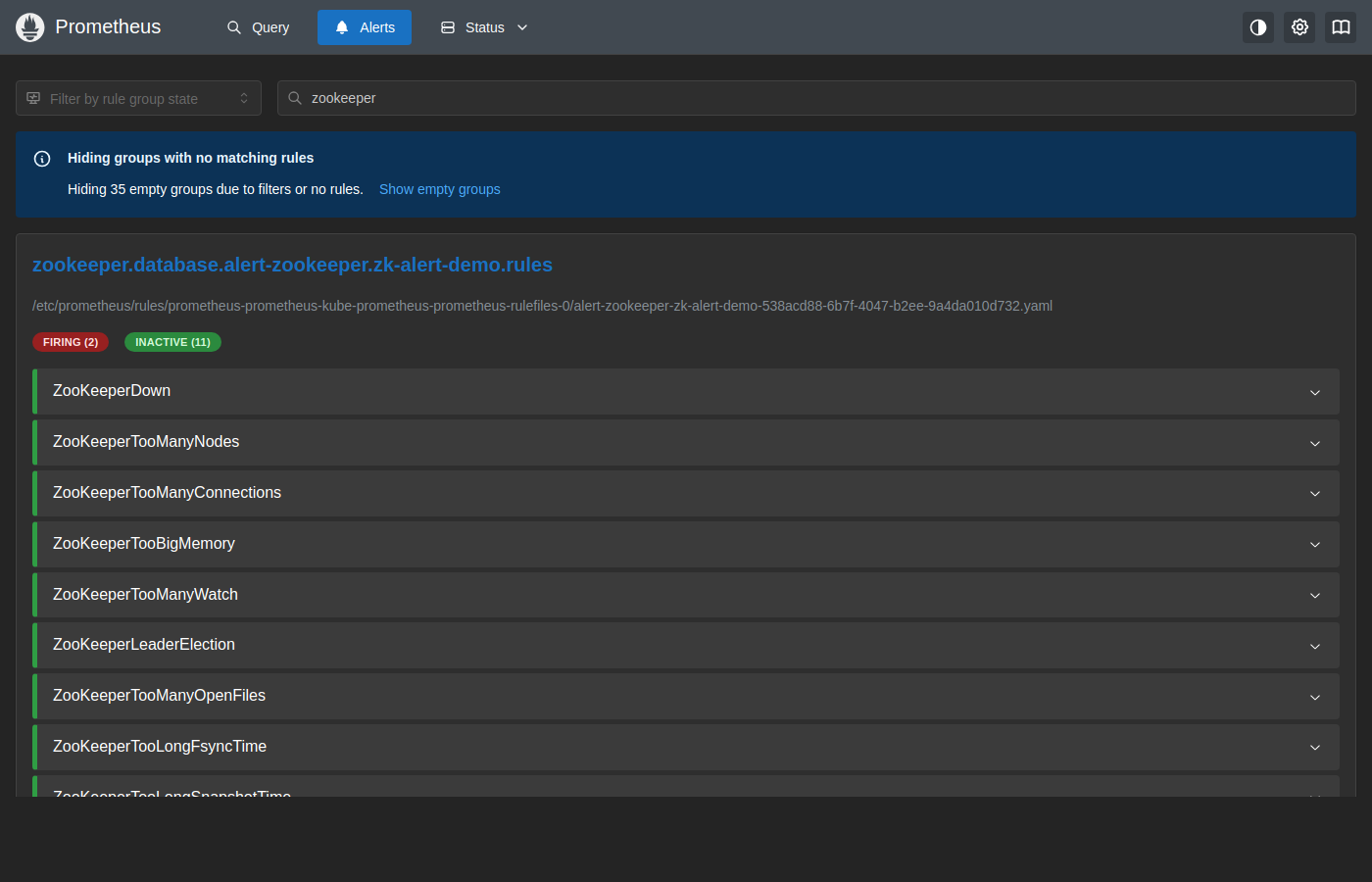

3. Confirm the ZooKeeper alerts are inactive

Open http://localhost:9090/alerts?search=zookeeper to see the ZooKeeper alert groups.

All 11 metric-driven rules in the zookeeper.database group (ZooKeeperDown, ZooKeeperTooManyNodes, ZooKeeperTooManyConnections, etc.) show INACTIVE, meaning the ensemble is healthy and no thresholds are breached.

Note: the DiskUsageHigh / DiskAlmostFull rules in the same group compare kubelet_volume_stats_used_bytes against the PVC’s usage on the underlying node. On a demo cluster where the node’s disk is already heavily utilized by other workloads, these two rules can legitimately show PENDING/FIRING independent of ZooKeeper itself — that reflects real node-level disk pressure, not a problem with the ZooKeeper instance. Give your PVC’s underlying disk enough free space if you want to keep these two alerts quiet in your own cluster.

4. Check AlertManager

Port-forward AlertManager to view any currently firing alerts.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093. With a healthy ZooKeeper ensemble, no ZooKeeperDown (or other database-group) alert for zk-alert-demo will be listed here.

Simulating a Firing Alert

The previous section confirmed that the ZooKeeper-specific alerts are INACTIVE while the ensemble is healthy. This section walks through deliberately triggering the ZooKeeperDown critical alert so you can observe the full alert lifecycle — from firing in Prometheus through to the AlertManager dashboard — and then resolve it.

1. Stop the ZooKeeper process

ZooKeeperDown fires on the standard Prometheus up{job="zk-alert-demo-stats"} == 0 scrape-health metric, with for: 1m — the target has to stay unreachable for a full minute before the alert transitions from PENDING to FIRING.

ZooKeeper ships as a single container per pod (no exporter sidecar), so killing the main JVM process brings the whole container down; the container then restarts automatically. Find the ZooKeeper JVM’s PID inside the pod and kill it:

$ kubectl exec -n demo zk-alert-demo-0 -c zookeeper -- pgrep -f QuorumPeerMain
38

$ kubectl exec -n demo zk-alert-demo-0 -c zookeeper -- kill -9 38

Because the container typically restarts within a few seconds — faster than the 1-minute for window — a single kill is usually not enough to observe a FIRING state. Repeat the kill every few seconds until the container is caught in CrashLoopBackOff, which keeps it down long enough to satisfy the 1-minute condition:

$ for i in $(seq 1 20); do
    PID=$(kubectl exec -n demo zk-alert-demo-0 -c zookeeper -- pgrep -f QuorumPeerMain 2>/dev/null | head -1)
    [ -n "$PID" ] && kubectl exec -n demo zk-alert-demo-0 -c zookeeper -- kill -9 "$PID"
    sleep 3
  done

$ kubectl get pod -n demo zk-alert-demo-0
NAME              READY   STATUS   RESTARTS      AGE
zk-alert-demo-0   0/1     Error    6 (93s ago)   56m

Poll the Prometheus API until the rule state flips from pending to firing (roughly 60–90 seconds after the pod first goes down):

$ curl -s "http://localhost:9090/api/v1/rules?type=alert" \
    | jq -r '.data.groups[] | select(.name | contains("zookeeper.database")) | .rules[] | select(.name=="ZooKeeperDown") | .state'
firing

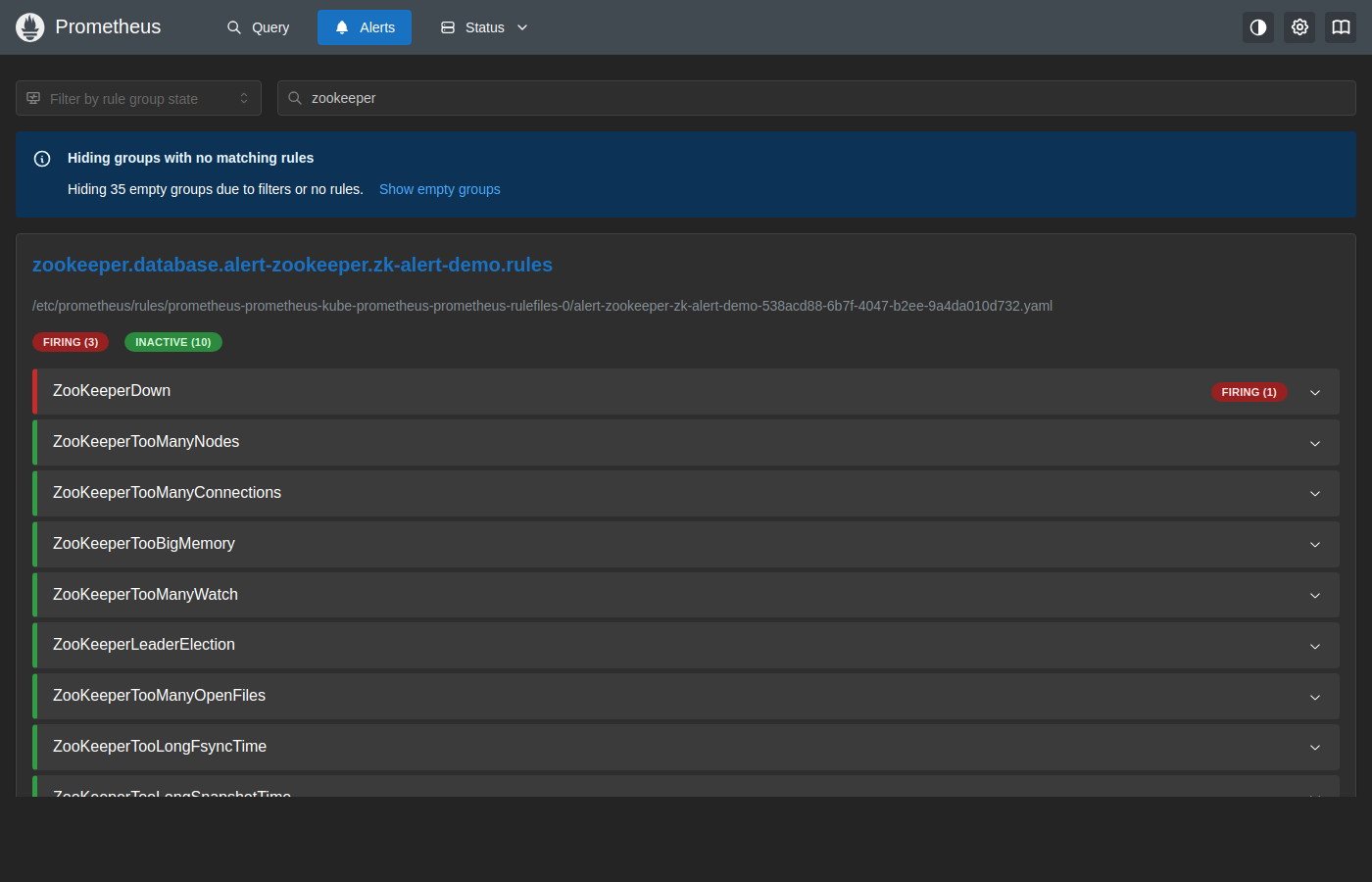

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts?search=zookeeper.

ZooKeeperDown now shows FIRING (1) — for the single pod (zk-alert-demo-0) that was taken down; the other two ensemble members remain healthy.

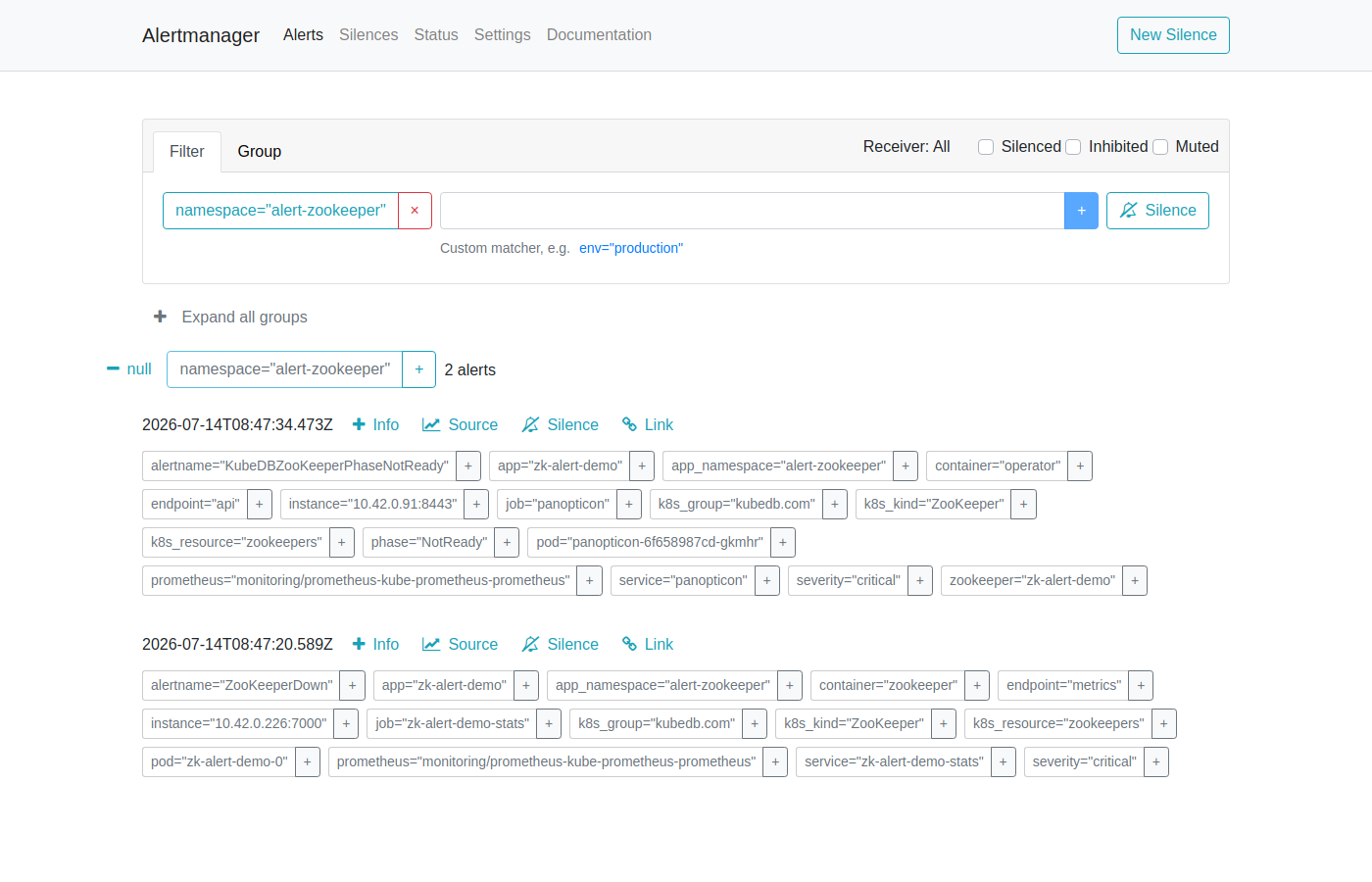

3. Check the AlertManager dashboard

Open http://localhost:9093/#/alerts?filter=%7Bnamespace%3D%22demo%22%7D.

AlertManager shows the ZooKeeperDown alert. The alert card displays:

• Severity: critical
• Instance: zk-alert-demo-0 in the demo namespace
• job: zk-alert-demo-stats
• Started: timestamp when the alert first fired

In this demo run, AlertManager also showed a KubeDBZooKeeperPhaseNotReady alert (from the provisioner group) firing at the same time — the repeated CrashLoopBackOff was severe enough that the KubeDB operator itself marked the ZooKeeper object NotReady, which is a realistic example of two independent alert groups correctly firing together from a single underlying failure.

AlertManager routes these alerts to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alerts are visible here but silently dropped.

4. Restore ZooKeeper

Delete the pod so KubeDB recreates it cleanly instead of leaving it in CrashLoopBackOff.

$ kubectl delete pod -n demo zk-alert-demo-0

Once the pod is back to Running and its metrics endpoint is reachable again, Prometheus marks ZooKeeperDown INACTIVE and AlertManager sends a resolved notification to all receivers.

Alert Reference

All alerts are scoped to the zk-alert-demo instance in the demo namespace via the PromQL label filters job="zk-alert-demo-stats" and namespace="demo".

Database Group

Fired based on live metrics from ZooKeeper’s built-in Prometheus metrics provider.

Provisioner Group

Monitors the KubeDB operator’s view of the ZooKeeper resource phase.

OpsManager Group

The chart’s values.yaml declares an opsManager group, intended to track ZooKeeperOpsRequest lifecycle during upgrades, scaling, and reconfiguration — the same pattern used by other *-alerts charts:

Verified against chart v2026.7.14: unlike the database and provisioner groups, this opsManager group is not currently rendered into the PrometheusRule template (kubectl get prometheusrule -n demo zk-alert-demo -o jsonpath='{.spec.groups[*].name}' only returns zookeeper.database... and zookeeper.provisioner...). The values above document the intended configuration surface; confirm with helm template against the chart version you install whether opsManager rules are actually emitted before relying on them for ZooKeeperOpsRequest alerting:

$ helm template zk-alert-demo oci://ghcr.io/appscode-charts/zookeeper-alerts \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    | grep "alert: "

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          zookeeperTooManyConnections:
            enabled: true
            duration: "5m"
            val: 100        # fire at 100 connections instead of the default 60
            severity: warning
          diskUsageHigh:
            enabled: true
            val: 90          # raise the disk-usage-high threshold to 90%
            duration: "5m"
            severity: warning
      provisioner:
        enabled: "none"      # disable all provisioner alerts

$ helm upgrade zk-alert-demo oci://ghcr.io/appscode-charts/zookeeper-alerts \
    -n demo \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the zookeeper-alerts release
$ helm uninstall zk-alert-demo -n demo

# Remove the ZooKeeper instance
$ kubectl delete zookeeper -n demo zk-alert-demo

# Delete namespace
$ kubectl delete ns demo

Next Steps

• Monitor your ZooKeeper database with KubeDB using builtin Prometheus.
• Monitor your ZooKeeper database with KubeDB using Prometheus operator.
• Visualise ZooKeeper metrics with Grafana Dashboard.
