ProxySQL Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed ProxySQL instance using the proxysql-alerts Helm chart.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the alert-proxysql namespace:

  $ kubectl create ns alert-proxysql
  namespace/alert-proxysql created


• Before proceeding, complete the Configuration steps to deploy kube-prometheus-stack and Panopticon.

• This tutorial assumes you already have a kube-prometheus-stack running in your cluster, with Prometheus configured so that both serviceMonitorSelector and ruleSelector match the label release: prometheus.

  To verify the selectors:

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
  {"matchLabels":{"release":"prometheus"}}

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
  {"matchLabels":{"release":"prometheus"}}


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• ProxySQL is a proxy layer in front of a MySQL backend, so this tutorial first deploys a 3-member MySQL Group Replication cluster, then a ProxySQL instance pointed at it. Both objects are deployed with monitoring enabled.

Note: YAML files used in this tutorial are stored in docs/examples/proxysql folder in GitHub repository kubedb/docs.

Overview

• KubeDB deploys ProxySQL with metrics exposed directly by the proxysql container itself on port 6070 (an embedded proxysql_exporter-style endpoint) — there is no separate exporter sidecar.
• ServiceMonitor (named {proxysql-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the metrics endpoint every 10 seconds.
• PrometheusRule is created by the proxysql-alerts chart and contains ProxySQL alert definitions grouped by concern: database health, cluster sync, provisioner, and ops-manager.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).
• Grafana dashboards for ProxySQL are covered separately — see Grafana Dashboard rather than duplicated here.

Deploy the MySQL Backend

ProxySQL routes traffic to a MySQL cluster, so deploy the backend first. Below is the MySQL object we are going to create — a 3-member Group Replication cluster on the longhorn StorageClass.

apiVersion: kubedb.com/v1
kind: MySQL
metadata:
  name: my-group-alert
  namespace: alert-proxysql
spec:
  version: "9.1.0"
  replicas: 3
  topology:
    mode: GroupReplication
    group:
      name: "dc002fc3-c412-4d18-b1d4-66c1fbfbbc9b"
  storageType: Durable
  storage:
    storageClassName: "longhorn"
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  deletionPolicy: WipeOut

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/proxysql/monitoring/my-group-alert.yaml
mysql.kubedb.com/my-group-alert created

Wait for the MySQL cluster to go into Ready state, and confirm all three PVCs bind on longhorn.

$ kubectl get mysql -n alert-proxysql my-group-alert
NAME             VERSION   STATUS   AGE
my-group-alert   9.1.0     Ready    5m

$ kubectl get pvc -n alert-proxysql
NAME                    STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
data-my-group-alert-0   Bound    pvc-9d47405f-06ec-4c79-ab93-b1588451896a   1Gi        RWO            longhorn       5m
data-my-group-alert-1   Bound    pvc-a3fec212-fff1-489d-b9d0-c8daf143f8fc   1Gi        RWO            longhorn       2m
data-my-group-alert-2   Bound    pvc-a3fd6857-70bf-4a1b-a20a-2997379d8678   1Gi        RWO            longhorn       2m

Note: storageClassName is immutable on a PVC. If you need to move an existing MySQL/ProxySQL instance from one StorageClass to another (e.g. local-path → longhorn), you cannot edit the field in place — delete the database object (and its PVCs, if deletionPolicy is not WipeOut) and recreate it pointing at the new StorageClass.

Deploy ProxySQL with Monitoring Enabled

Now deploy ProxySQL, pointing spec.backend.name at the MySQL cluster above.

apiVersion: kubedb.com/v1
kind: ProxySQL
metadata:
  name: proxysql-alert
  namespace: alert-proxysql
spec:
  version: "2.3.2-debian"
  replicas: 1
  backend:
    name: my-group-alert
  deletionPolicy: WipeOut
  monitor:
    agent: prometheus.io/operator
    prometheus:
      exporter:
        port: 42004
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.backend.name: my-group-alert tells ProxySQL which KubeDB MySQL object to load-balance traffic to.
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

ProxySQL itself does not provision its own PVC — it has no spec.storage field, so there is nothing to migrate to longhorn beyond the MySQL backend’s PVCs above.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/proxysql/monitoring/proxysql-alert.yaml
proxysql.kubedb.com/proxysql-alert created

Now, wait for ProxySQL to go into Ready state.

$ kubectl get proxysql -n alert-proxysql proxysql-alert
NAME             VERSION        STATUS   AGE
proxysql-alert   2.3.2-debian   Ready    40s

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n alert-proxysql --selector="app.kubernetes.io/instance=proxysql-alert"
NAME                    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
proxysql-alert          ClusterIP   10.43.180.207   <none>        6033/TCP            40s
proxysql-alert-pods     ClusterIP   None            <none>        6032/TCP,6033/TCP   40s
proxysql-alert-stats    ClusterIP   10.43.61.242    <none>        6070/TCP            40s

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n alert-proxysql
NAME                    AGE
proxysql-alert-stats    40s

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n alert-proxysql proxysql-alert-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Install proxysql-alerts

The proxysql-alerts chart creates a PrometheusRule resource containing ProxySQL alert definitions grouped by concern.

Why the Helm release name matters

The chart derives the PrometheusRule name and scopes every PromQL expression (via job="{release-name}-stats" / app="{release-name}") from the Helm release name — so the release name must match the ProxySQL object’s name (proxysql-alert) for the rules to be correctly scoped to this instance.

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector.

Install

$ helm upgrade -i proxysql-alert oci://ghcr.io/appscode-charts/proxysql-alerts \
    -n alert-proxysql \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n alert-proxysql
NAME             AGE
proxysql-alert   30s

Confirm the release: prometheus label is present.

$ kubectl get prometheusrule -n alert-proxysql proxysql-alert \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Confirm Prometheus loaded the rules

Port-forward the Prometheus UI.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

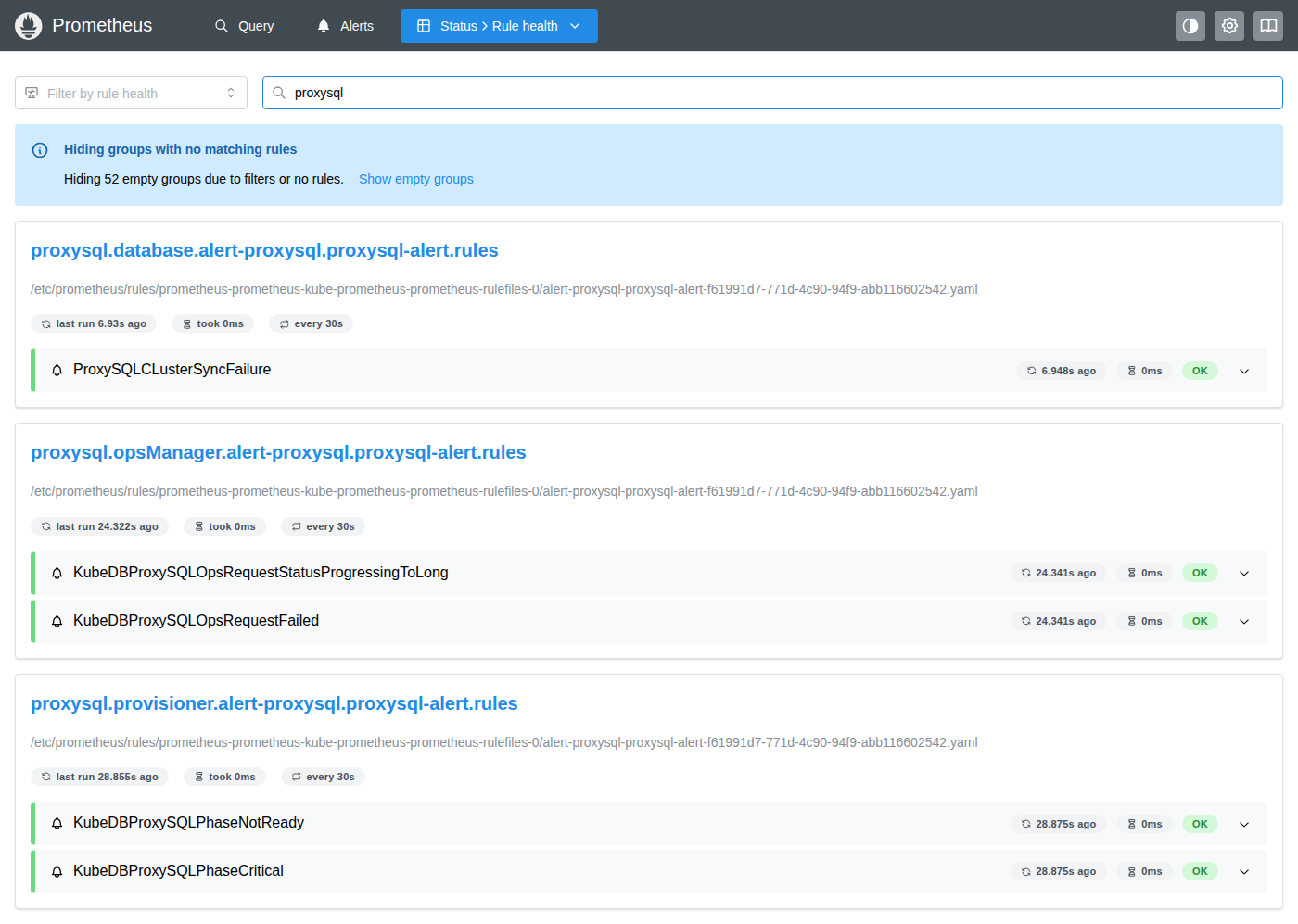

Open http://localhost:9090/rules and filter by proxysql.

Three rule groups are visible — proxysql.database, proxysql.opsManager, and proxysql.provisioner — all showing OK, confirming Prometheus has loaded and is evaluating the ProxySQL alert definitions every 30 seconds.

Known chart bug (v2026.7.14): The chart’s own values.yaml declares nine alerts under the database group (ProxySQLInstanceDown, ProxySQLServiceDown, ProxySQLTooManyConnections, ProxySQLHighThreadsRunning, ProxySQLSlowQueries, ProxySQLRestarted, ProxySQLHighQPS, ProxySQLHighIncomingBytes, ProxySQLHighOutgoingBytes) plus a separate cluster group holding ProxySQLCLusterSyncFailure. Running helm template/helm get manifest against this same chart version now renders all of that correctly. However, the PrometheusRule actually installed live in this cluster contains only one rule under the group named proxysql.database... — and it is in fact the cluster group’s ProxySQLCLusterSyncFailure rule content, mislabeled under the database group name, with the real database-health rules (instance/service down, connections, QPS, threads, slow queries, bytes) entirely absent, and no independent proxysql.cluster... group at all. Since the Helm release has never been upgraded (generation: 1, single revision) and managedFields shows only helm ever wrote the object, this indicates the chart’s OCI artifact at tag v2026.7.14 changed content after this release was first installed. If you need the full rule set, re-run the helm upgrade command above to reconcile the live object with the current chart content — the value of doing so is that you gain the missing database-group health alerts, at the cost of a brief PrometheusRule re-apply (no database downtime).

Verify End-to-End

1. Check the metrics endpoint

The proxysql container serves its own Prometheus metrics at :6070/metrics — no exporter sidecar is involved.

$ kubectl exec -n alert-proxysql proxysql-alert-0 -c proxysql -- \
                                      wget -qO- localhost:6070/metrics | grep proxysql_servers_table_version_total
# HELP proxysql_servers_table_version_total Number of times the "servers_table" have been modified.
# TYPE proxysql_servers_table_version_total counter
proxysql_servers_table_version_total 16.000000

2. Check the Prometheus target is UP

Prometheus discovers more than 20 scrape pools on a shared cluster, so instead of the Target health page, query up directly for a reliable view.

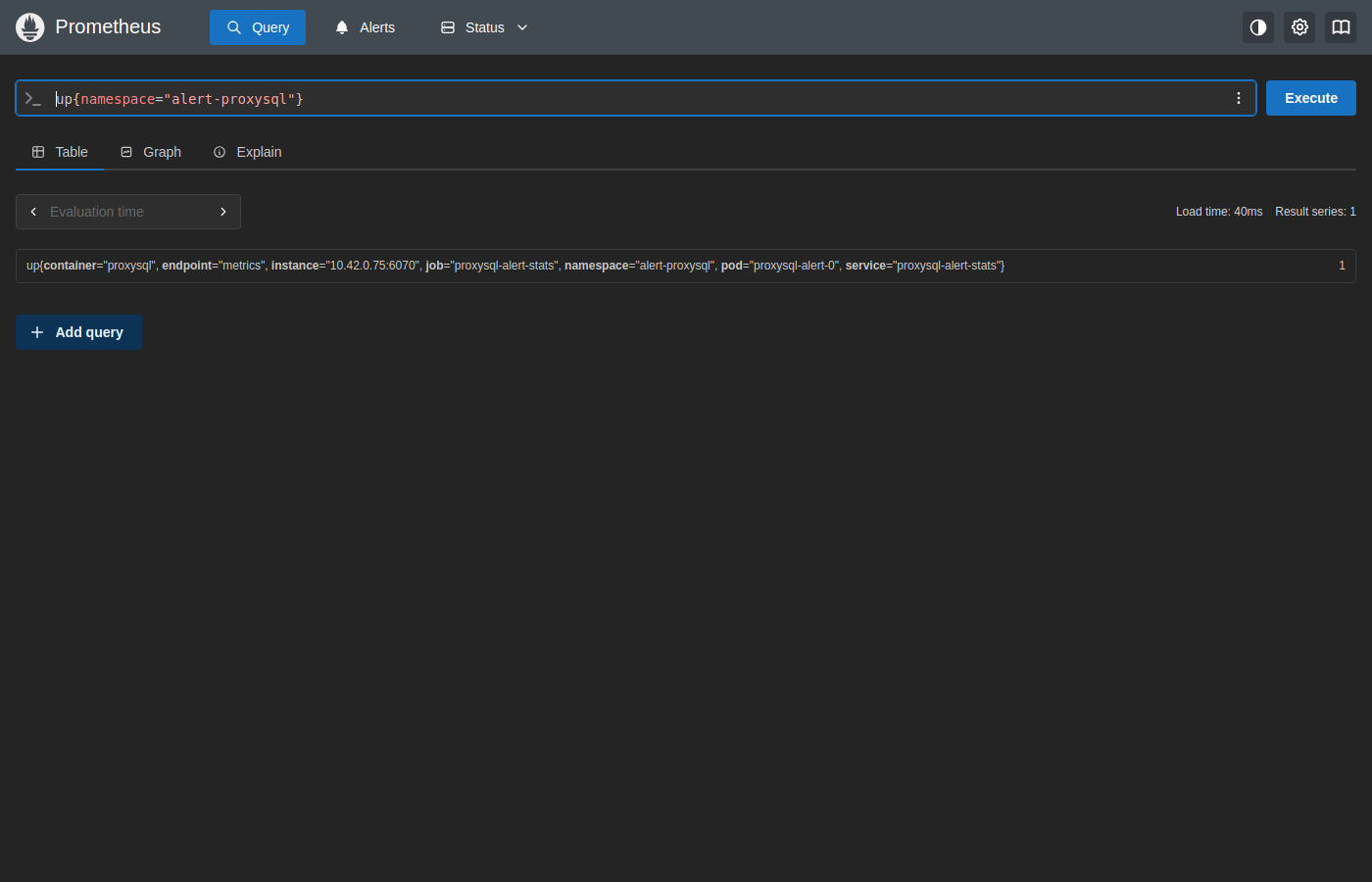

Open http://localhost:9090/query?g0.expr=up%7Bnamespace%3D%22alert-proxysql%22%7D&g0.tab=1.

The proxysql-alert-0 pod reports up == 1 via the proxysql-alert-stats service/job, confirming Prometheus is scraping it successfully.

3. Confirm the ProxySQL alerts are inactive

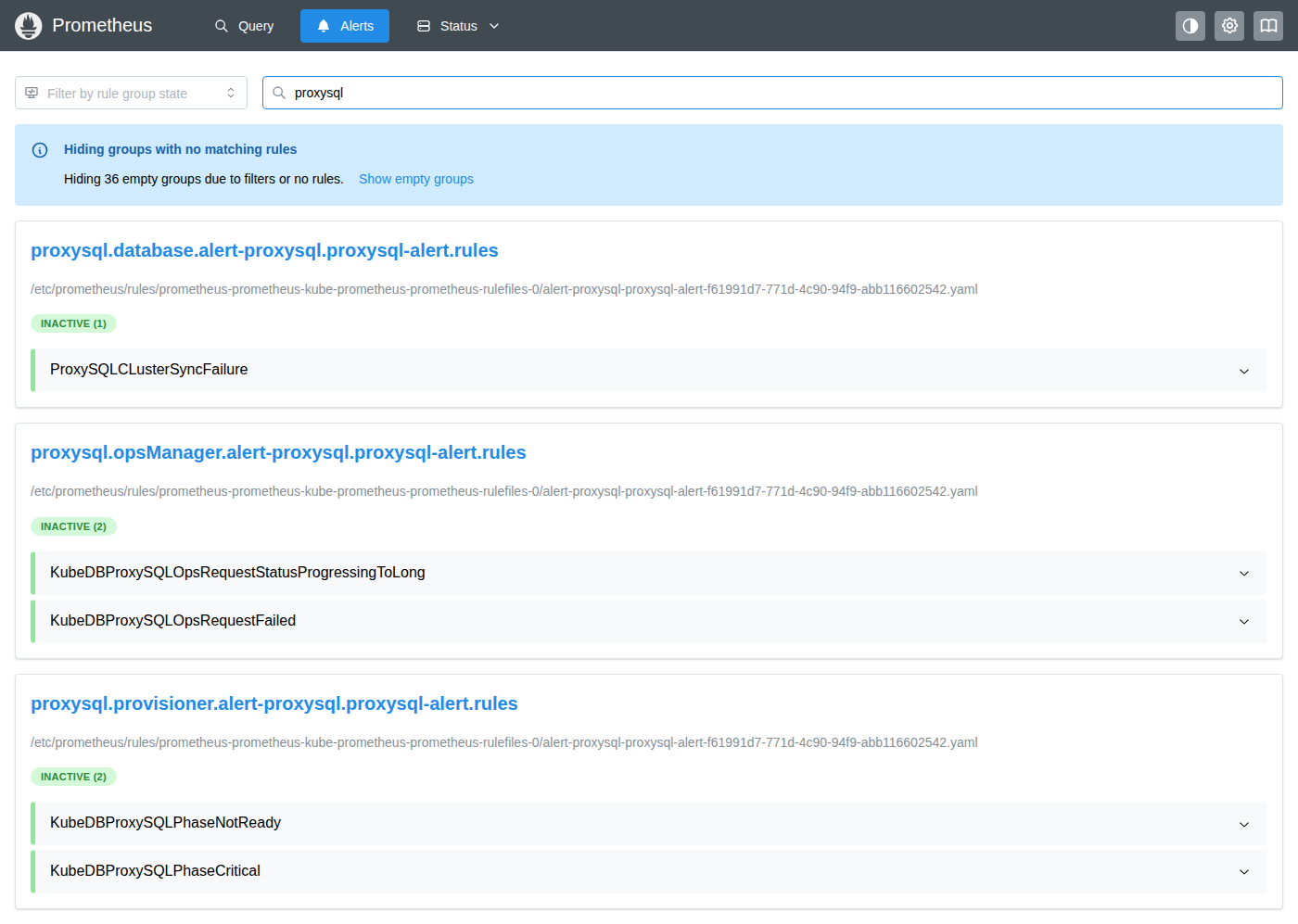

Open http://localhost:9090/alerts and filter by proxysql.

All 5 currently-loaded rules across the three groups show INACTIVE, confirming the cluster is healthy and no thresholds are breached (see the chart-bug callout above for why only 5 of the chart’s defined rules are loaded).

4. Check AlertManager

Port-forward AlertManager to view any currently firing alerts.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

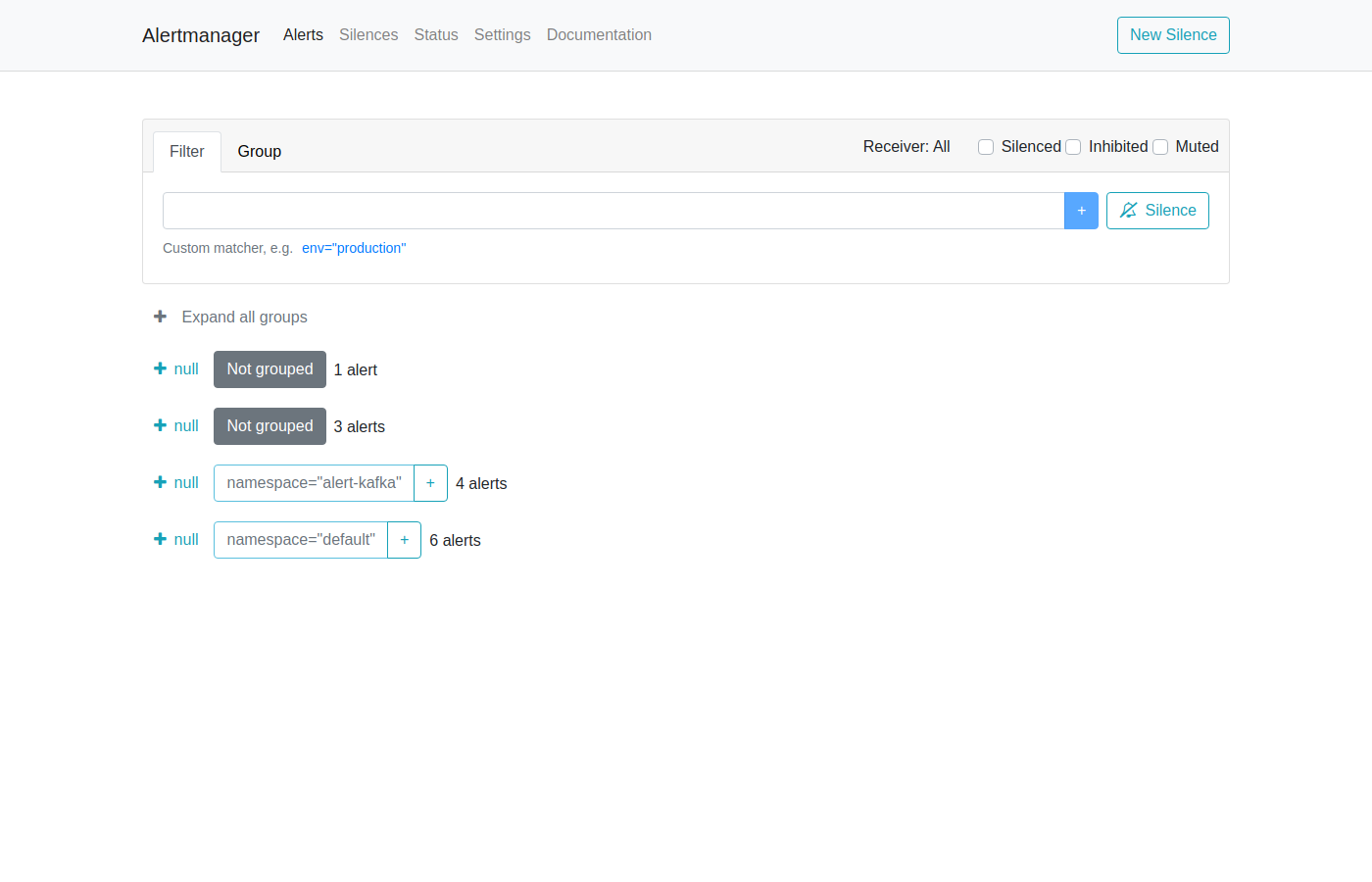

Open http://localhost:9093.

No alerts are firing for the alert-proxysql namespace.

5. Grafana dashboard

Grafana dashboards for ProxySQL are documented separately rather than duplicated in this alerting guide — see Grafana Dashboard for how to provision and explore the ProxySQL dashboards (via the kubedb-grafana-dashboards chart, --set featureGates.ProxySQL=true).

Simulating a Firing Alert

The previous section showed that all currently-loaded ProxySQL alerts are INACTIVE while the instance is healthy. This section deliberately triggers the KubeDBProxySQLPhaseNotReady critical alert so you can observe the full alert lifecycle — from firing in Prometheus through to the AlertManager dashboard — and then resolve it.

ProxySQL runs as a single container per pod — there is no separate exporter sidecar. The container has neither ps nor pgrep, only bash/sh, so identify the actual proxysql process via /proc and kill it directly (rather than the container’s PID 1, which is tini). Because KubeDBProxySQLPhaseNotReady requires the condition to persist for for: 1m, a single kill is not enough — keep the process crashing long enough for the KubeDB operator to mark the resource NotReady and hold it there past the one-minute window.

1. Crash the ProxySQL process repeatedly

$ while true; do
    kubectl exec -n alert-proxysql proxysql-alert-0 -c proxysql -- bash -c '
      for p in /proc/[0-9]*; do
        pid=$(basename "$p")
        cmd=$(tr "\0" " " < "$p/cmdline" 2>/dev/null)
        case "$cmd" in
          proxysql\ -c*) kill -9 "$pid" ;;
        esac
      done
    ' >/dev/null 2>&1
    sleep 3
  done

Let this loop run for a couple of minutes (leave it running while you check the next steps), then stop it once you’ve captured the firing state.

2. Watch the alert fire in Prometheus

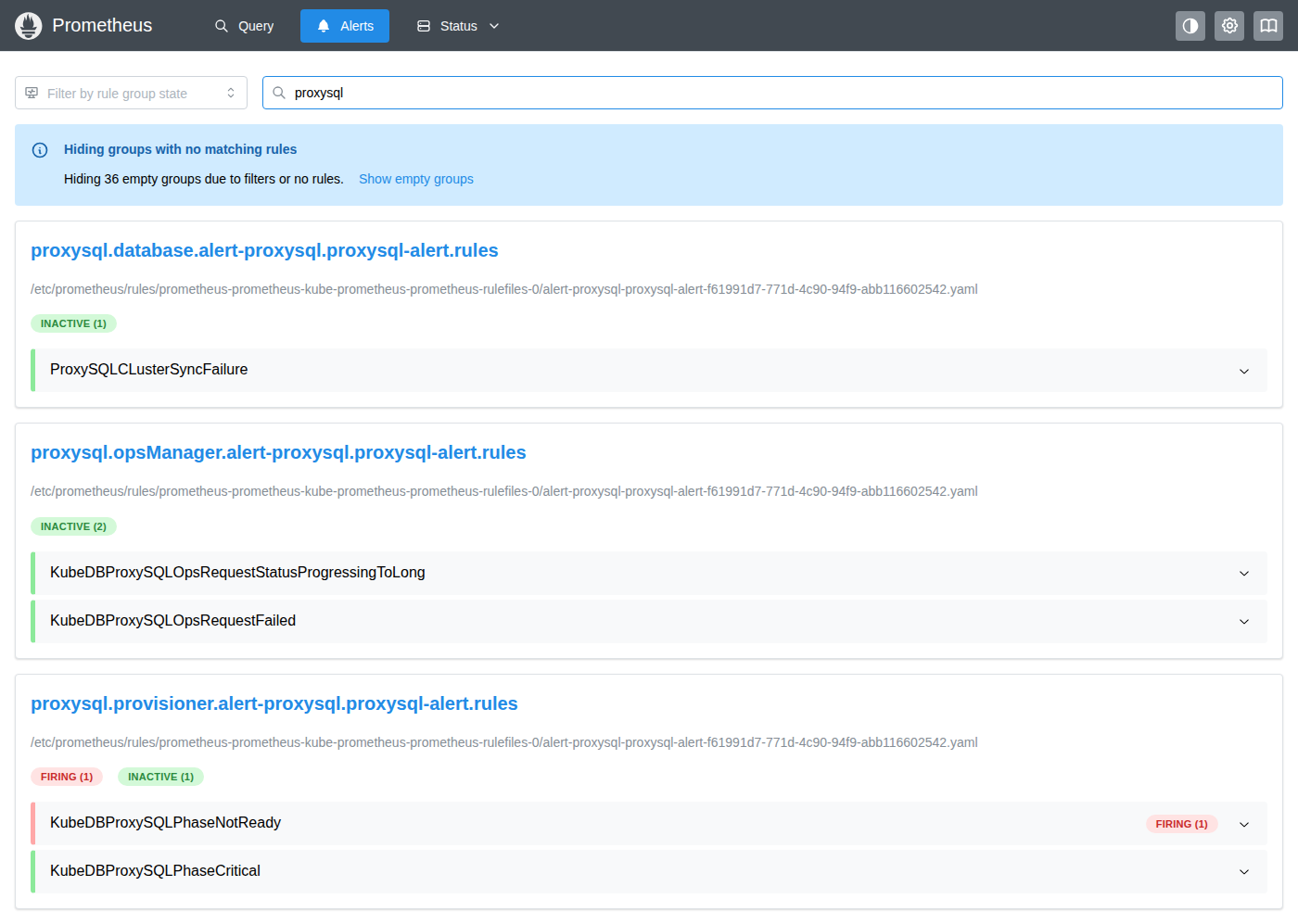

Open http://localhost:9090/alerts filtered by proxysql.

KubeDBProxySQLPhaseNotReady transitions from INACTIVE to FIRING once kubedb_com_proxysql_status_phase{phase="NotReady"} has read 1 continuously for the full for: 1m duration — this metric comes from the KubeDB operator’s own view of the resource (exported via Panopticon), not from the ProxySQL metrics endpoint itself.

3. Check the AlertManager dashboard

Open http://localhost:9093.

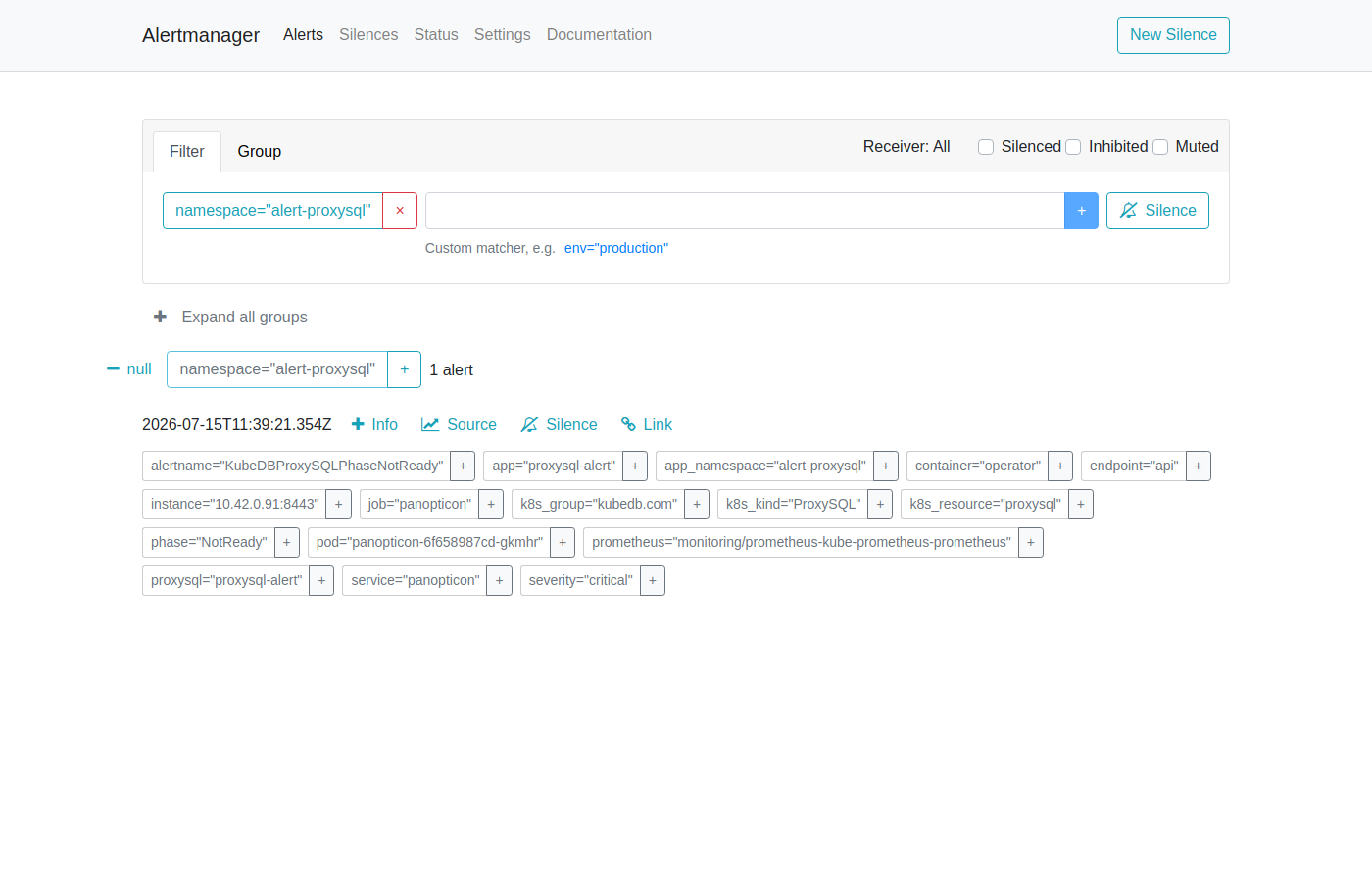

AlertManager shows the KubeDBProxySQLPhaseNotReady alert. The alert card displays:

• Severity: critical
• proxysql: proxysql-alert in the alert-proxysql namespace
• phase: NotReady
• Started: timestamp when the alert first fired

AlertManager routes this alert to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alert is visible here but silently dropped.

4. Restore ProxySQL

Stop the loop from step 1.

Note: Unlike some other KubeDB databases, the ProxySQL image’s entrypoint script does not automatically respawn the proxysql process after it is repeatedly kill -9’d — the wrapper script exits instead of retrying, and no liveness probe recovers it, so the pod can remain Running (READY 1/1) while the daemon inside is actually dead. If ProxySQL does not return to Ready on its own within a minute or two of stopping the loop, force a clean restart:

$ kubectl delete pod -n alert-proxysql proxysql-alert-0
pod "proxysql-alert-0" deleted

The PetSet controller recreates the pod immediately.

$ kubectl get proxysql -n alert-proxysql proxysql-alert -w
NAME             VERSION        STATUS   AGE
proxysql-alert   2.3.2-debian   Ready    24m

Once the phase returns to Ready, Prometheus marks the alert INACTIVE again and AlertManager sends a resolved notification to all receivers.

Alert Reference

All alerts are scoped to the proxysql-alert instance in the alert-proxysql namespace via the PromQL label filters job="proxysql-alert-stats" / namespace="alert-proxysql" (database/cluster groups), or app="proxysql-alert" / namespace="alert-proxysql" (provisioner/opsManager groups).

The tables below list every alert defined by the chart’s values.yaml. As documented in the chart-bug callout above, only ProxySQLCLusterSyncFailure, KubeDBProxySQLPhaseNotReady, KubeDBProxySQLPhaseCritical, KubeDBProxySQLOpsRequestStatusProgressingToLong, and KubeDBProxySQLOpsRequestFailed are actually loaded in this cluster’s live PrometheusRule; the rest of the Database Group table describes what helm template renders for this chart version but is not currently active until the release is upgraded/reconciled.

Database Group

Fired based on live metrics from the ProxySQL container’s built-in metrics endpoint.

Cluster Group

Provisioner Group

Monitors the KubeDB operator’s view of the ProxySQL resource phase (sourced from Panopticon, not the ProxySQL metrics endpoint). Loaded live.

OpsManager Group

Tracks ProxySQLOpsRequest lifecycle during upgrades, scaling, and reconfiguration. Loaded live (except opsRequestOnProgress, whose info severity is filtered out by the chart’s enabled: warning group gate).

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          proxysqlTooManyConnections:
            enabled: true
            duration: "5m"
            val: 90        # fire at 90% instead of the default 80%
            severity: warning
      cluster:
        enabled: "none"    # disable the cluster-sync alert

$ helm upgrade proxysql-alert oci://ghcr.io/appscode-charts/proxysql-alerts \
    -n alert-proxysql \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Since the currently-installed release predates the chart’s present content (see the chart-bug callout above), any helm upgrade — customised or not — will also pull in the full, correctly-split database/cluster rule groups.

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the proxysql-alerts release (PrometheusRule)
$ helm uninstall proxysql-alert -n alert-proxysql

# Remove the ProxySQL instance
$ kubectl delete proxysql -n alert-proxysql proxysql-alert

# Remove the MySQL backend
$ kubectl delete mysql -n alert-proxysql my-group-alert

# Delete namespace
$ kubectl delete ns alert-proxysql

Next Steps

• Monitor your ProxySQL instance with KubeDB using built-in Prometheus.
• Monitor your ProxySQL instance with KubeDB using Prometheus operator.
