Cassandra Alerting with Prometheus

This tutorial shows you how to configure Prometheus-based alerting for a KubeDB-managed Cassandra cluster using the cassandra-alerts Helm chart.

Before You Begin

• Ensure you have a Kubernetes cluster and that kubectl is configured to communicate with it. If you do not already have a cluster, you can create one using kind.

• Install the KubeDB operator by following the steps here.

• Deploy the database in the demo namespace:

  $ kubectl create ns demo
  namespace/demo created


• This tutorial assumes you already have a kube-prometheus-stack running in your cluster, with Prometheus configured so that both serviceMonitorSelector and ruleSelector match the label release: prometheus. See the Grafana Dashboard guide for how to deploy kube-prometheus-stack if you don’t have it yet.

  To verify the selectors:

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.ruleSelector}'
  {"matchLabels":{"release":"prometheus"}}

  $ kubectl get prometheus -n monitoring -o jsonpath='{.items[0].spec.serviceMonitorSelector}'
  {"matchLabels":{"release":"prometheus"}}


• To learn more about how Prometheus monitoring works with KubeDB, see the overview here.

• For dashboards and visualisation, see Grafana Dashboard for Cassandra.

Note: YAML files used in this tutorial are stored in docs/examples/cassandra folder in GitHub repository kubedb/docs.

Overview

• KubeDB deploys Cassandra with the JMX Exporter-based exporter sidecar container, which scrapes the Cassandra JVM’s JMX metrics and exposes them as Prometheus metrics on port 8080.
• Stats Service (named {cassandra-name}-stats) is created automatically by KubeDB and fronts the exporter’s metrics endpoint on port 56790, which is proxied to the exporter’s actual listening port 8080 inside the pod.
• ServiceMonitor (named {cassandra-name}-stats) is created automatically by KubeDB and tells Prometheus to scrape the exporter every 10 seconds.
• PrometheusRule is created by the cassandra-alerts chart and contains all Cassandra alert definitions grouped by concern: database health and provisioner.
• Prometheus Operator evaluates every rule expression every 30 seconds and fires matching alerts to AlertManager.
• AlertManager groups, inhibits, and silences alerts, then routes them to configured receivers (Slack, email, PagerDuty, webhook, etc.).

Deploy Cassandra with Monitoring Enabled

At first, let’s deploy a Cassandra cluster with monitoring enabled. Below is the Cassandra object we are going to create.

apiVersion: kubedb.com/v1alpha2
kind: Cassandra
metadata:
  name: cas-alert-demo
  namespace: demo
spec:
  version: 5.0.3
  topology:
    rack:
      - name: r0
        replicas: 2
        storage:
          accessModes:
            - ReadWriteOnce
          resources:
            requests:
              storage: 1Gi
        storageType: Durable
  deletionPolicy: WipeOut
  monitor:
    agent: "prometheus.io/operator"
    prometheus:
      serviceMonitor:
        labels:
          release: prometheus
        interval: 10s

Here,

• spec.topology.rack[].replicas: 2 — Cassandra requires more than one replica per rack for its admission webhook to accept the object, so this demo uses the smallest allowed topology (1 rack, 2 replicas).
• spec.monitor.agent: prometheus.io/operator tells KubeDB to create a ServiceMonitor resource managed by the Prometheus operator.
• spec.monitor.prometheus.serviceMonitor.labels.release: prometheus adds the release: prometheus label to the created ServiceMonitor, matching the Prometheus serviceMonitorSelector so the target is discovered automatically.

Let’s create the Cassandra resource.

$ kubectl apply -f https://github.com/kubedb/docs/raw/v2026.6.19/docs/examples/cassandra/monitoring/cas-alert-demo.yaml
cassandra.kubedb.com/cas-alert-demo created

Now, wait for the database to go into Ready state.

$ kubectl get cassandra -n demo cas-alert-demo
NAME             VERSION   STATUS   AGE
cas-alert-demo   5.0.3     Ready    2m

KubeDB creates a dedicated stats service with the -stats suffix for monitoring.

$ kubectl get svc -n demo --selector="app.kubernetes.io/instance=cas-alert-demo"
NAME                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                               AGE
cas-alert-demo                ClusterIP   10.43.49.40     <none>        9042/TCP,7000/TCP,7199/TCP,7001/TCP   2m
cas-alert-demo-rack-r0-pods   ClusterIP   None            <none>        9042/TCP,7000/TCP,7199/TCP,7001/TCP   2m
cas-alert-demo-stats          ClusterIP   10.43.160.146   <none>        56790/TCP                             2m

KubeDB also creates a ServiceMonitor that tells Prometheus where to scrape.

$ kubectl get servicemonitor -n demo
NAME                   AGE
cas-alert-demo-stats   2m

Verify that the ServiceMonitor carries the release: prometheus label so Prometheus discovers it.

$ kubectl get servicemonitor -n demo cas-alert-demo-stats \
    -o jsonpath='{.metadata.labels.release}'
prometheus

Step 1 — Install cassandra-alerts

The cassandra-alerts chart creates a PrometheusRule resource containing all Cassandra alert definitions grouped by concern: database health and provisioner.

Why the Helm release name matters

The chart derives the PromQL job/instance scoping (and the PrometheusRule name) from the Helm release name, not from a values field — so the release name must match the Cassandra object’s name (cas-alert-demo) for the rules to be correctly scoped to this instance.

The chart’s default label is release: kube-prometheus-stack, so we must also override it at install time to match the Prometheus ruleSelector.

Note: The chart’s default values leave form.alert.groups.database.rules.cassandraDown.val unset, which renders an incomplete PromQL expression (... > ) that the PrometheusRule admission webhook rejects. Explicitly set it to 0 at install time — the CassandraDown expression counts down instances and fires whenever that count is greater than 0.

Install

$ helm upgrade -i cas-alert-demo oci://ghcr.io/appscode-charts/cassandra-alerts \
    -n demo \
    --create-namespace \
    --version=v2026.7.14 \
    --set form.alert.labels.release=prometheus \
    --set form.alert.groups.database.rules.cassandraDown.val=0

Verify the PrometheusRule is created

$ kubectl get prometheusrule -n demo
NAME             AGE
cas-alert-demo   30s

Confirm the release: prometheus label is present.

$ kubectl get prometheusrule -n demo cas-alert-demo \
    -o jsonpath='{.metadata.labels.release}'
prometheus

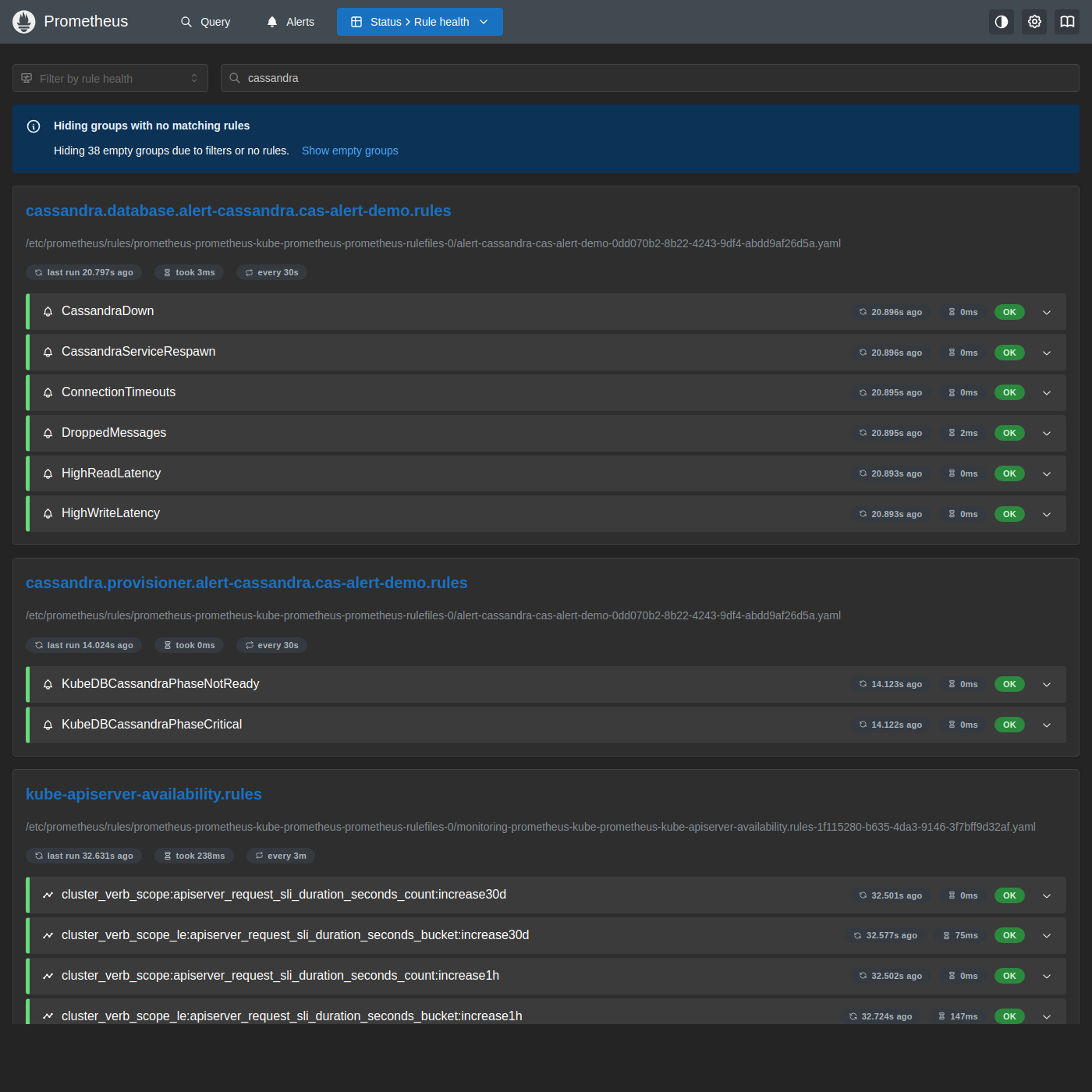

Confirm Prometheus loaded the rules

Port-forward the Prometheus UI and open the Status → Rule health page.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/rules?search=cassandra.

Both the cassandra.database.demo.cas-alert-demo.rules and cassandra.provisioner.demo.cas-alert-demo.rules groups are visible with all rules showing OK, confirming that Prometheus has loaded and is evaluating the Cassandra alert definitions every 30 seconds.

Verify End-to-End

1. Check the exporter is running

The exporter sidecar inside the Cassandra pod scrapes JMX and serves metrics at :8080/metrics. A metric named java:lang:runtime:uptime confirms the exporter can reach the Cassandra JVM.

$ kubectl exec -n demo cas-alert-demo-rack-r0-0 -c cassandra -- \
    curl -s localhost:8080/metrics | grep 'name="java:lang:runtime:uptime"'
cassandra_stats{cluster="Test Cluster",datacenter="dc1",keyspace="",table="",name="java:lang:runtime:uptime",} 458763.0

The exporter container’s own image ships neither curl nor wget, so the check above runs from the cassandra container instead — both containers share the pod’s network namespace, so localhost:8080 reaches the exporter’s HTTP server either way.

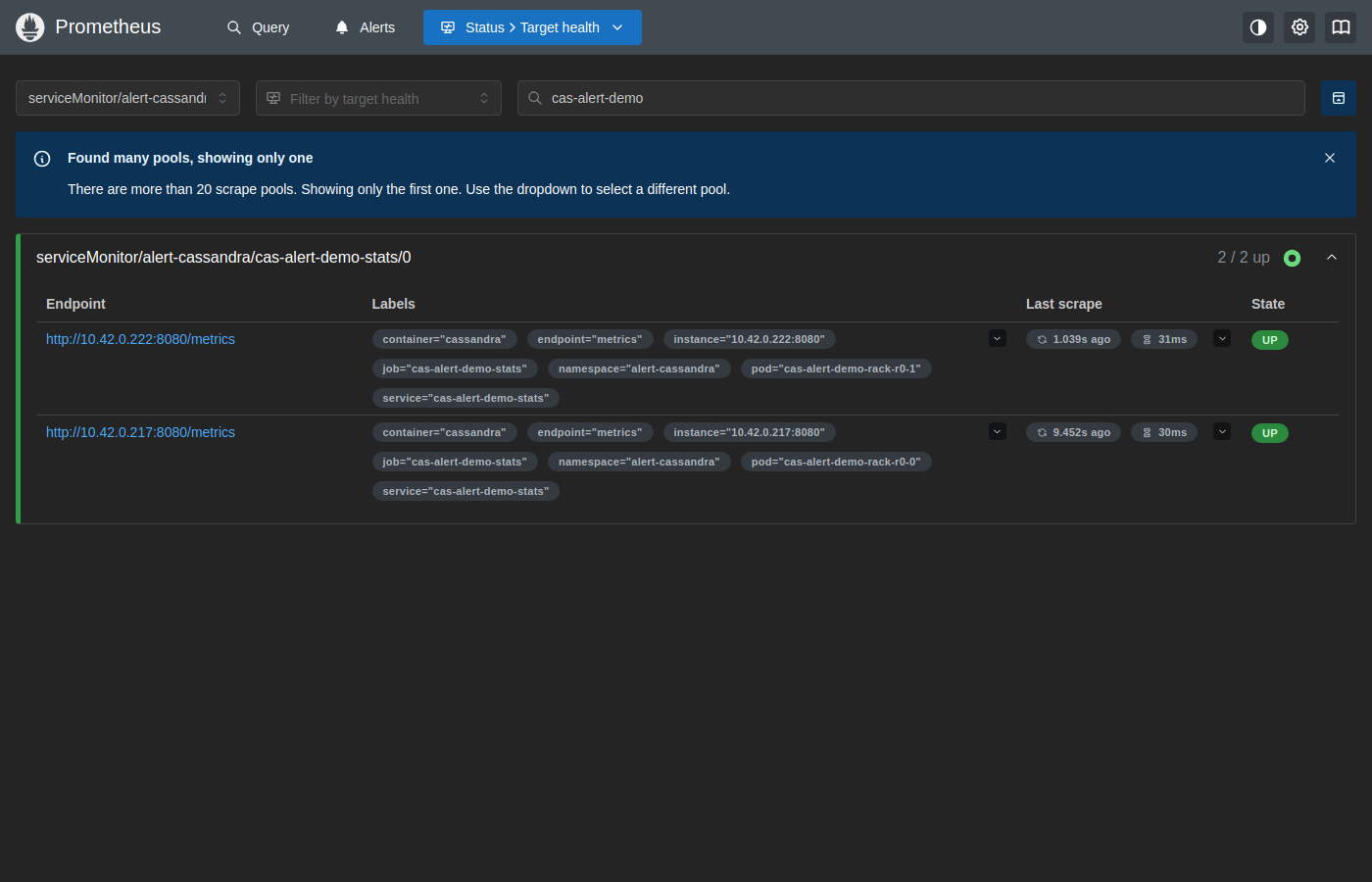

2. Check the Prometheus target is UP

Open http://localhost:9090/targets?search=cas-alert-demo.

The target serviceMonitor/demo/cas-alert-demo-stats/0 shows 2 / 2 up, confirming metrics are being scraped from both cas-alert-demo-rack-r0-0 and cas-alert-demo-rack-r0-1 in the demo namespace.

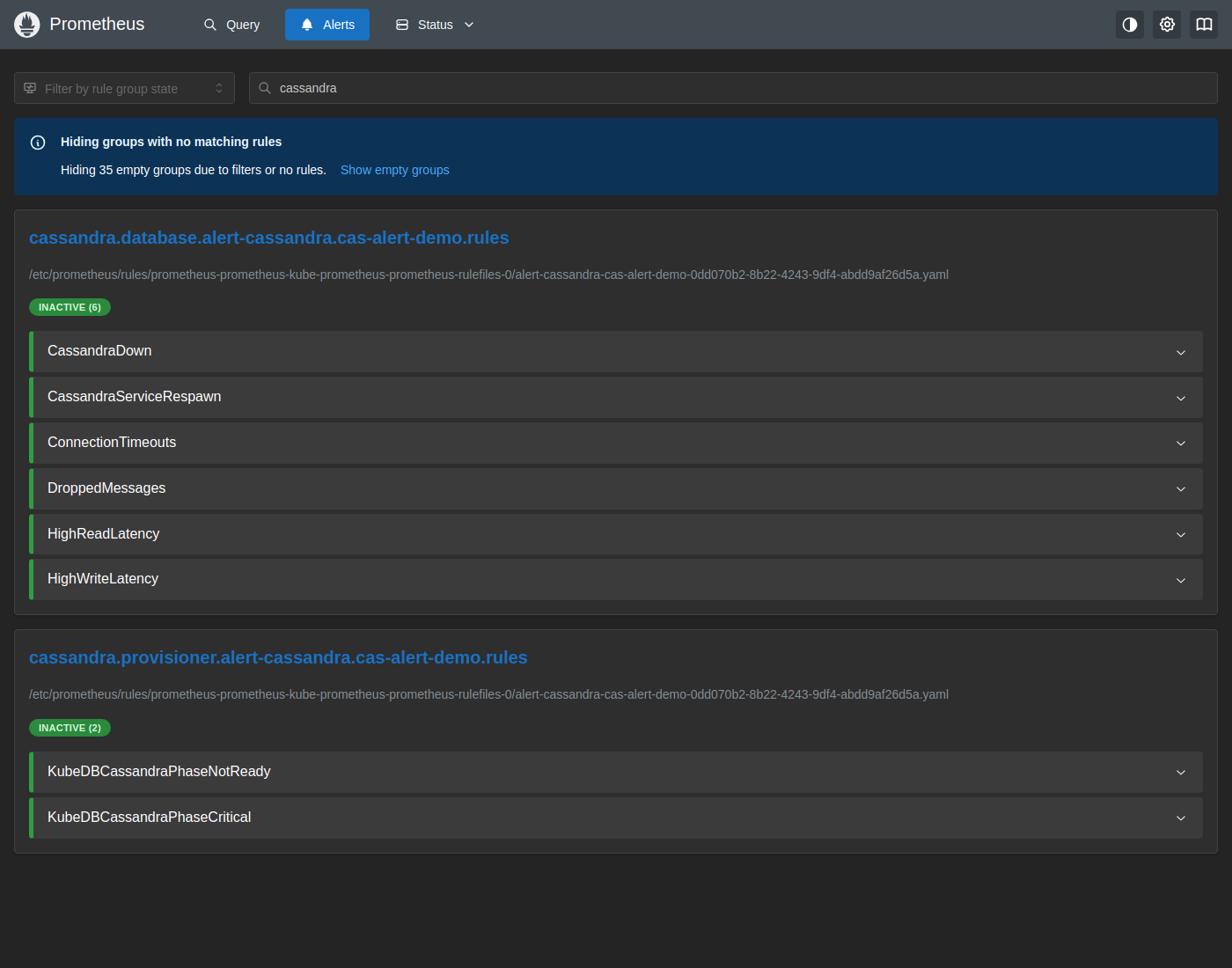

3. Confirm all Cassandra alerts are inactive

Open http://localhost:9090/alerts?search=cassandra to see the Cassandra alert groups.

All 6 rules in the cassandra.database group and both rules in the cassandra.provisioner group show INACTIVE, meaning the cluster is healthy and no thresholds are breached.

4. Check AlertManager

Port-forward AlertManager to view any currently firing alerts.

$ kubectl port-forward -n monitoring \
    svc/prometheus-kube-prometheus-alertmanager 9093:9093

Open http://localhost:9093. With a healthy Cassandra cluster, no alerts for cas-alert-demo will be listed here.

Simulating a Firing Alert

The previous section confirmed that all alerts are INACTIVE while the cluster is healthy. This section walks through deliberately triggering the CassandraDown critical alert so you can observe the full alert lifecycle — from firing in Prometheus through to the AlertManager dashboard — and then resolve it.

1. Stop the metrics endpoint

Unlike some other KubeDB charts, CassandraDown is not driven by a custom exporter-reported gauge — it is built directly on Prometheus’s own scrape-health metric, up{job="cas-alert-demo-stats"}. That metric only goes to 0 when Prometheus can no longer reach the scrape target’s HTTP endpoint at all.

On this build, the exporter’s HTTP server (the process actually scraped by Prometheus on port 8080) runs inside the exporter container — killing the cassandra container alone leaves the exporter’s HTTP endpoint reachable (Prometheus would keep scraping it successfully), so up would stay 1 and CassandraDown would never fire. To reproduce a real scrape failure, stop the exporter container’s process instead:

$ kubectl exec -n demo cas-alert-demo-rack-r0-1 -c exporter -- kill 1

Kubernetes restarts the crashed exporter container in the background. The restart is quick, so the outage window can be short — if the alert resolves before you finish inspecting it, repeat the kill 1 command a few times in a row; Kubernetes’ crash-loop backoff will keep the container down for a longer stretch on subsequent attempts, giving you a wider window to observe the firing state.

Wait 30–60 seconds for the next Prometheus scrape cycle (configured at 10s) and rule-evaluation cycle (30s) to register the failure.

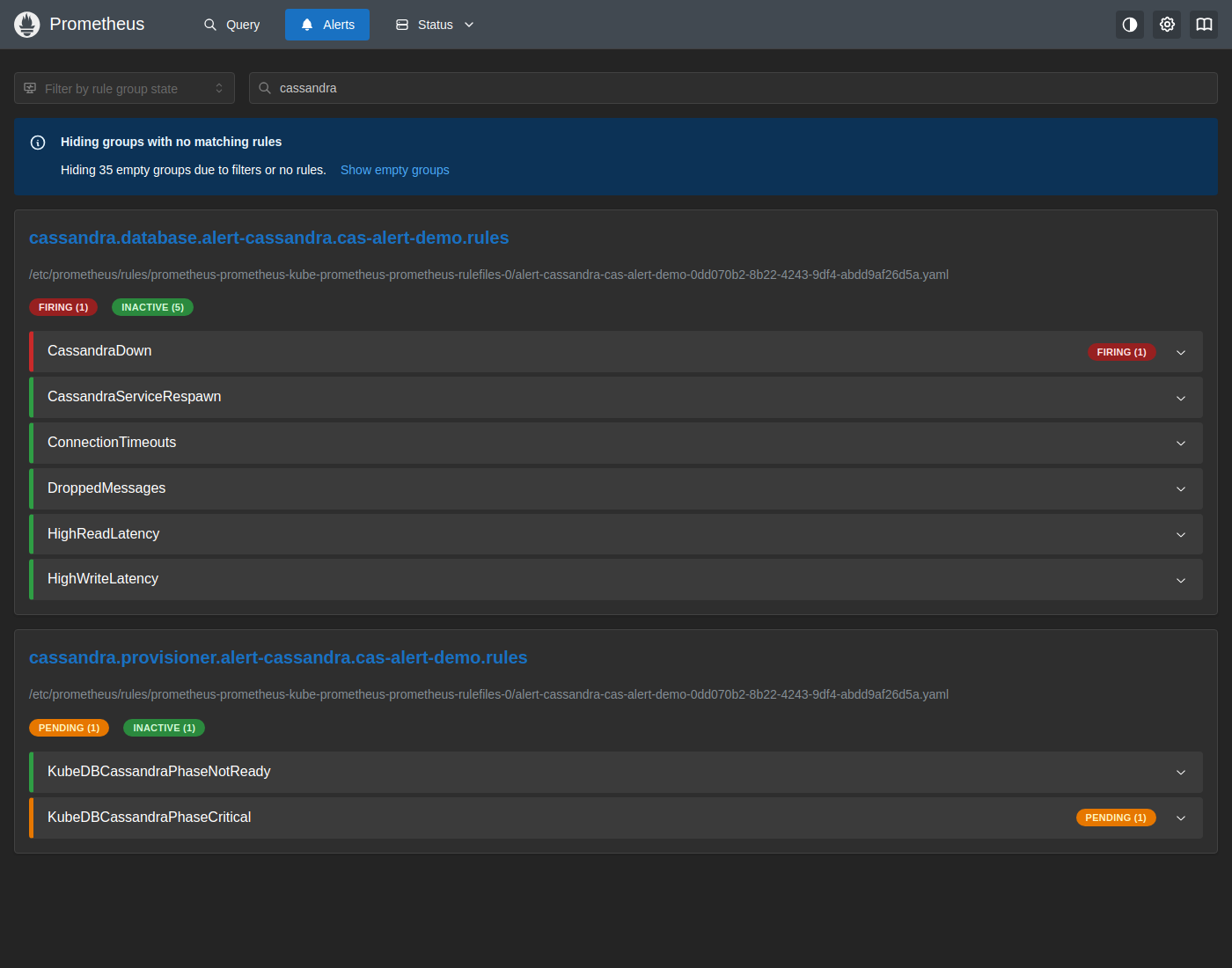

2. Watch the alert fire in Prometheus

Open http://localhost:9090/alerts?search=cassandra.

Because CassandraDown has for: 0m (instant), it moves directly from INACTIVE to FIRING within one evaluation cycle. Note that KubeDBCassandraPhaseCritical also enters PENDING shortly after, since the KubeDB operator observes the degraded rack.

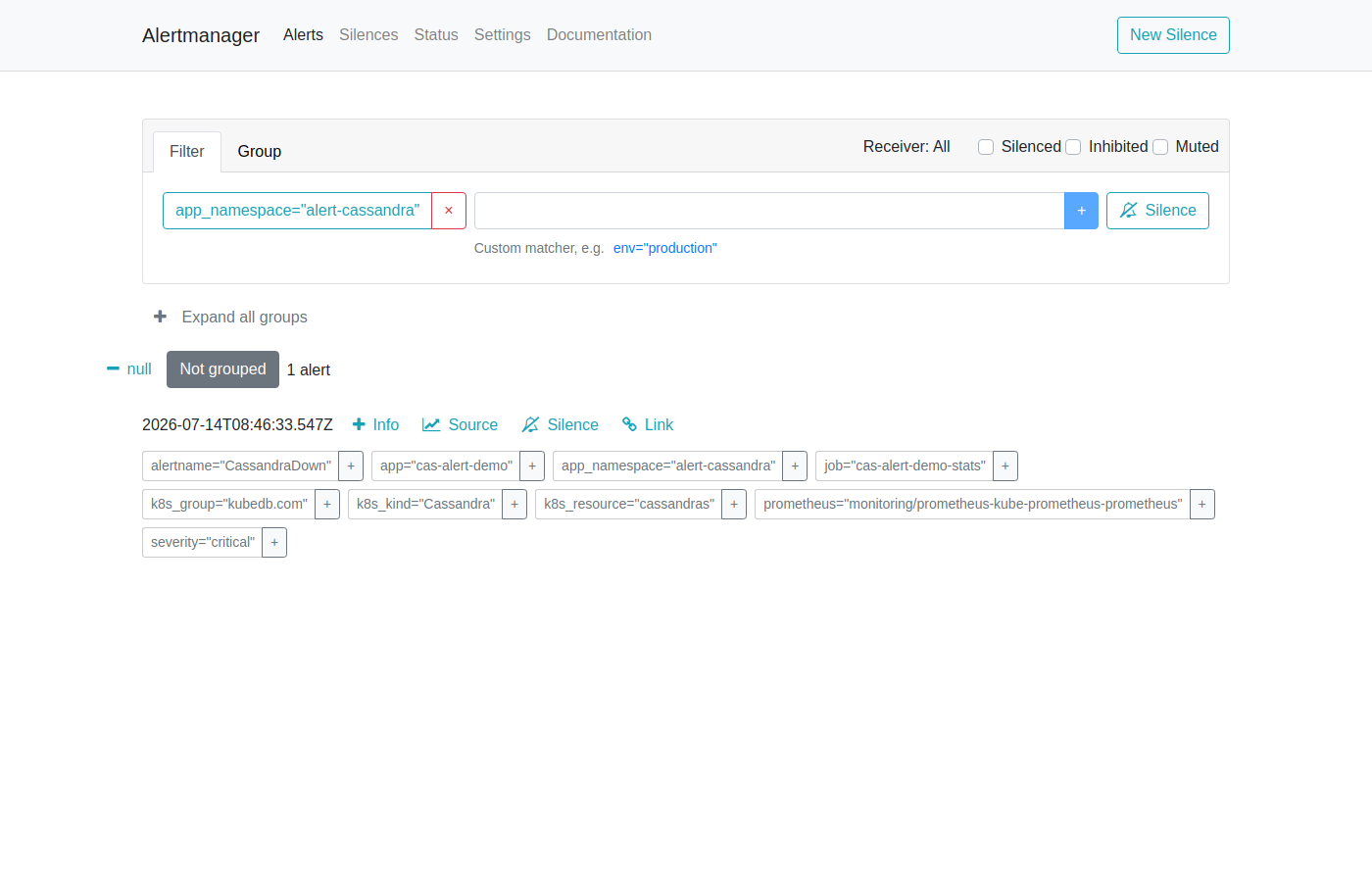

3. Check the AlertManager dashboard

Open http://localhost:9093.

AlertManager shows the CassandraDown alert. The alert card displays labels including:

• alertname: CassandraDown
• severity: critical
• app: cas-alert-demo, app_namespace: demo
• job: cas-alert-demo-stats

Note: this chart’s alert labels use app_namespace rather than a plain namespace label — filter or group on app_namespace when searching for these alerts in AlertManager.

AlertManager routes this alert to every receiver configured in your alertmanagerConfig (Slack, email, PagerDuty, webhook, etc.) based on your routing tree. If no receiver is configured, the alert is visible here but silently dropped.

4. Restore Cassandra

Delete the pod so KubeDB recreates it cleanly.

$ kubectl delete pod -n demo cas-alert-demo-rack-r0-1

Once the exporter’s /metrics endpoint is reachable again, Prometheus marks the alert INACTIVE and AlertManager sends a resolved notification to all receivers.

Alert Reference

All alerts are scoped to the cas-alert-demo instance in the demo namespace via the PromQL label filters job="cas-alert-demo-stats" and app_namespace="demo".

Database Group

Fired based on live metrics from the Cassandra JMX exporter.

Provisioner Group

Monitors the KubeDB operator’s view of the Cassandra resource phase.

Customising Alerts

To override thresholds or disable specific alert groups, create a custom values file and upgrade the chart.

# custom-alerts.yaml
form:
  alert:
    labels:
      release: prometheus
    groups:
      database:
        enabled: warning
        rules:
          cassandraDown:
            enabled: true
            duration: "0m"
            val: 0
          cassandraHighReadLatency:
            enabled: true
            duration: "1m"
            val: 15000      # allow up to 15ms 99th-percentile read latency
            severity: warning
      provisioner:
        enabled: "none"     # disable all provisioner alerts

$ helm upgrade cas-alert-demo oci://ghcr.io/appscode-charts/cassandra-alerts \
    -n demo \
    --version=v2026.7.14 \
    -f custom-alerts.yaml

Cleaning up

To remove all resources created in this tutorial, run the following commands.

# Remove the cassandra-alerts release
$ helm uninstall cas-alert-demo -n demo

# Remove the Cassandra instance
$ kubectl delete cassandra -n demo cas-alert-demo

# Delete namespace
$ kubectl delete ns demo

Next Steps

• Monitor your Cassandra cluster with KubeDB using builtin Prometheus.
• Monitor your Cassandra cluster with KubeDB using Prometheus operator.
• Visualise Cassandra metrics with Grafana Dashboard.
• Learn how to use KubeDB to run a Apache Cassandra cluster here.
• Want to hack on KubeDB? Check our contribution guidelines.
